Part Number

Search

87589-7

Description
HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,DETENT,BLACK
CategoryThe connector    The connector
File Size229KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

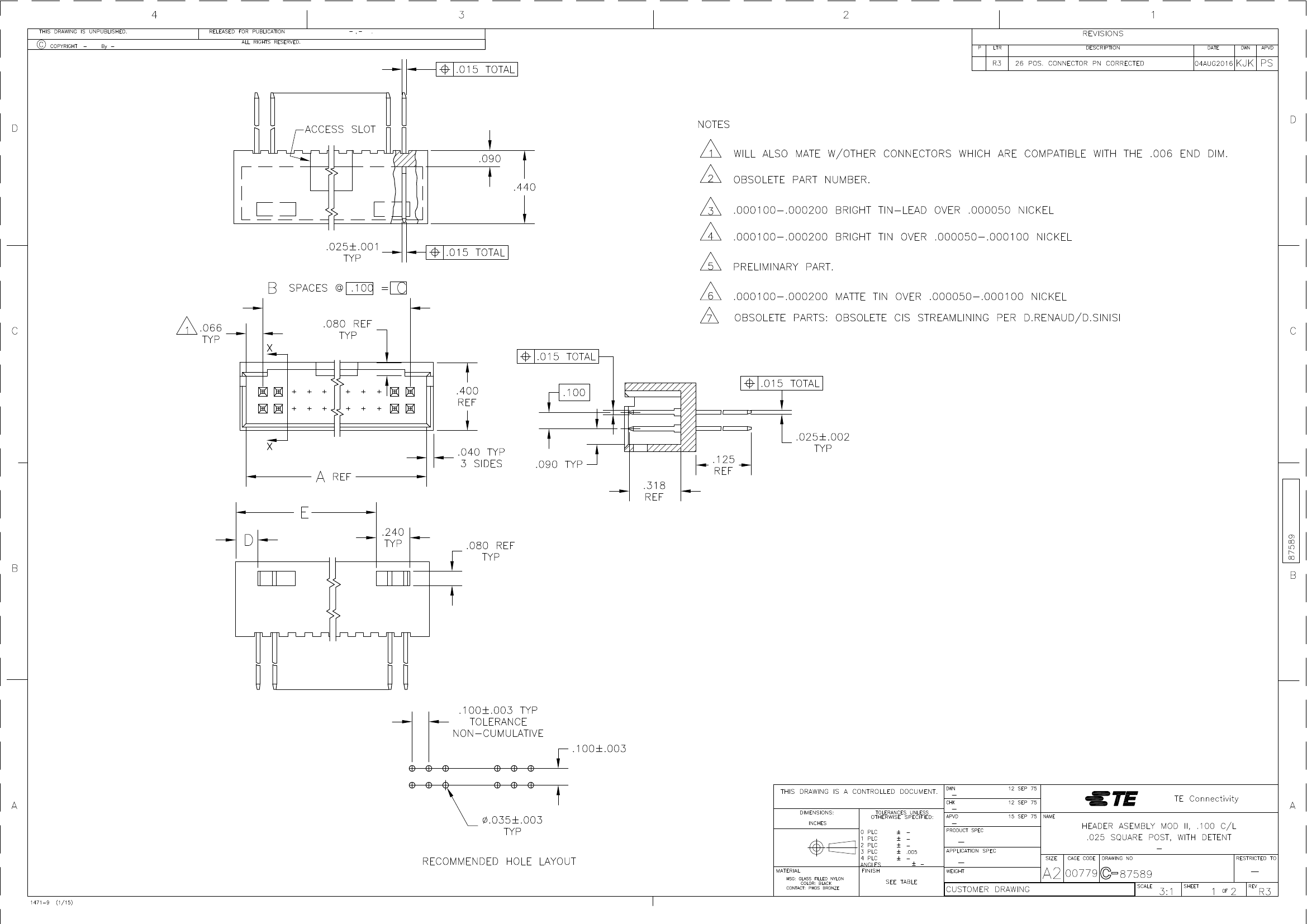

87589-7 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,DETENT,BLACK

87589-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresWITHOUT MOUNTING EARS
body length1.212 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage750VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number87589
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1DETENT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness100u inch
polarization keyDUAL POLARIZED
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts22

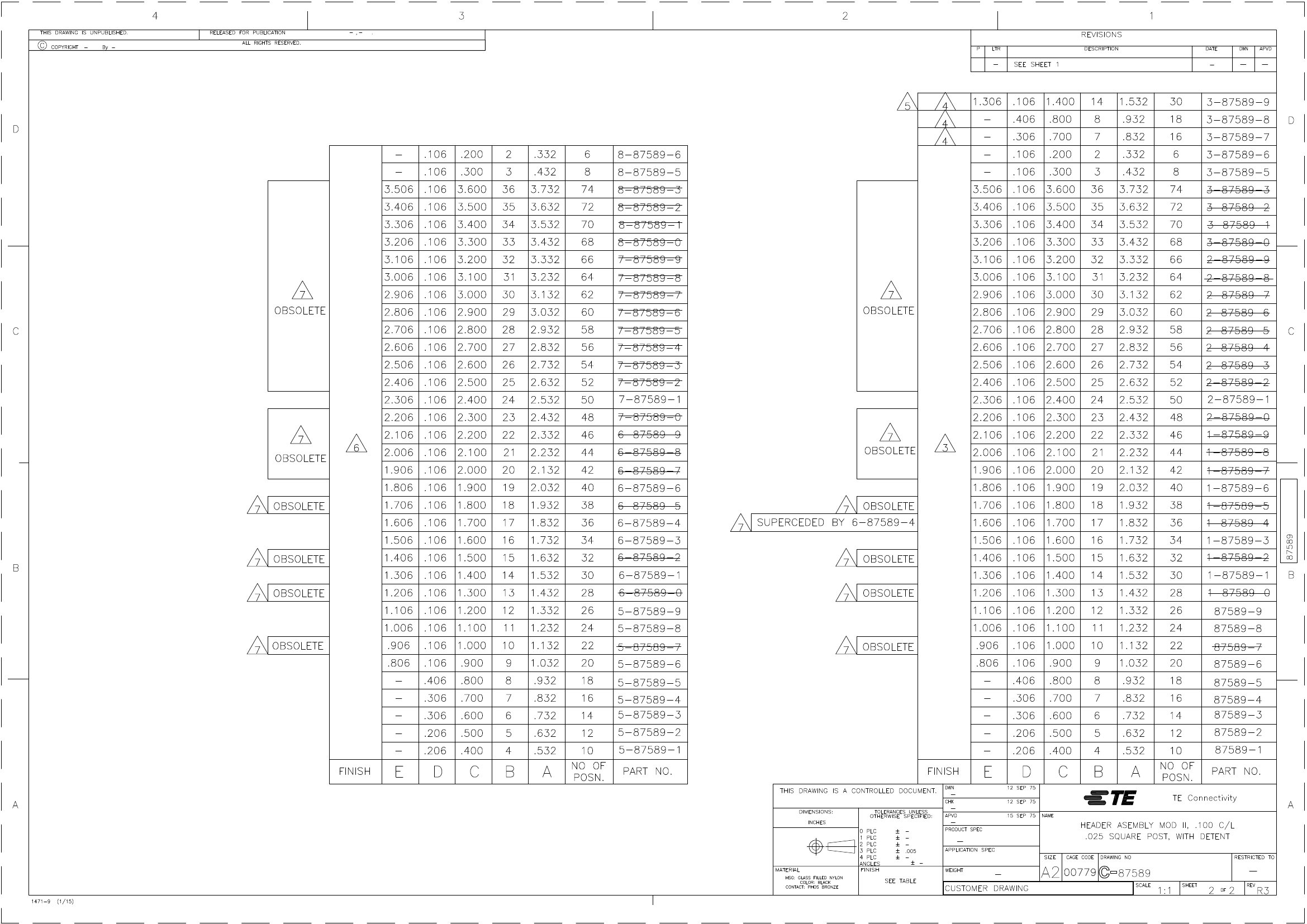

87589-7 Related Products

87589-7 3-87589-9 5-87589-7
Description HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,DETENT,BLACK 30 MODII HDR DRST SHRD .100CL CONNECTOR, 22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Maker TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code unknown unknown unknown
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN-PB ON NI TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL
Contact point gender MALE MALE MALE
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 2 2 2
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 22 30 22
Manufacturer's serial number 87589 - 87589
Contact completed and terminated - TIN (200) OVER NICKEL MATTE TIN (200) OVER NICKEL
DIN compliance - NO NO
Filter function - NO NO
IEC compliance - NO NO
JESD-609 code - e3 e3
MIL compliance - NO NO
Mixed contacts - NO NO
Options - GENERAL PURPOSE GENERAL PURPOSE
Base Number Matches - 1 1
