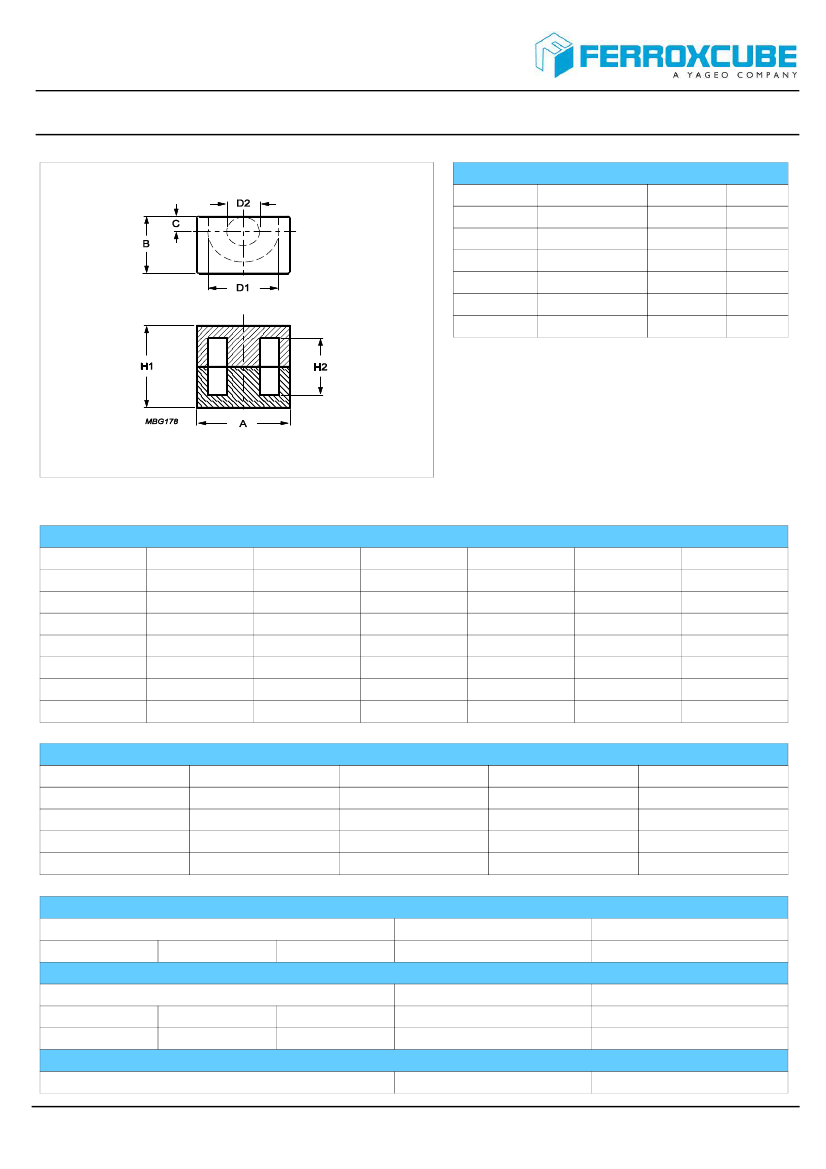

CSH-EP10-2S-8P: DescriptionEP cores and accessories; File Size72KB，2 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet Compare View All

CSH-EP10-2S-8P Overview

EP cores and accessories

Preview

Download Datasheet

View All

Product specifications

Core

EP10

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

Amin

m

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

EP10

Value

1.7

215

19.3

11.3

8.55

≈ 2.8

Unit

mm⁻¹

mm³

mm

mm²

g/set

Dimensions for product: EP10

Symbol

A

B

C

D1

D2

H1

H2

Nom

11.50

7.60

1.80

9.40

3.30

10.20

7.40

Tol +

0.30

0.20

0.13

0.20

0.15

0.20

Tol -

0.30

0.20

0.13

0.20

0.15

0.20

Max

11.80

7.80

1.93

9.60

3.45

10.40

7.60

Min

11.20

7.40

1.67

9.20

3.15

10.00

7.20

Unit

mm

Inductance factor

Material

3C91

3C96

3F36

3F46

Value

1200

1000

800

460

Tol +

25%

Tol -

25%

Unit

nH/turns²

Power loss: 3C91

Measuring conditions

100 kHz

200 mT

60 ºC

Power loss: 3C96

Measuring conditions

100 kHz

400 kHz

200 mT

50 mT

100 ºC

Power loss: 3F36

Measuring conditions

Max

Unit

Max

0.097

0.039

Unit

W/set

Max

0.110

Unit

W/set

2016

CSH-EP10-2S-8P Related Products

	CSH-EP10-2S-8P	EP10-3C96	EP10-3F46	EP10-3F36
Description	EP cores and accessories	FERRITE CORE 2PC SET	EP AND EPX CORES 2PC SET	EP AND EPX CORES 2PC SET
Kernel type	-	EP	EP	EP
Material	-	3C96	3F46	3F36
surface	-	Uncoated	Uncoated	Uncoated
Supplier device packaging	-	EP 10	EP 10	EP 10
high	-	10.20mm	10.20mm	10.20mm
length	-	11.50mm	11.50mm	11.50mm
width	-	7.60mm	7.60mm	7.60mm
