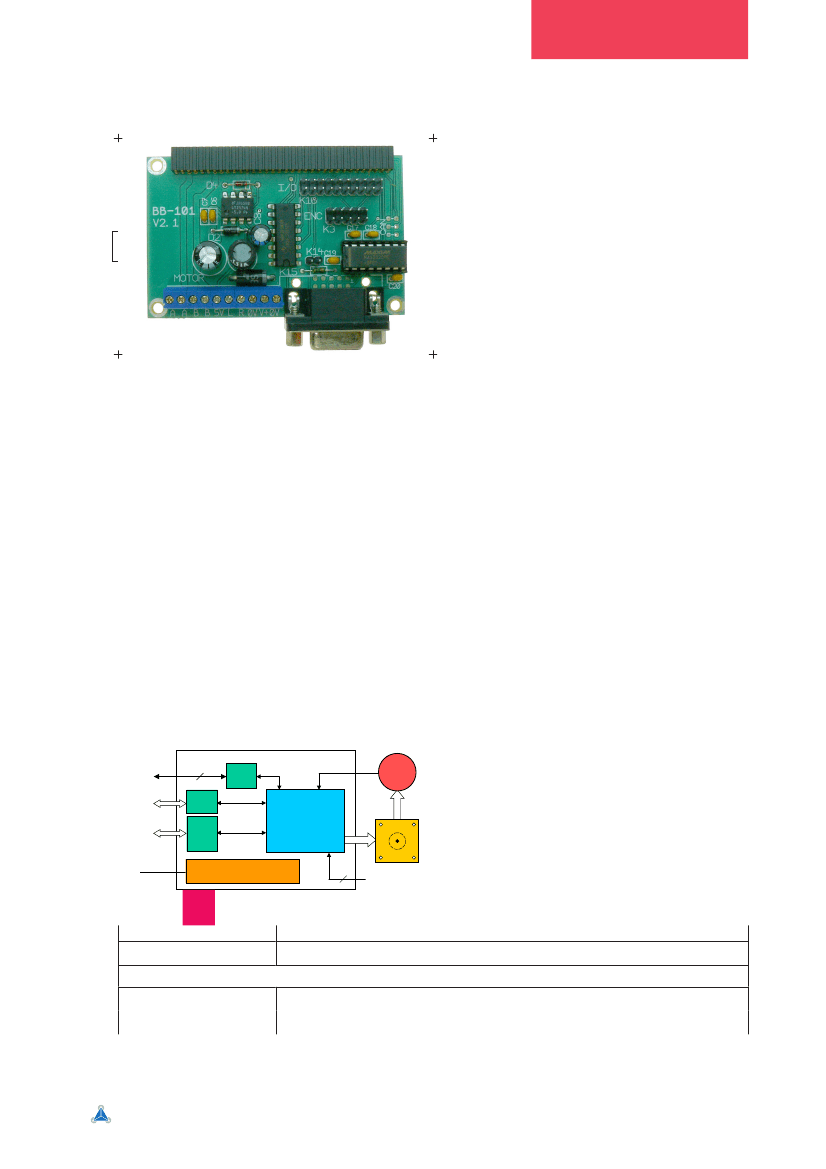

BAS E B O A R D S F O R S T E P P ER MO D UL E S

M O D ULES

B B-

1 01

Baseboard

for TMCM-101

10 m m

M A IN CH A R AC T ER IS T IC S

INFO

The BB-101 is designed for the TMCM-101 single axis 2-phase

stepper motor controller and driver module with encoder inter-

face. This encoder feedback makes it an optimum solution for

high-reliability closed loop drives. The BB-101 gives easy access

to all important signals of the TMCM-101. Motor connection,

power supply and limit switches are accessible via screw termi-

nals while encoder connection and the I/Os of the TMCM-101

have 2 row RM2.54 industry standard connectors. The integrated

switch-mode regulator provides the required 5V supply voltage

for the TMCM-101. Thus only one power supply is required. The

integrated level

ELECTRICAL

DATA

• 15V to 28V DC power supply

• up to 3A coil current RMS (4.2A peak)

• RS-232 (optionally RS-485, CAN)

• 2x limit switches,

all 16 general purpose analog or digital

I/Os of the TMCM-101 supported

• local input

• 1 slot for TMCM-101 closed loop motion

control and driver module, 3A / 28V

• up to 64 times adjustable

microstep resolution

• integrated 5V power supply

• stallGuard™ for reference search

• screw terminal connectors for power supply,

motor and reference switch connection

• RoHS compliant

• size: 80 x 60 mm²

with TMCM-101 plugged in:

80 x 130 mm²

INTERFACE

FEATURES

OTHER

BB-101

I/Os

ABN

Encoder

CAN

RS-232

RS-485

TMCM-101

Step

Motor

15..28.5V DC

5V Power Supply

REF-Switches

ORDER CODE

D ESC RIP TIO N

BB-101 (-option)

OPTIONS

Baseboard for TMCM-101

232

485

RS-232 / CAN interface

RS-485 / CAN interface

www.trinamic.com

– for detailed information and datasheets
