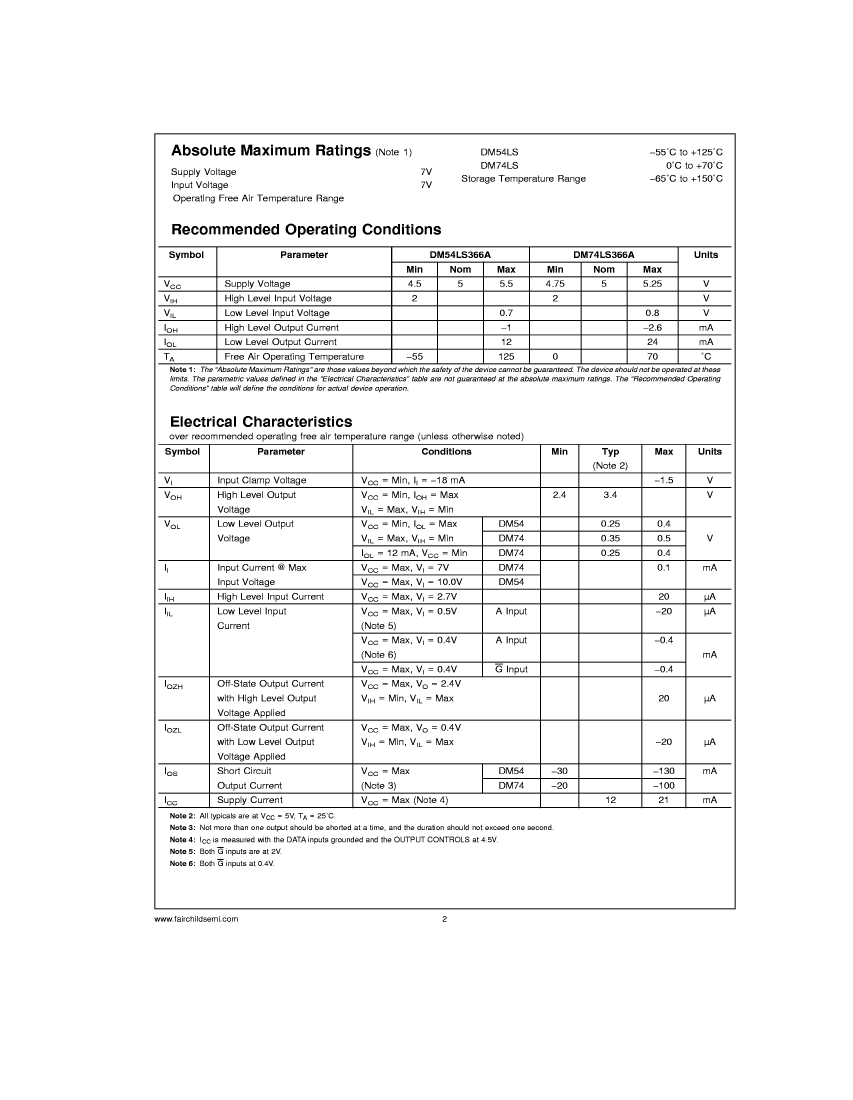

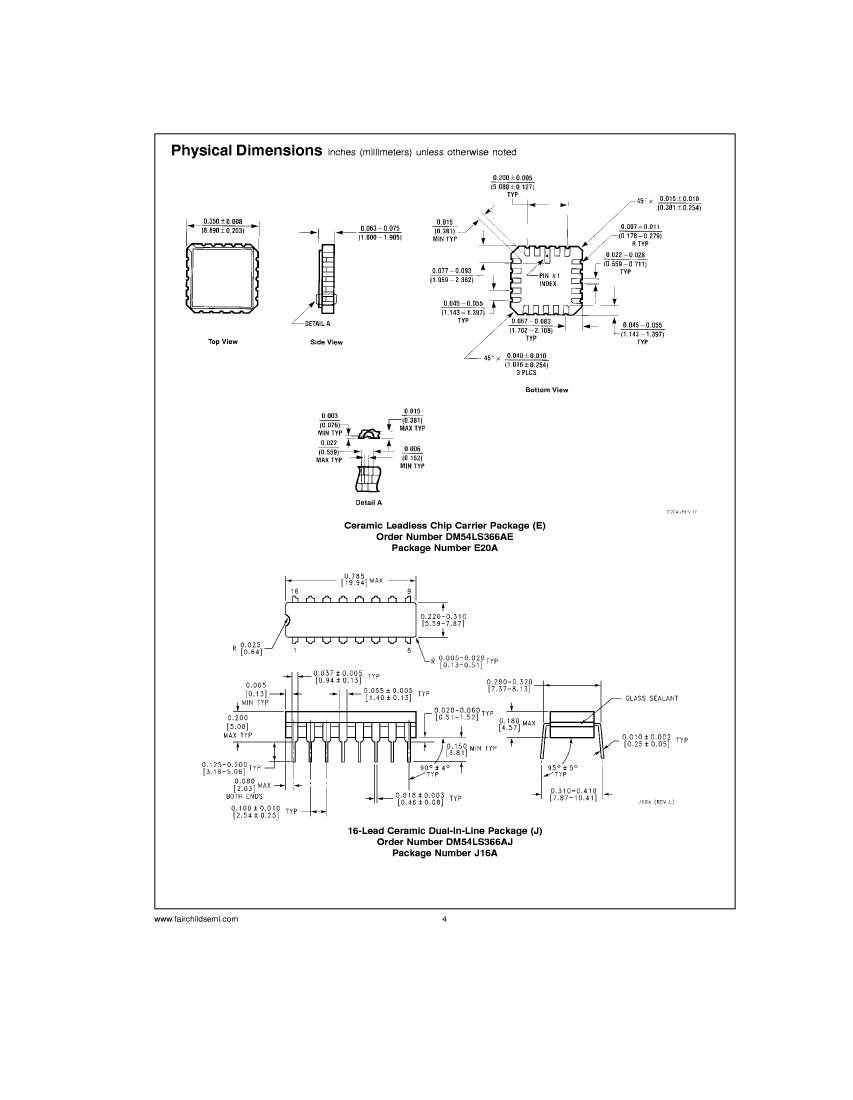

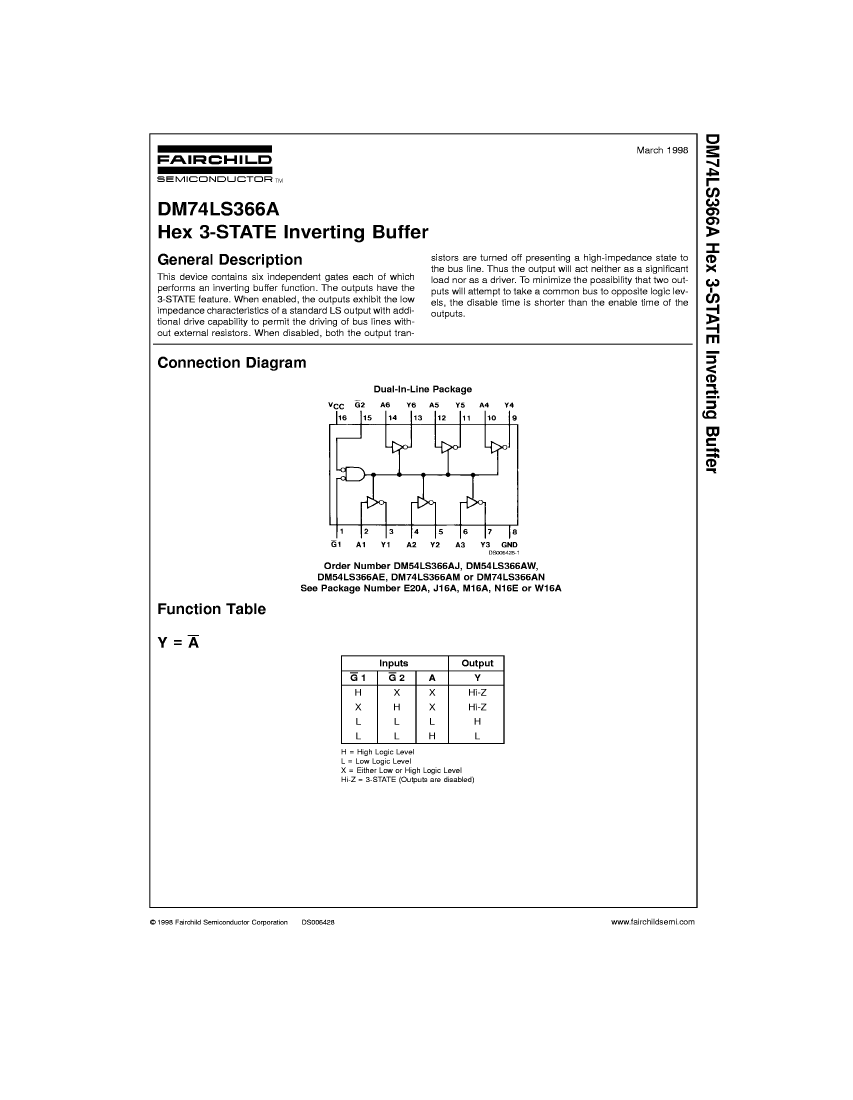

Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

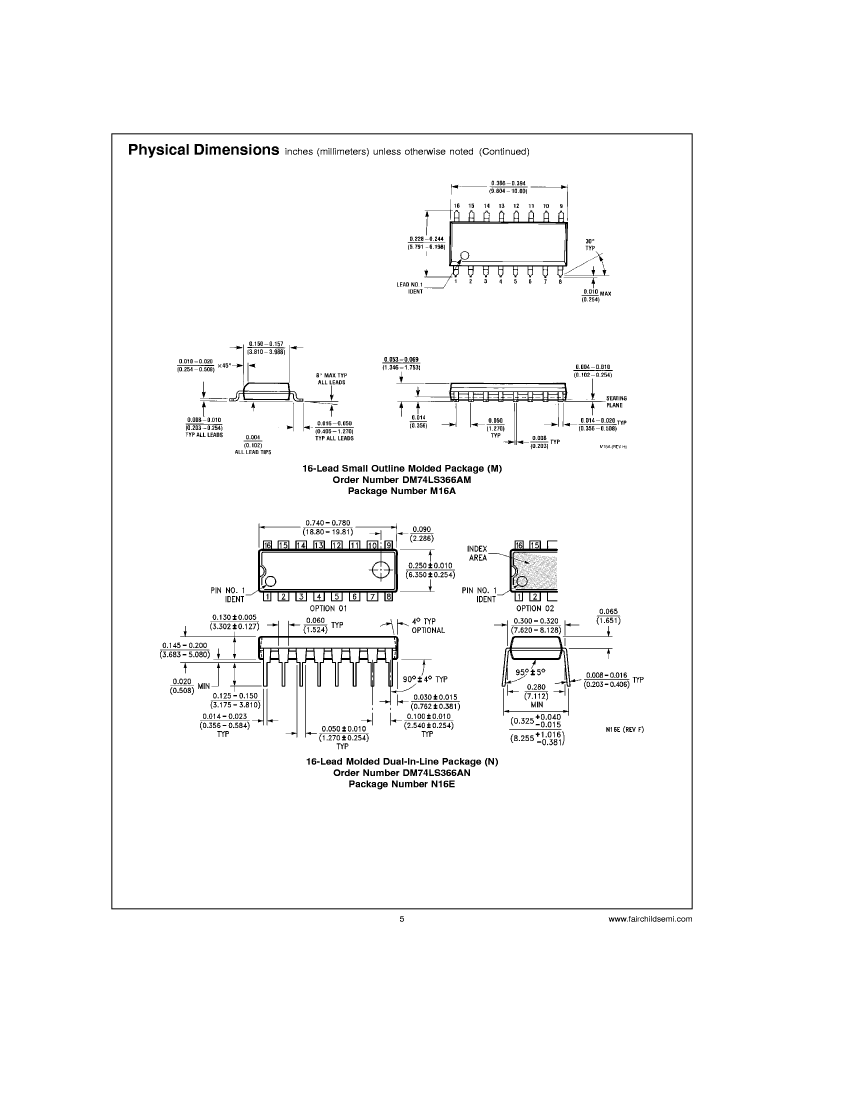

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | WITH DUAL OUTPUT ENABLE |
| Control type | ENABLE LOW |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.012 A |
| Number of digits | 6 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 21 mA |
| Prop。Delay @ Nom-Sup | 22 ns |
| propagation delay (tpd) | 22 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.89 mm |
| DM54LS366AE | DM74LS366AN | DM54LS366AJ | DM54LS366AW | DM74LS366AM | |
|---|---|---|---|---|---|
| Description | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CDIP16, CERAMIC, DIP-16 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, CDFP16, CERPACK-16 | Bus Driver, LS Series, 1-Func, 6-Bit, Inverted Output, TTL, PDSO16, PLASTIC, SOIC-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | QLCC | DIP | DIP | DFP | SOIC |
| package instruction | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | SOP, SOP16,.25 |
| Contacts | 20 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Maker | Fairchild | - | Fairchild | Fairchild | Fairchild |
| Other features | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | WITH DUAL OUTPUT ENABLE | - | WITH DUAL OUTPUT ENABLE |
| Control type | ENABLE LOW | ENABLE LOW | ENABLE LOW | - | ENABLE LOW |
| series | LS | LS | LS | - | LS |
| JESD-30 code | S-CQCC-N20 | R-PDIP-T16 | R-GDIP-T16 | - | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 | - | e0 |
| length | 8.89 mm | 19.305 mm | 19.43 mm | - | 9.9 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | - | BUS DRIVER |
| MaximumI(ol) | 0.012 A | 0.024 A | 0.012 A | - | 0.024 A |
| Number of digits | 6 | 6 | 6 | - | 6 |
| Number of functions | 1 | 1 | 1 | - | 1 |
| Number of ports | 2 | 2 | 2 | - | 2 |
| Number of terminals | 20 | 16 | 16 | - | 16 |
| Maximum operating temperature | 125 °C | 70 °C | 125 °C | - | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | - | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | - | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | - | PLASTIC/EPOXY |
| encapsulated code | QCCN | DIP | DIP | - | SOP |
| Encapsulate equivalent code | LCC20,.35SQ | DIP16,.3 | DIP16,.3 | - | SOP16,.25 |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | IN-LINE | - | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | - | 5 V |
| Maximum supply current (ICC) | 21 mA | 21 mA | 21 mA | - | 21 mA |
| Prop。Delay @ Nom-Sup | 22 ns | 16 ns | 22 ns | - | 16 ns |
| propagation delay (tpd) | 22 ns | 25 ns | 22 ns | - | 25 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum seat height | 1.905 mm | 5.08 mm | 5.08 mm | - | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.25 V | 5.5 V | - | 5.25 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.75 V | 4.5 V | - | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| surface mount | YES | NO | NO | - | YES |
| technology | TTL | TTL | TTL | - | TTL |
| Temperature level | MILITARY | COMMERCIAL | MILITARY | - | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | - | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | - | 1.27 mm |
| Terminal location | QUAD | DUAL | DUAL | - | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| width | 8.89 mm | 7.62 mm | 7.62 mm | - | 3.9 mm |
