DM54S195J/883 datasheet, PDF - EEWORLD Datasheet

DM54S195J/883: DescriptionParallel In Parallel Out, S Series, 4-Bit, Right Direction, True Output, TTL, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size203KB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

DM54S195J/883 Overview

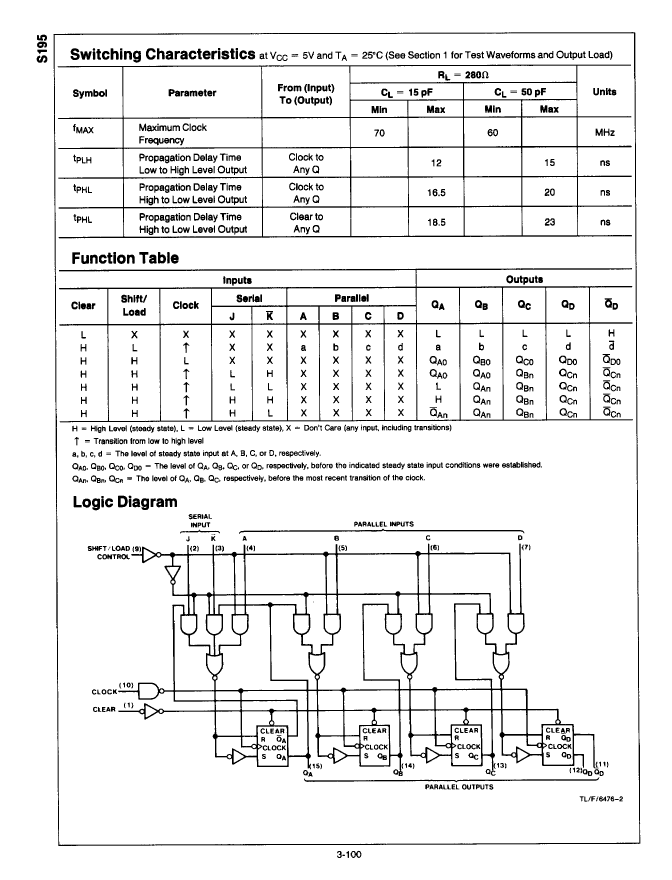

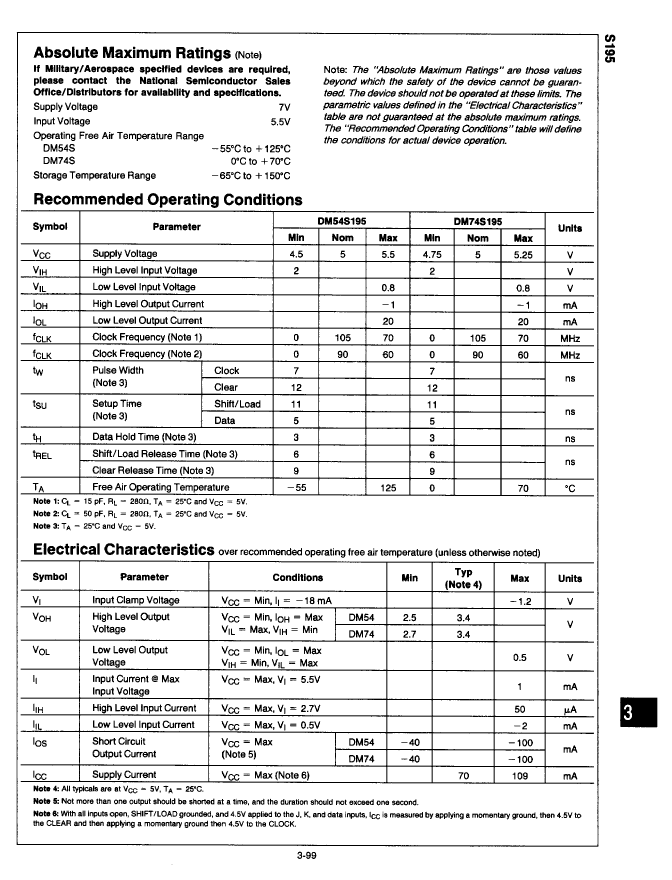

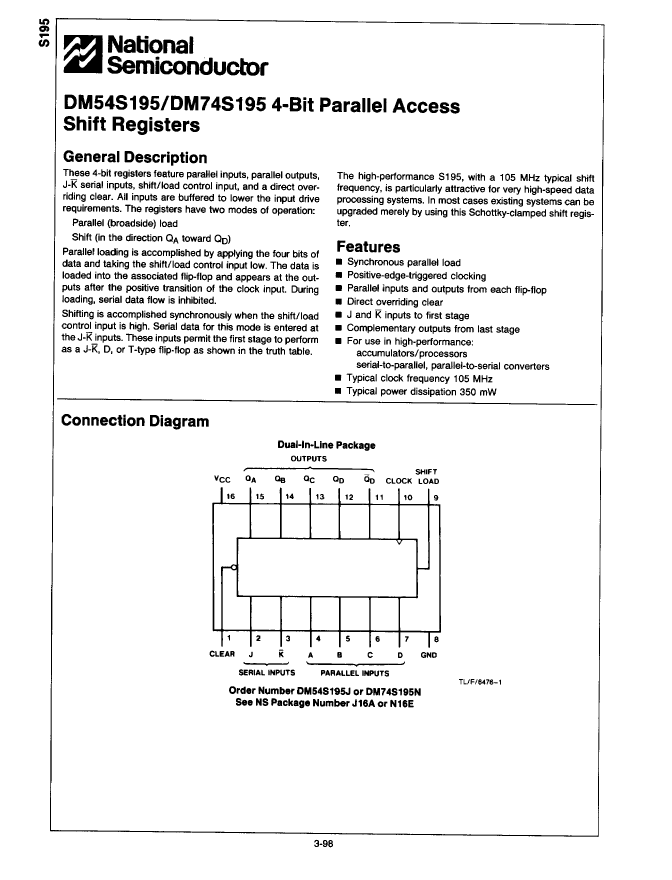

Parallel In Parallel Out, S Series, 4-Bit, Right Direction, True Output, TTL, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	COMPLEMENTARY SERIAL SHIFT RIGHT OUTPUT; J AND KBAR SERIAL INPUT
Counting direction	RIGHT
series	S
JESD-30 code	R-GDIP-T16
length	19.43 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	16.5 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	70 MHz
