152B6NN datasheet, PDF - EEWORLD Datasheet

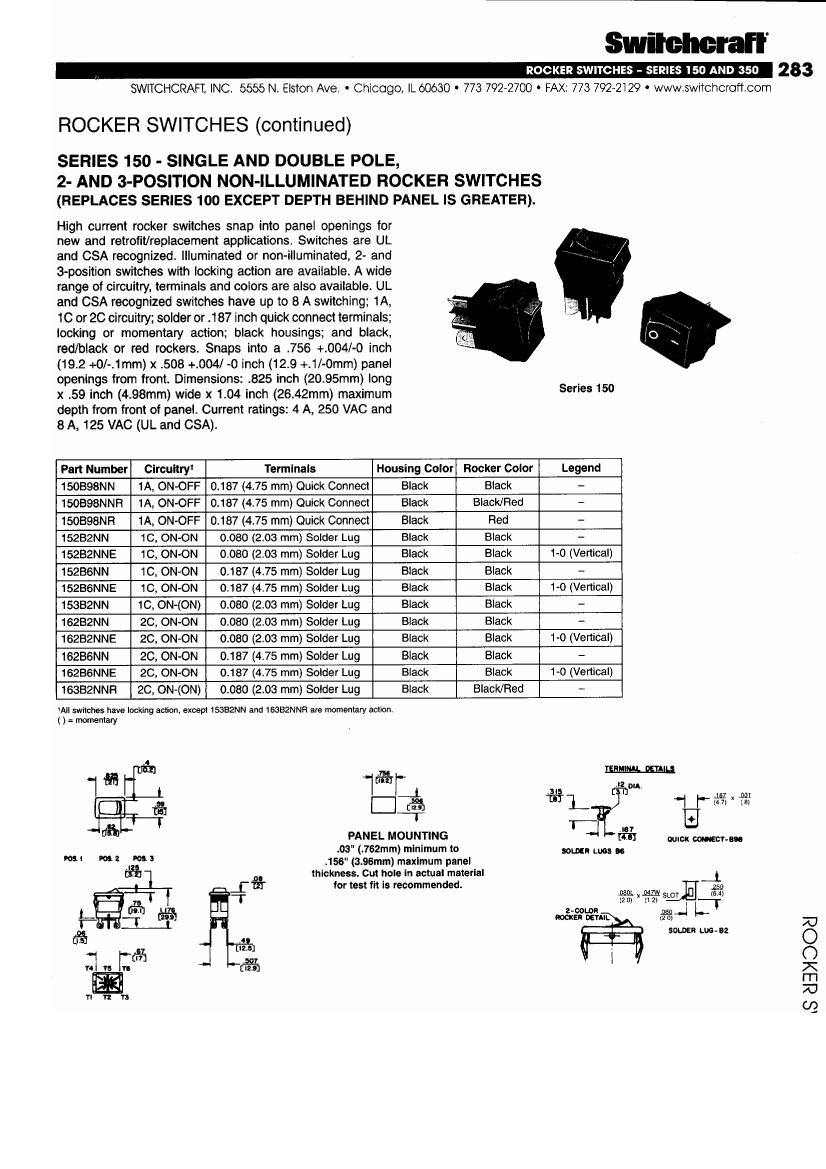

152B6NN: DescriptionRocker Switch, SPDT, On-on, Latched, Solder Terminal, Rocker Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size153KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

152B6NN Overview

Rocker Switch, SPDT, On-on, Latched, Solder Terminal, Rocker Actuator, Panel Mount,

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Actuator color	BLACK
Actuator length	0.205 inch
Actuator type	ROCKER
Other features	UL AND CSA CERTIFIED
body width	12.9 mm
Body color	BLACK
body height	19.1 mm
Body length or diameter	21 mm
Contact (AC) maximum rated R load	8A@125VAC
Maximum contact current (AC)	8 A
Contact function	ON-ON
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1000VRMS V
Electrical life	100000 Cycle(s)
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length
Termination type	SOLDER
Base Number Matches	1

	152B6NN	152B2NN	162B2NN
Description	Rocker Switch, SPDT, On-on, Latched, Solder Terminal, Rocker Actuator, Panel Mount,	Rocker Switch, SPDT, On-on, Latched, Solder Terminal, Rocker Actuator, Panel Mount,	Rocker Switch, DPDT, On-on, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount,
Reach Compliance Code	compli	compli	compliant
Actuator color	BLACK	BLACK	BLACK
Actuator length	0.205 inch	0.205 inch	0.205 inch
Actuator type	ROCKER	ROCKER	ROCKER
Other features	UL AND CSA CERTIFIED	UL AND CSA CERTIFIED	UL AND CSA CERTIFIED
body width	12.9 mm	12.9 mm	15.0114 mm
Body color	BLACK	BLACK	BLACK
body height	19.1 mm	19.1 mm	24.6634 mm
Body length or diameter	21 mm	21 mm	20.955 mm
Contact (AC) maximum rated R load	8A@125VAC	8A@125VAC	4A@250VAC
Maximum contact current (AC)	8 A	8 A	4 A
Contact function	ON-ON	ON-ON	ON-ON
Contact resistance	0.01 mΩ	0.01 mΩ	0.01 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V	125 V	250 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO
Switch action	LATCHED	LATCHED	HORIZONTAL
switch function	SPDT	SPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	SOLDER	SOLDER	SOLDER LUG
ECCN code	EAR99	EAR99	-
Base Number Matches	1	1	-
