D2SB60L-4004 datasheet, PDF - EEWORLD Datasheet

D2SB60L-4004: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, Silicon,; CategoryDiscrete semiconductor diode; File Size299KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

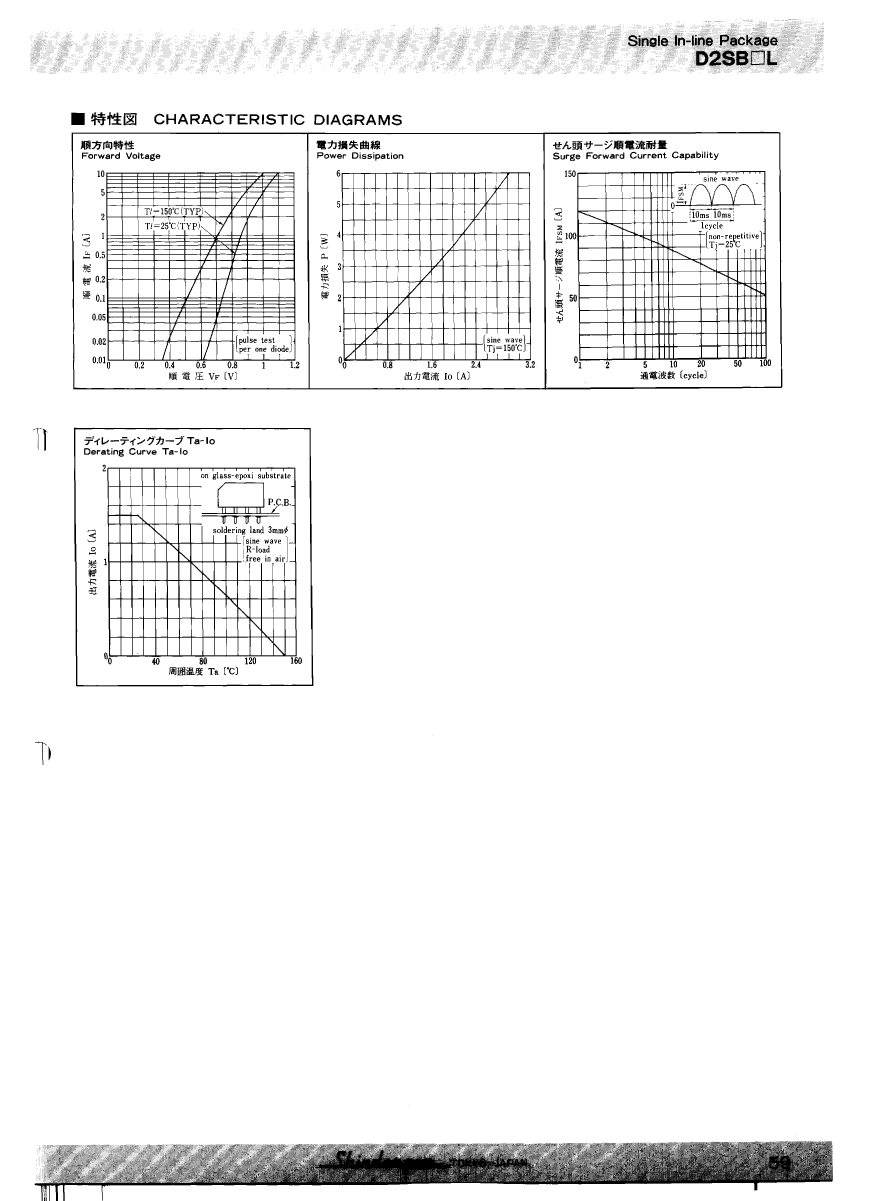

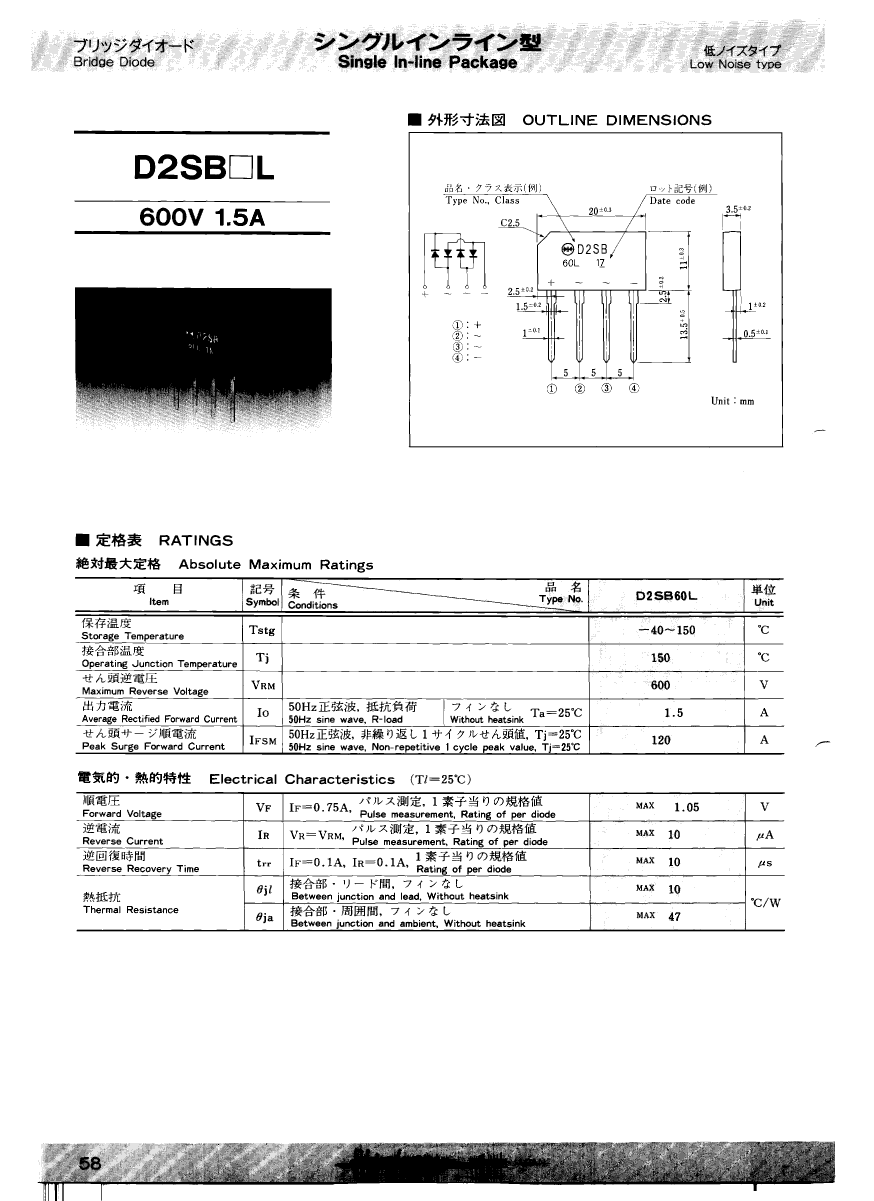

D2SB60L-4004 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSIP-T4
Reach Compliance Code	unknown
Other features	LOW NOISE
Minimum breakdown voltage	600 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	120 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum reverse current	10 µA
Maximum reverse recovery time	10 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	D2SB60L-4004	D2SB60L-4001	D2SB60L-4003
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Reach Compliance Code	unknown	unknown	unknown
Other features	LOW NOISE	LOW NOISE	LOW NOISE
Minimum breakdown voltage	600 V	600 V	600 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Maximum non-repetitive peak forward current	120 A	120 A	120 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA
Maximum reverse recovery time	10 µs	10 µs	10 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
