CAT8900A180TBGT3 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CAT8900A180TBGT3

CAT8900A180TBGT3: Description1-OUTPUT THREE TERM VOLTAGE REFERENCE, 1.8V, PDSO3, HALOGEN FREE AND ROHS COMPLIANT, TO-236, SOT-23, 3 PIN; CategoryPower/power management The power supply circuit; File Size370KB，7 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

CAT8900A180TBGT3 Overview

1-OUTPUT THREE TERM VOLTAGE REFERENCE, 1.8V, PDSO3, HALOGEN FREE AND ROHS COMPLIANT, TO-236, SOT-23, 3 PIN

CAT8900A180TBGT3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOT-23
package instruction	TSSOP,
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
JESD-609 code	e4
length	2.92 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.8005 V
Minimum output voltage	1.7995 V
Nominal output voltage	1.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.12 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
width	1.3 mm

Preview

Download Datasheet

View All

CAT8900

Precision Analog Voltage

References

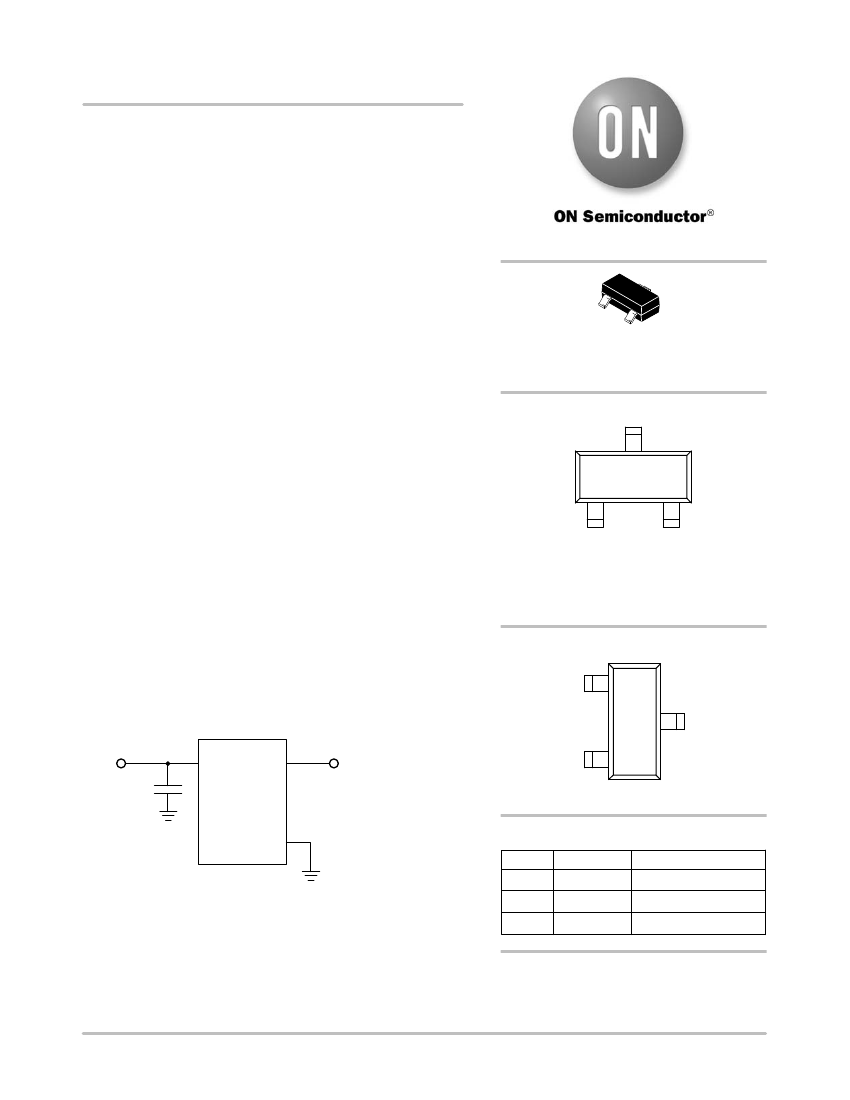

The CAT8900 is a high precision voltage reference providing very

accurate voltage regulation with low supply current consumption.

CAT8900 is ideal for use in battery powered systems where

operating current needs to be minimized and there can be a great

variation in supply voltages. It will source or sink up to 10 mA of load

current, and can for most applications, forgo the use of an output

bypass capacitor. The device is supplied in a space saving three

terminal SOT−23 package.

Features

http://onsemi.com

•

Reference Voltages:

•

1.024 V, 1.200 V, 1.250 V, 1.800 V,

2.048 V, 2.500 V, 2.600 V,

3.000 V, 3.300 V

Low Supply Current: 450 nA (Typical)

Initial Accuracy:

Class B:

1.0 mV

Class C:

2.5 mV

Class D:

5.0 mV

Drift Performance: 50 ppm/°C

SOT−23 3−Lead Package

This Device is Pb−Free, Halogen Free/BFR Free, and RoHS

Compliant

Battery Powered Systems

A/D and D/A Converters

Precision Regulator Systems

Power Supplies

Portable Medical Equipment

SOT23−3

TP, TB SUFFIX

CASE 527AG

MARKING DIAGRAM

S3YM

Typical Applications

S3 = Specific Device Code

Y = Production Year

(Last Digit)

M = Production Month

−

9, A, B, C)

•

PIN CONNECTIONS

GND

OUT

(Top View)

0.1

OUT

CAT8900

GND

Pin No.

PIN FUNCTIONS

Pin Name

OUT

GND

Function

Supply Voltage Input

Output Voltage

Ground

Figure 1. Application Circuit

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2011

March, 2011

−

Rev. 7

Publication Order Number:

CAT8900/D
