DC2367 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DC2367

DC2367: DescriptionPin Diode, 100V V(BR), Silicon; CategoryDiscrete semiconductor diode; File Size27KB，1 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

DC2367 Overview

Pin Diode, 100V V(BR), Silicon

DC2367 Parametric

Parameter Name	Attribute value
Maker	Dynex
package instruction	O-XUUC-N1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DOUBLE DIFFUSED
application	LIMITER; SWITCHING
Minimum breakdown voltage	100 V
Configuration	SINGLE
Maximum diode capacitance	0.06 pF
Diode component materials	SILICON
Diode type	PIN DIODE
JESD-30 code	O-XUUC-N1
Minority carrier nominal lifetime	0.5 µs
Number of components	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	NO LEAD
Terminal location	UPPER

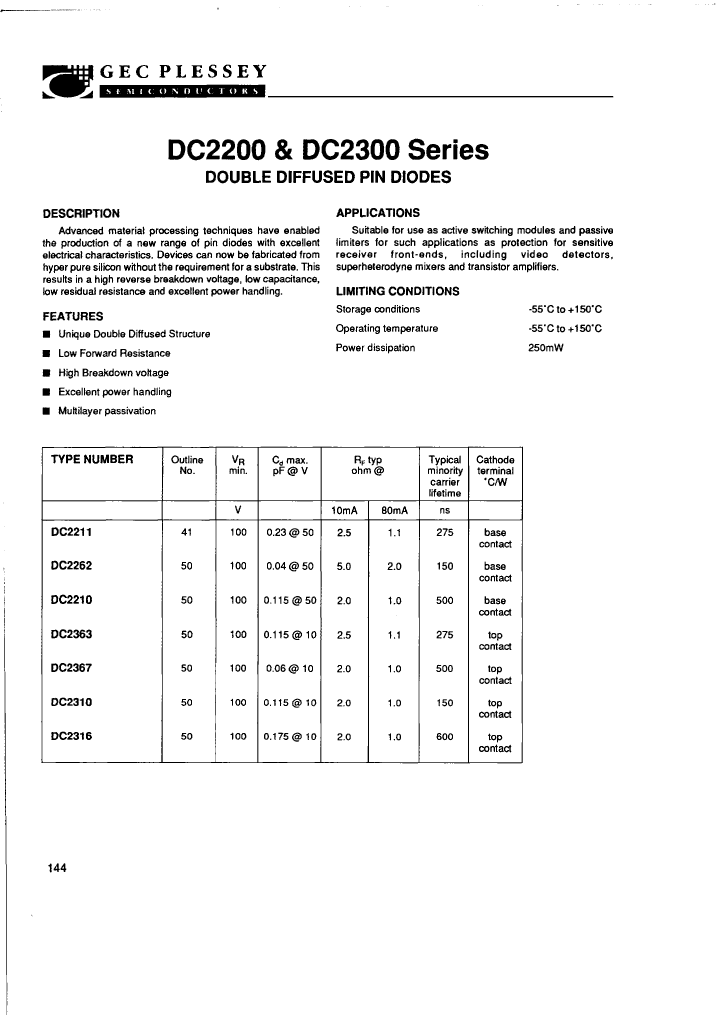

Preview

Download Datasheet

View All

DC2367 Related Products

	DC2367	DC2211	DC2363	DC2262	DC2310	DC2316	DC2210
Description	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon	Pin Diode, 100V V(BR), Silicon
package instruction	O-XUUC-N1	R-XEUC-N2	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DOUBLE DIFFUSED	DOUBLE DIFFUSED	DOUBLE DIFFUSED	DOUBLE DIFFUSED	DOUBLE DIFFUSED	DOUBLE DIFFUSED	DOUBLE DIFFUSED
application	LIMITER; SWITCHING	LIMITER; SWITCHING	LIMITER; SWITCHING	LIMITER; SWITCHING	LIMITER; SWITCHING	LIMITER; SWITCHING	LIMITER; SWITCHING
Minimum breakdown voltage	100 V	100 V	100 V	100 V	100 V	100 V	100 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	0.06 pF	0.23 pF	0.115 pF	0.04 pF	0.115 pF	0.175 pF	0.115 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE	PIN DIODE
JESD-30 code	O-XUUC-N1	R-XEUC-N2	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Minority carrier nominal lifetime	0.5 µs	0.275 µs	0.275 µs	0.15 µs	0.15 µs	0.6 µs	0.5 µs
Number of components	1	1	1	1	1	1	1
Number of terminals	1	2	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	END	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Dynex	-	-	-	Dynex	Dynex	Dynex
