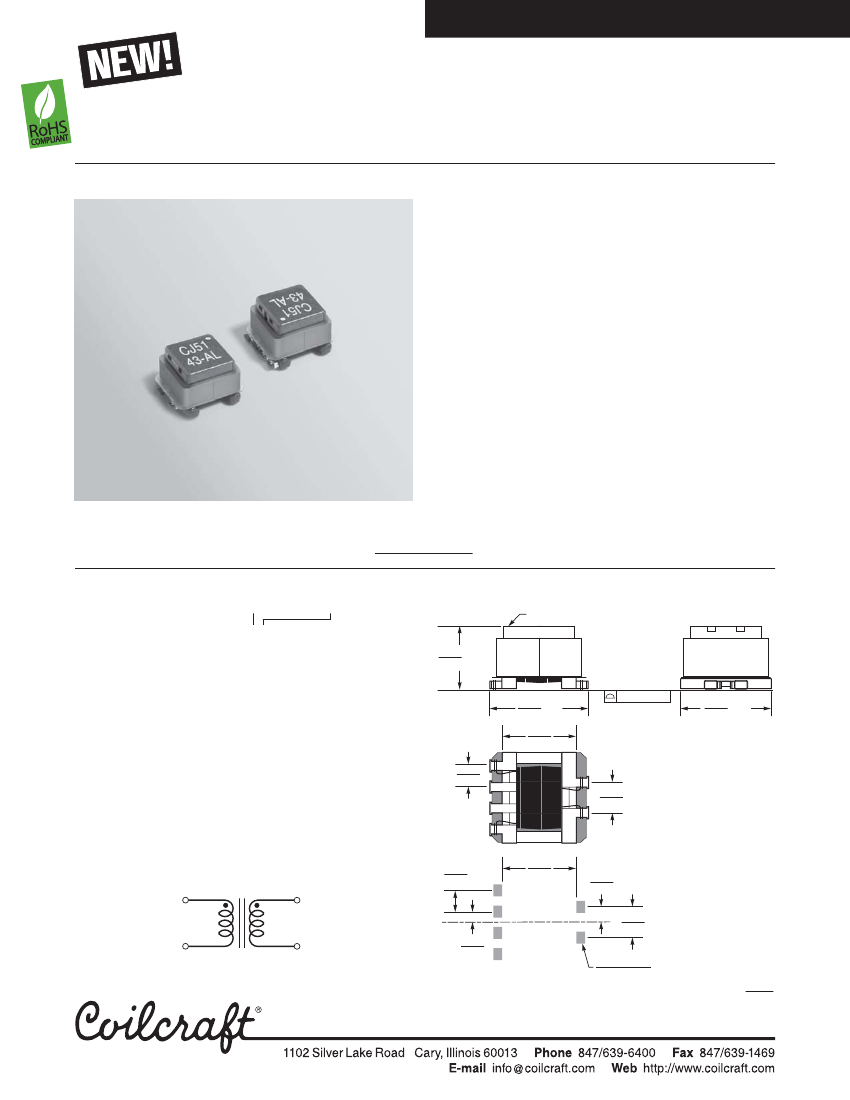

Document 659
Flyback Transformer
For ON Semiconductor NCP5080
Photoflash Capacitor Charger
• Miniature capacitor charging transformer – 4.6 mm high;
6.2 × 6.8 mm footprint
• 2.7 – 5.5 Volts input; 350 V output
• 1000 Vrms isolation from the primary to the secondary
Core material
Ferrite
Terminations
RoHS tin-silver over copper. Other terminations
available at additional cost.
Weight
0.30 g
Ambient temperature
–40°C to +125°C
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide,
0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part
number
1
CJ5143-AL_
Inductance
at 0 A
2
±10% (µH)
15.0
Inductance
at
Ipk
3
min (µH)
13.5
DCR max (Ohms)
pri
sec
1.0
25
Leakage
inductance
4
max (µH)
0.3
Pri : sec
turns ratio
1
:
15
Ipk
3
(A)
1.2
1. When ordering, please specify
termination
and
packaging
codes:
CJ5143-ALC
Termination: L
= RoHS compliant tin-silver (96.5/3.5) over copper.
Special order, added cost:
T
= RoHS tin-silver-copper (95.5/4/0.5) over copper
or
S
= non-RoHS tin-lead (63/37) over copper.
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (250 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (1000 parts per
full reel).
2. Inductance measured at 100 kHz, 0.1 Vrms.
3. Peak primary current drawn at minimum input voltage.
4. Leakage inductance is for the primary winding with the secondary
winding shorted.
5. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Dot indicates pin 1
0.194
max
4,60
0.268
max
6,80
0.193
4,90
1
0.004 /0,10
0.244
max
6,20
0.055
1,40
6
0.079
2.00
5
4
0.055
1,40
4
0.193
4,90
0.039
1,00
5
1
Pri
4
6
Sec
5
0.028
0,70
0.079
2,00
6
1
Recommended
Land Pattern
Specifications subject to change without notice.
Please check our website for latest information.
0.023 × 0.031
(6)
0,6 × 0,8
Dimensions are in
inches
mm
Document 659
Revised 02/12/09
© Coilcraft, Inc. 2009
