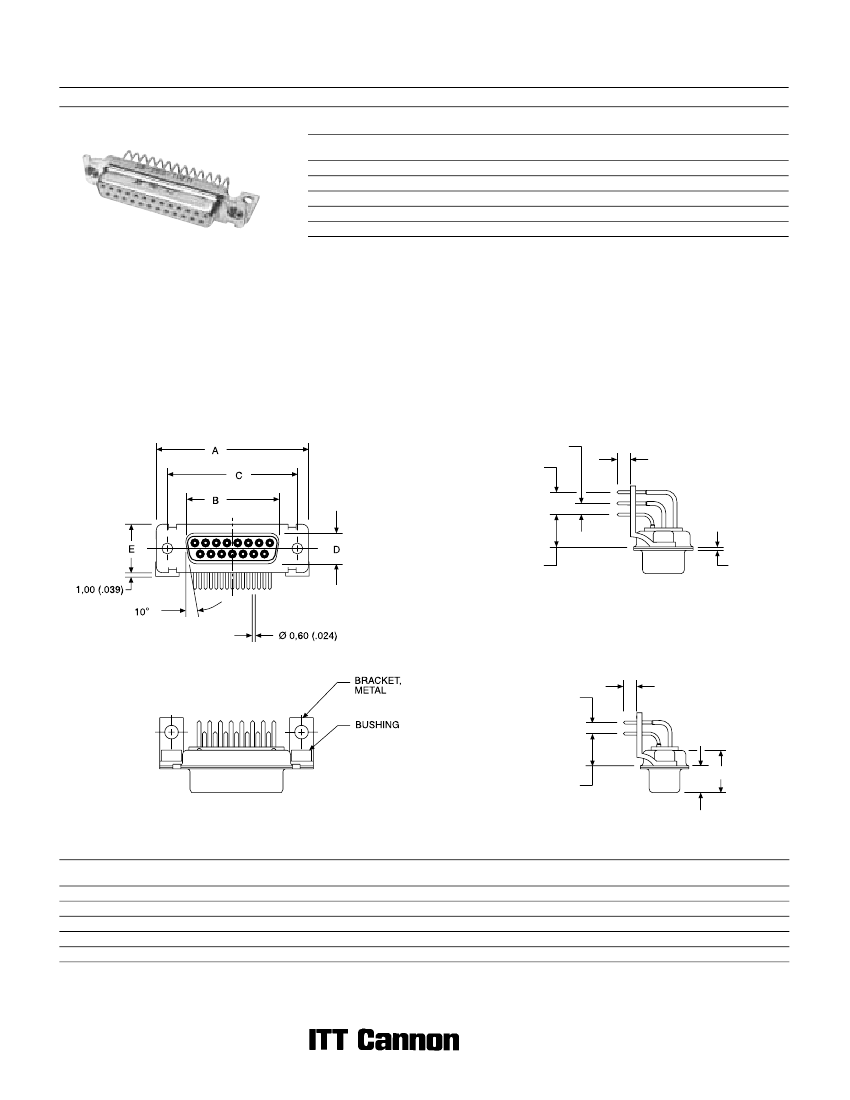

D Subminiature
90° Solder Termination (Machined) with Metal Bracket — European Footprint 10,2 or 9,4
Receptacle
Part Numbers
Shell Size
DE
DA
DB
DC
DD
Layout
9
15
25
37
50
Bushing with
Through Hole
DE9S-1AFN-A197
DA15S-1AFN-A197
DB25S-1AFN-A197
DC37S-1AFN-A197
DD50S-1AFN-A197
Captive Nut
#4-40 UNC
DE9S-1A7N-A197
DA15S-1A7N-A197
DB25S-1A7N-A197
DC37S-1A7N-A197
DD50S-1A7N-A197
Captive Nut
M3
DE9S-1A9N-A197
DA15S-1A9N-A197
DB25S-1A9N-A197
DC37S-1A9N-A197
DD50S-1A9N-A197
D*
mm
Post
#4-40 UNC
DE9S-1A8N-A197
DA15S-1A8N-A197
DB25S-1A8N-A197
DC37S-1A8N-A197
DD50S-1A8N-A197
Selection Guide
For Product Features, Specifications,
Materials and Finishes, see pages 14-15.
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Notes: For pushfit/boardlock option add -146. Example: DE9S-1AFN-A197-146
For performance class 2 add -A191. Example: DE9S-1AFN-A191-A197
Engaging Face
2,54 (.100)
5,08 (.200)
DD Configuration
3,70 (.146)
9,40 (.370)
L
3,70 (.146)
2,54 (.100)
9,40 (.370)
W
F
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
52,42 (2.064)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
10,74 (.423)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
