2.5Vdc CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASE2 SERIES
FEATURES:
• Compact and low in height at 1.1mm • Suitable for RoHS reflow
• Low current consumption
• Tight stability option ±20ppm
2mA typ. for 19.2MHz
for -40 to +85C
• Tri state function
• Seam sealed package
assures high reliability
Pb
RoHS
Compliant
3.2 x 2.5 x 1.1mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• CCD clock for VTR camera
• Equipment connected to PC or PC cards
• Wireless communication
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Input Current
Symmetry
Rise and Fall Time (Tr/Tf)
Output Load
Output Voltage
Tristate Function
Peak to Peak Jitter
RMS Jitter
Start-up Time
Aging
Stand-by current:
TABLE 1- Input Current
Frequency
(MHz)
0.625~19.99
20~31.99
32~59.99
~125
Idd
mA (Typ)
2
3
5
12
Idd
mA (Max)
8
8
15
20
Tr/Tf
ns (Typ)
3
3
3
3
Tr/Tf
ns (max)
5
5
5
5
Start-up time
ms (Typ)
0.6
0.6
0.6
1.3
Start-up time
ms (Max)
3
3
3
2
RMS Jitter
ps (Typ)
2
2
2
2
RMS Jitter
ps (Max)
5
5
5
5
ASE2 Series
0.625
~
166 MHz
-10°C to + 70°C (See Options)
-55°C to + 125°C
± 100 ppm max. (See Options)
2.5 V ± 5%
See Table 1
45/55% @ 1/2 %Vdd
See Table 1
15 pF (max)
VOH = 0.9* Vdd min., VOL = 0.1* Vdd max.
"1" (VIH >= 0.7 Vdc) or open: Oscillation, "0" (VIL < 0.3 Vdc) : Hi Z
See Table 1
See Table 1
10ms max.
± 5 ppm max.
10µA max.
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASE2 -
Operating Temp.
I: 0°C ~ +50°C
D: -10°C ~ +60°C
E: -20°C ~ +70°C
F: -30°C ~ +70°C
N: -30°C ~ +85°C
L: -40°C ~ +85°C
Contact ABRACON for wider
temperature range.
MHz -
-
Packaging
Blank: Bulk
T: Tape & Reel
Frequency in MHz
e.g. 24.576MHz
14.31818MHz
26.000MHz
Freq. Stability
J*: ± 20 ppm
R: ± 25 ppm
K: ± 30 ppm
H: ± 35 ppm
B: ± 40 ppm
C: ± 50 ppm
*: Temp options I, D, E, and
-10° C to + 70° C only
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 06.22.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
2.5Vdc CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASE2 SERIES

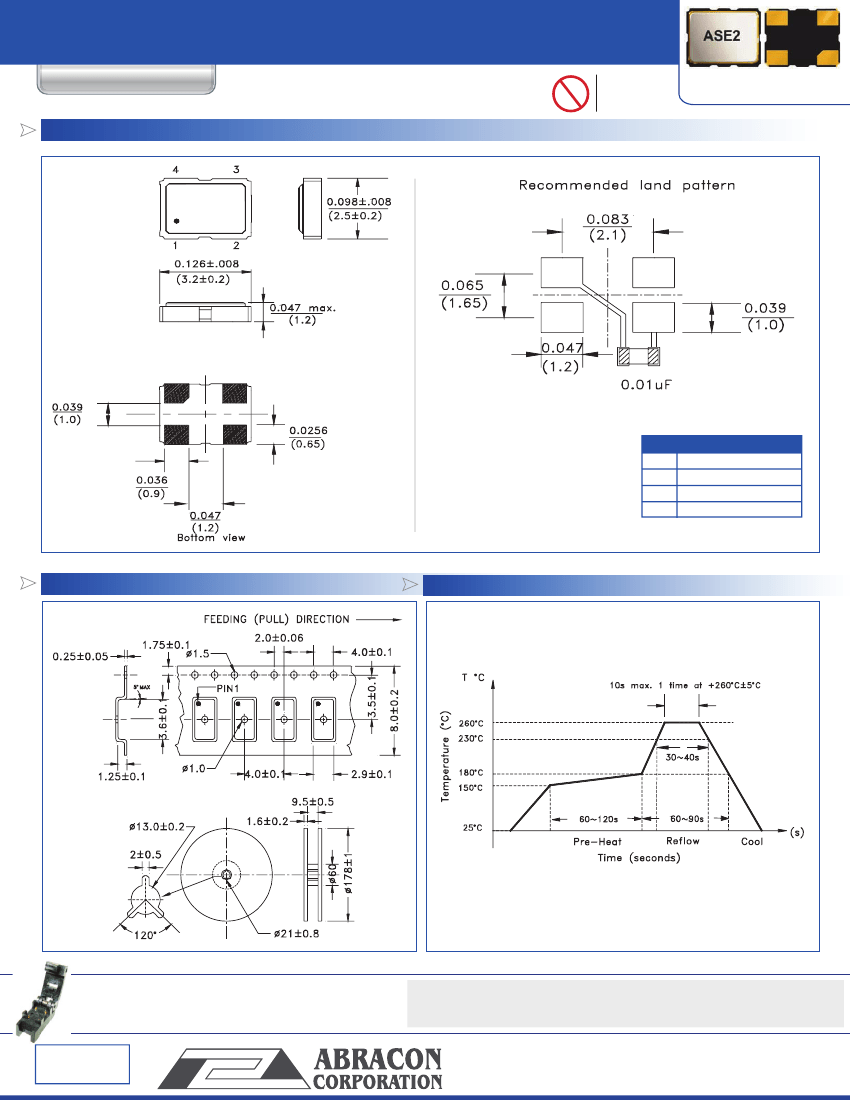

OUTLINE DRAWING:
Pb
RoHS
Compliant
3.2 x 2.5 x 1.1mm
| | | | | | | | | | | | | | |
Note:
The outline package
configuration varies with frequency
range. Electrical properties, pin
configuration, and land pattern
are the same.
Note:
It is recommended to use an
approximately 0.01uF bypass
capacitor.between PIN 2 and 4.
PIN
1
2
3
4
FUNCTION
Tri-state
GND/Case
Output
Vdd
Dimensions: Inches (mm)
TAPE & REEL:
T = Tape and reel 1,000pcs/reel
Dimensions: mm
REFLOW PROFILE
Need a test socket for the ASE2 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO 9001 / QS 9000
ISO9001:2008
CERTIFIED
NOTE:
Abracon manufactured products are intended for general commercial and
industrial use. For applications requiring high reliability and/or presenting extreme
operating environment, written consent & authorization from Abracon is required.
Revised: 06.22.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
