ECS-P75-150.000-BN datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-P75-150.000-BN

ECS-P75-150.000-BN: DescriptionHCMOS Output Clock Oscillator, 1MHz Min, 150MHz Max, 150MHz Nom, ROHS COMPLIANT, MINIATURE, LEADLESS, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size127KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-P75-150.000-BN Overview

HCMOS Output Clock Oscillator, 1MHz Min, 150MHz Max, 150MHz Nom, ROHS COMPLIANT, MINIATURE, LEADLESS, CERAMIC, SMD, 4 PIN

ECS-P75-150.000-BN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	150 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	150 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.7mm
power supply	5 V
Certification status	Not Qualified
longest rise time	4 ns
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

Programmable (1 time)

3.3V & 5V options

PLL technology

Extended temp range

Industry Standard Footprint

Pb Free/RoHS Compliant

ECS-P73/P75

SMD PROGRAMMABLE OSCILLATOR

ECS-P73 (3.3V) and ECS-P75 (5V) is our miniature, one time

programmable crystal controlled oscillator. This miniature,

very low profile leadless ceramic package is ideal for today's

SMD manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-P73 (+3.3V)

ECS-P75 (+5V)

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Supply Voltage

Frequency Stability *

Input Current

Output Disable Current

Output Symmetry

Rise and Fall Times

Jitter

"0" level

"1" level

Output Load (HCMOS)

Enable/Disable Time

Start-Up Time

CONDITIONS

MIN

1.000

-10

-40

-55

+2.97

TYP

MAX

MIN

TYP

MAX

150.000

+70

+85

+125

+5.5

± 100

± 50

45/55

±250

±100

0.4

100

UNITS

MHz

°C

VDC

ppm

pS p-p

VDC

Standard

Extended (N Option)

+3.3

Option A

Option B

Pin 1 = VIL

@ 50% Vcc level

20% Vcc to 80%Vcc level

1.0 ~ 33.0 MHz

>33.1 MHz

VOL

VOH

1.0 ~ 50.0 MHz

> 50.1 MHz

±100

±50

2.7

125.000 1.000

+70

-10

+85

-40

+125

-55

+3.63

+4.5

± 100

± 50

45/55

±250

±100

0.4

Vcc-0.5

150

+5.0

±100

±50

* Note: Inclusive of 25°C tolerance, operating temperature,input voltage change, load change, aging, shock and vibration.

DIMENSIONS (mm)

ECS-P73 (3.3V)

Tri-State Control Voltage

Pad 1

Pad 3

Open

Oscillation

+ 0.7V Min.

Oscillation

High Impedance

+ 0.2V Max.

ECS-P75 (5V)

Tri-State Control Voltage

Pad 1

Pad 3

Open

Oscillation

+2.0V Min.

Oscillation

High Impedance

+0.8V Max.

Pin Connections

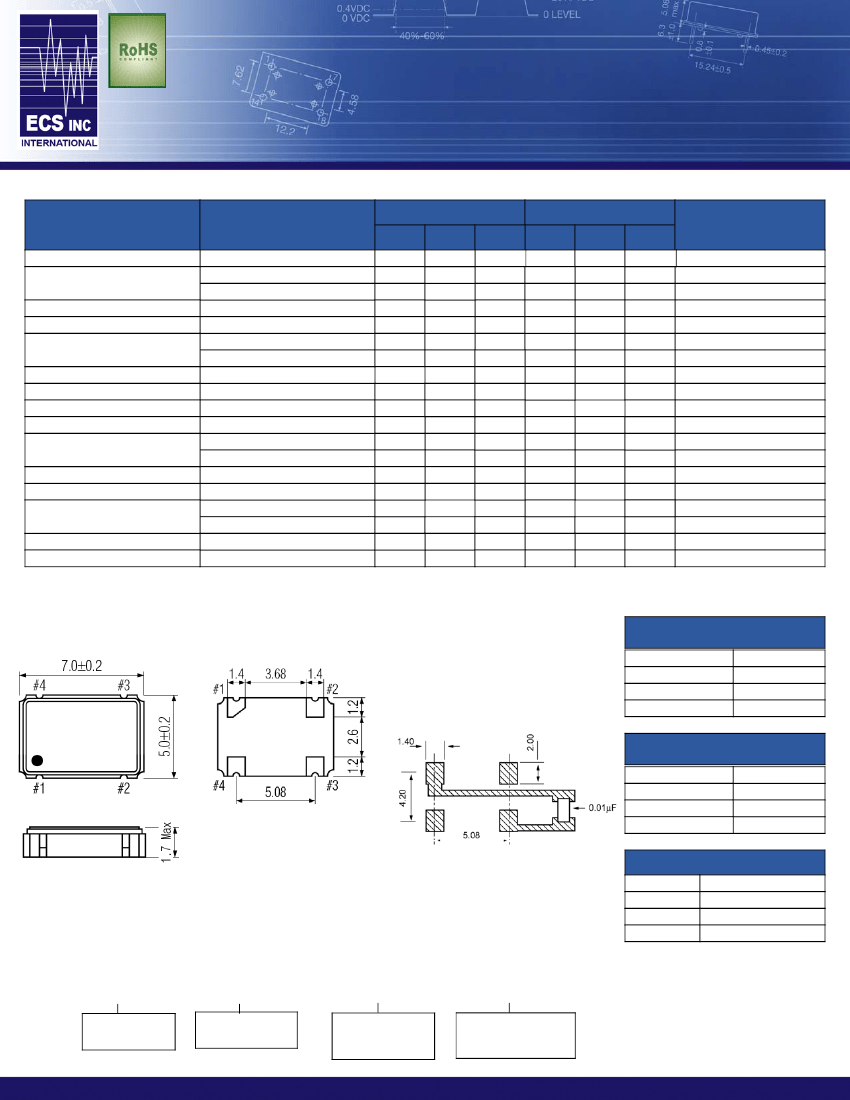

Figure 1) Top, Side, and Bottom views

Figure 2) Suggested Land Pattern

Pin #1

Pin #2

Pin #3

Pin #4

Tri-State

Ground

Output

Vcc

PART NUMBERING GUIDE: Example ECS-P73-20.000-AN

ECS

Series

P73 = +3.3V

P75 = +5.0V

Frequency

20.000

= 20.000 MHz

Stability

A = ± 100 ppm

B = ± 50 ppm

Temperature

Blank = -10 ~ +70°C

N = -40 ~ +85°C

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
