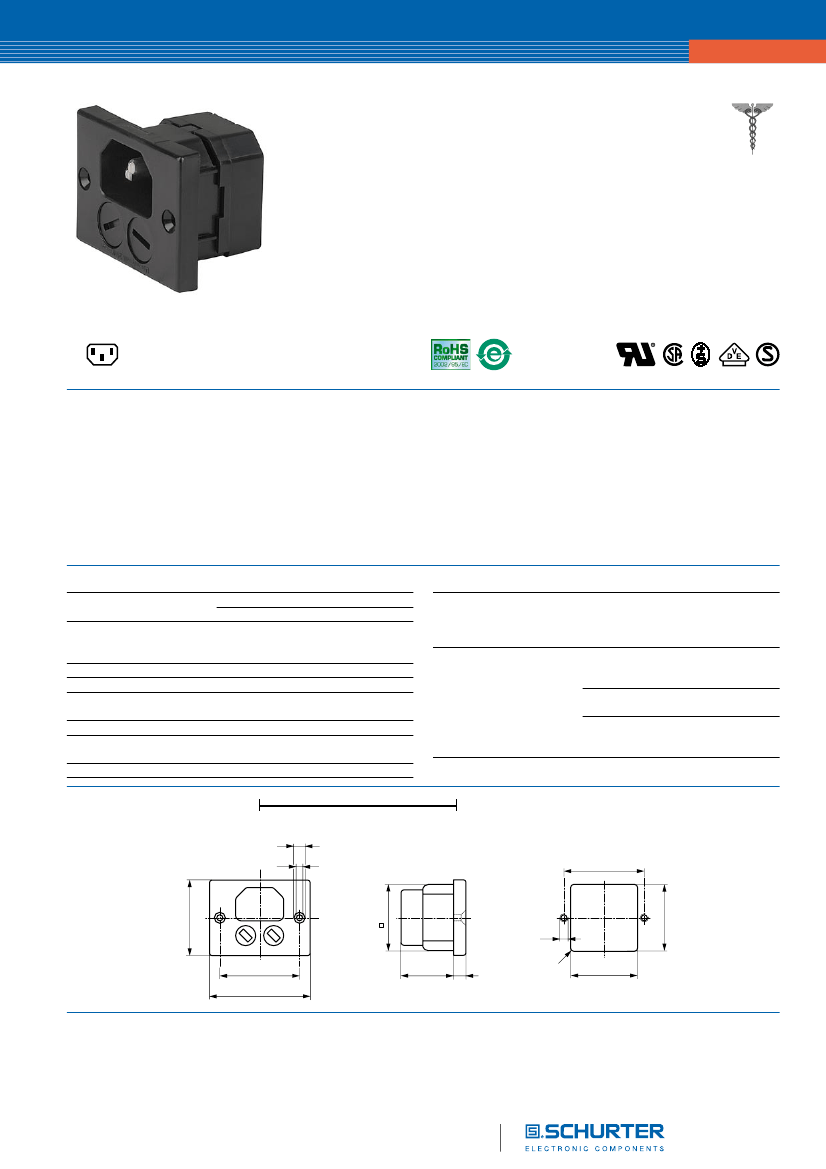

Power entry modules without line filter
8842/8843
www.schurter.com/pg05
Plug removal necessary for fuse
replacement
IEC Appliance Inlet C14 with Fuseholder 2-pole
C14
70° C
Description
- Panel Mount:
Screw-on mounting from front side
- 2 Functions:
Appliance Inlet protection class I or II, Fuseholder for fuse-links
5 x 20 mm, 1- or 2-pole
- Quick connect terminals 4.8 x 0.8 mm
- We recommend for new applications the new type 4707
Characteristics
- All single elements are already wired
- With slotted screw type fuseholder
Fuseholder meets requirements of medical standard IEC/EN 60601-1
The fuseholder can only be opened with the aid of a tool
The fuseholder is accessible from the equipment front
- Qualified for use in equipment according IEC/EN 60950
References
Weblinks
Approvals
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
- VDE License Number: 77560
- UL License Number: E93617
- CSA License Number: 70111
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
6 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class 1 or 2 acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, UL 94V-0
Appliance Inlet
C14 acc. to IEC/EN 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1 or 2
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 1.6 W (1 pole)/ 1,2 W (2-pole)
per pole
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Fuseholder
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Dimensions
6.2x90˚
3.2
50 mm
40
37.5
32.5
M3
40
50
26.5
6
max. R1.5
33.3
+0.2
0
Connectors
33.3
+0.2
0
8842/8843
www.schurter.com/pg05

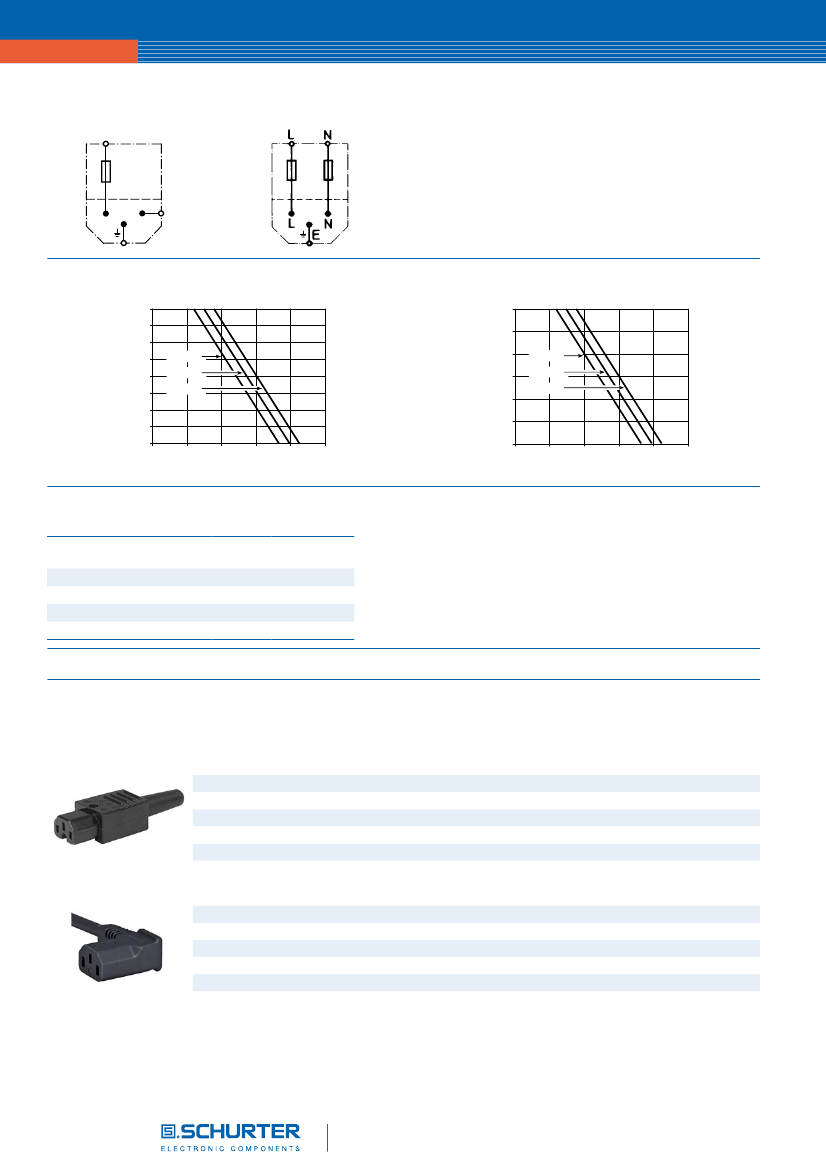

Diagrams
6200/05
6220
Power entry modules without line filter
L
L
N
E
Derating Curves
1-pole
Admissible power acceptance in Watt
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
2-pole
Admissible power acceptance in Watt
per pole
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature Ta °C
Ambient Air Temperature Ta °C
Variants
Socket and fuse-carrier
Protection Class
1
1
1
2
Fuseholder
1-pole
2-pole
2-pole
2-pole
Housing
black
black
Grey
black
Order Number
0040.5012
0040.5000.2
0040.5001.2
0040.5015
Packaging unit
100 Pcs
Mating Outlets/Connectors
Category / Description
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to 8842/8843
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to 8842/8843
0311
3011
3012
3013
3020
...
0101
0102
0102-G
0112
4012
...
2
Connectors
Power entry modules without line filter
8842/8843
www.schurter.com/pg05
Category / Description
Power Supply or Interconnection Cord Overview complete
Divers Power Supply and Interconnection Cords 10 A
Divers Power Supply and Interconnection Cords 10 A
Divers Power Supply and Interconnection Cords 10 A
Divers Power Supply and Interconnection Cords 10 A
Divers Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types to 8842/8843
6000.0214
6000.0224
6003.0204
6003.0205
6003.0215
...
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
