PTS Series - Pt-Sensors
Vishay Beyschlag

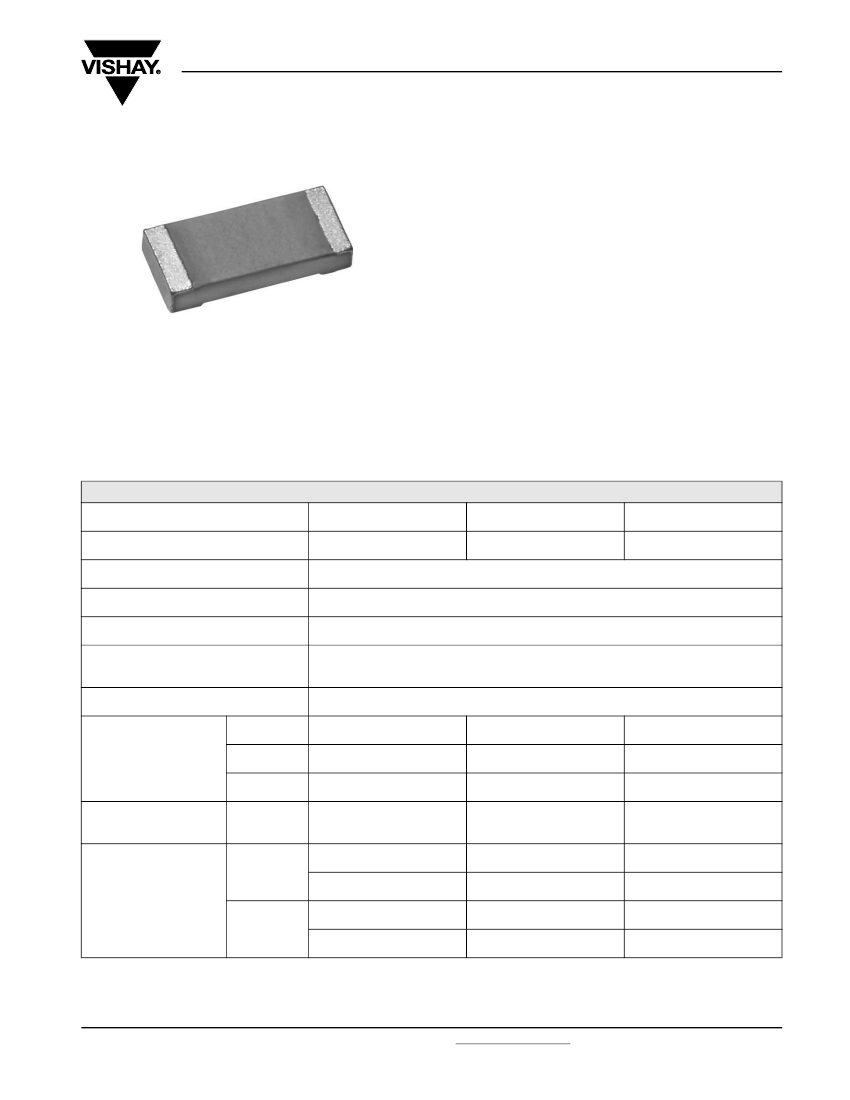

Platinum SMD Flat Chip
Temperature Sensor
FEATURES
•
Specification according to IEC 60751
•
Advanced thin film technology
•
Short reaction times down to t
0.9
≤
2 s (in air)
•
Outstanding stability of temperature characteristic
•
Standard SMD sizes
•
Green product, supports lead (Pb)-free soldering
PTS SMD Flat Chip Temperature sensors are the perfect
choice for temperature control of electronics operating under
varying environmental conditions. The highly controlled
platinum thin film manufacturing process guarantees an
outstanding stability of temperature characteristics which
ensures reliable operation even under harsh conditions.
Typical applications include automotive, aviation and
industrial electronics.
APPLICATIONS
Temperature measurement in
•
Automotive electronics
•
Aviation electronics
•
Industrial electronics
TECHNICAL SPECIFICATIONS
DESCRIPTION
Resistance values
R
0
at 0 °C
Temperature coefficient (0 °C ... + 100 °C)
Tolerance classes
Temperature range
Long term stability
ΔR
0
/R
0
;
R
0
change after 1000 h at + 155 °C
Insulation resistance
100
Ω
Measurement current
I
meas.
(DC)
500
Ω
1000
Ω
Self-heating
(1)
still air
(v = 0 m/s)
flowing water
(v = 0.4 m/s)
Thermal response time
(1)
PTS 0603
100
Ω
PTS 0805
100
Ω,
500
Ω
+ 3850 ppm/K
B, 2B
- 55 °C to + 155 °C
< ± 0.04 %
> 10 MΩ
PTS 1206
100
Ω,
500
Ω,
1000
Ω
0.1 mA to 0.25 mA
-
-
≤
0.9 K/mW
t
0.5
≤
0.1 s
t
0.9
≤
0.2 s
t
0.5
≤
1.0 s
t
0.9
≤
2.0 s
0.1 mA to 1.0 mA
0.1 mA to 0.25 mA
-
≤
0.8 K/mW
t
0.5
≤
0.2 s
t
0.9
≤
0.3 s
t
0.5
≤
1.5 s
t
0.9
≤
3.0 s
0.1 mA to 1.0 mA
0.1 mA to 0.25 mA
0.1 mA to 0.25 mA
≤
0.7 K/mW
t
0.5
≤
0.3 s
t
0.9
≤
0.4 s
t
0.5
≤
2.0 s
t
0.9
≤
5.0 s
flowing air
(v = 3.0 m/s)
Note:
(1)
Valid for sensor element only.
Document Number: 28762
Revision: 29-Jan-08
For technical questions, contact: nlr.europe@vishay.com
www.vishay.com
1
PTS Series - Pt-Sensors
Vishay Beyschlag
DIMENSIONS
T1
Platinum SMD Flat Chip
Temperature Sensor
W
WT
H
T2
L
DIMENSIONS
- PTS sensor types, mass and relevant physical dimensions
TYPE
PTS 0603
PTS 0805
PTS 1206
H
(mm)
0.45 + 0.1/- 0.05
0.45 + 0.1/- 0.05
0.55 ± 0.1
L
(mm)
1.55 ± 0.05
2.0 ± 0.1
3.2 + 0.1/- 0.2
W
(mm)
0.85 ± 0.1
1.25 ± 0.15
1.6 ± 0.15
W
T
(mm)
> 75 % of W
> 75 % of W
> 75 % of W
T
1
(mm)
0.3 + 0.15/- 0.2
0.4 + 0.1/- 0.2
0.4 + 0.1/- 0.2
T
2
(mm)
0.3 + 0.15/- 0.2
0.4 + 0.1/- 0.2
0.4 + 0.1/- 0.2
MASS
(mg)
1.9
4.6
9.2
PRODUCTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A
homogeneous film of platinum is deposited on a high grade
ceramic body (96 % AI
2
O
3
). The sensor-elements are
covered by a protective coating designed for electrical,
mechanical and climatic protection. The terminations receive
a final pure tin on nickel plating.
All products comply with the CEFIC-EECA-EICTA list of legal
restrictions on hazardous substances.
This includes full compatibility with the following directives:
•
2000/53/EC End of Vehicle life Directive (ELV)
•
2000/53/EC Annex II to End of Vehicle Life Directive
(ELV II)
•
2002/95/EC Restriction of the
Substances Directive (RoHS)
use
of
Hazardous
QUALITY
The result of the determined production is verified by an
extensive testing procedure performed on 100 % of the
individual sensors. Only accepted products are laid directly
into the paper tape in accordance with
IEC 60286-3.
•
2002/96/EC Waste Electrical and Electronic Equipment
Directive (WEEE)
APPROVALS
STORAGE
Solderability is specified for 2 years after production or
re-qualification. The permitted storage time is 20 years.
The Pt-sensors are tested in accordance with
IEC 60751
and
IEC 60068
series.
e3
ASSEMBLY
The Pt-sensors are suitable for processing on automatic
SMD assembly systems. They are suitable for automatic
soldering using wave, reflow or vapour phase. The
encapsulation is resistant to all cleaning solvents
commonly used in the electronics industry, including
alcohols, esters and aqueous solutions. The Pt-sensors are
RoHS compliant, the pure tin plating provides compatibility
with lead (Pb)-free and lead-containing soldering
processes. The immunity of the plating against tin whisker
growth has been proven under extensive testing.
Lead (Pb)-free Identification
on the Package Label
www.vishay.com
2
For technical questions, contact: nlr.europe@vishay.com
Document Number: 28762
Revision: 29-Jan-08
PTS Series - Pt-Sensors
Platinum SMD Flat Chip
Temperature Sensor
PART NUMBER AND PRODUCT DESCRIPTION
(1)
PART NUMBER
(2)
: PTS060301B100RPW000
Vishay Beyschlag
P
T
S
0
6
0
3
0
1
B
1
0
0
R
P
W
0
0
TYPE
3 digits
PTS = Platinum
Temperature
Sensor SMD
SIZE CODE
4 digits
0603
0805
1206
SPECIAL
CHARACTER
1 digit
0 = neutral
TOLERANCE
CLASS
2 digits
1B = Class B
2B = Class 2B
RESISTANCE
VALUE
4 digits
100R = 100
Ω
500R = 500
Ω
1K00 = 1000
Ω
PACKAGING
(3)
2 digits
PU
P1
P5
PW
SPECIAL
2 digits
00 = standard
PRODUCT DESCRIPTION
(4)
: PTS 0603-B PW 100R
PTS
TYPE
PTS = Platinum
Temperature
Sensor SMD
0603
SIZE CODE
0603
0805
1206
-B
TOLERANCE
CLASS
B = Class B
2B = Class 2B
PW
PACKAGING
(3)
PU
P1
P5
PW
100R
RESISTANCE VALUE
100R = 100
Ω
500R = 500
Ω
1K = 1000
Ω
Notes:
(1)
Products can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION
(2)
The Part Number is shown to facilitate the introduction of a unified part numbering system
(2)
Please refer to table PACKAGING
(4)
We recommend that the Production Description is used to minimize the possibility of errors in order handling
PACKAGING
MODEL
DIAMETER
114 mm
180 mm/7"
PTS 0603
180 mm/7"
330 mm/13"
114 mm
180 mm/7"
PTS 0805
180 mm/7"
330 mm/13"
114 mm
180 mm/7"
PTS 1206
180 mm/7"
330 mm/13"
5000
20 000
P5
PW
REEL
REEL
5000
20 000
100
1000
P5
PW
PU
P1
REEL
REEL
BOX
REEL
5000
20 000
100
1000
P5
PW
PU
P1
REEL
REEL
BOX
REEL
PIECES
100
1000
CODE
PU
P1
BOX/REEL
BOX
REEL
Document Number: 28762
Revision: 29-Jan-08
For technical questions, contact: nlr.europe@vishay.com
www.vishay.com
3
PTS Series - Pt-Sensors
Vishay Beyschlag
FUNCTIONAL PERFORMANCE
The temperature resistance relationships of the PTS series
follow different equations:
for the temperature range of - 55 °C up to 0 °C:
R
(
ϑ
)
=
R
0
x (1 +
A
x
ϑ
+
B
x
ϑ
2
+
C
x (
ϑ
- 100 °C) x
ϑ
3
)
and for the temperature range of 0 °C up to + 155 °C:
R
(
ϑ
)
=
R
0
x (1 +
A
x
ϑ
+
B
x
ϑ
2
)
R
(ϑ)
: resistance as a function of temperature
R
0
: nominal resistance value at 0 °C
ϑ:
temperature in °C
According to IEC 60751 the values of the coefficients are:
A = 3.9083 x 10
-3
°C
-1
B = - 5.775 x 10
-7
°C
-2
C = - 4.183 x 10
-12
°C
-4
The tolerances values of the PTS series are classified by the
following equations:
Class B:
Class 2B:
Δ
ϑ
B
=
± (0.3 + 0.005 x
|
ϑ
|)
Δ
ϑ
2B
=
± (0.6 + 0.010 x
|
ϑ
|)
Platinum SMD Flat Chip
Temperature Sensor
NOMINAL RESISTANCE VALUE
TEMPERATURE
IN °C
- 50
- 25
0
25
50
75
100
125
150
R
0
= 100
Ω
Nominal Resistance
in
Ω
80.31
90.19
100
109.73
119.40
128.99
138.51
147.95
157.33
R
0
= 500
Ω
Nominal Resistance
in
Ω
401.54
450.95
500
548.65
596.98
644.90
692.50
739.76
786.58
R
0
= 1000
Ω
Nominal Resistance
in
Ω
803.07
901.90
1000
1097.30
1193.95
1289.80
1385.00
1479.51
1573.15
CLASS B
Tolerance in K
± 0.55
± 0.43
± 0.30
± 0.43
± 0.55
± 0.68
± 0.80
± 0.93
± 1.05
CLASS 2B
Tolerance in K
± 1.10
± 0.85
± 0.60
± 0.85
± 1.10
± 1.35
± 1.60
± 1.85
± 2.10
1.
8
0
PTS Series
1.60
1.40
R (
ϑ
) /R 0
1.20
1.00
0.80
0.60
- 60
- 40
- 20
0
20
40
60
8
0
100
120
140
160
Temperature [°C]
Nominal Resistance Value
www.vishay.com
4
For technical questions, contact: nlr.europe@vishay.com
Document Number: 28762
Revision: 29-Jan-08
PTS Series - Pt-Sensors
Platinum SMD Flat Chip
Temperature Sensor
1.2
1.0
0.
8
0.6

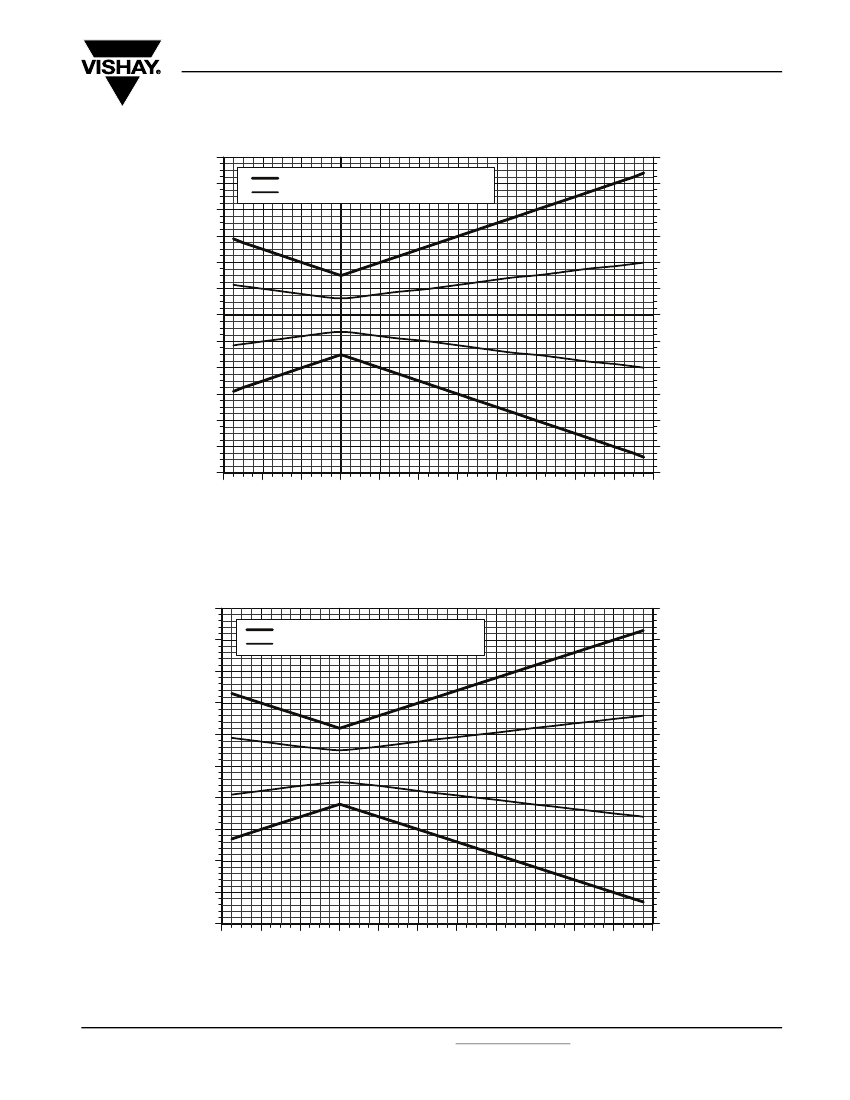

PTS series temperat
u
re tolerance (Class B)
PTS series resistance tolerance (Class B)
Vishay Beyschlag
1.2
1.0
0.
8
0.6
0.4
0.2
0
- 0.2
- 0.4
- 0.6
- 0.
8
- 1.0
- 1.2
- 60
- 40
- 20
0
20
40
60
8
0
100
120
140
160
Temperature tolerance [°C]
0.4
0.2
0
- 0.2
- 0.4
- 0.6
- 0.
8
- 1.0
- 1.2
Temperature [°C]
Tolerance Class B
2.5
2.0
1.5
PTS series temperat
u
re tolerance (Class 2B)
PTS series resistance tolerance (Class 2B)
2.5
2.0
1.5
1.0
0.5
0
- 0.5
- 1.0
- 1.5
- 2.0
- 2.5
- 60
- 40
- 20
0
20
40
60
8
0
100
120
140
160
Temperature tolerance [°C]
0.5
0
- 0.5
- 1.0
- 1.5
- 2.0
- 2.5
Temperature [°C]
Tolerance Class 2B
Document Number: 28762
Revision: 29-Jan-08
For technical questions, contact: nlr.europe@vishay.com
www.vishay.com
5
Resistance tolerance [%]
1.0
Resistance tolerance [%]
