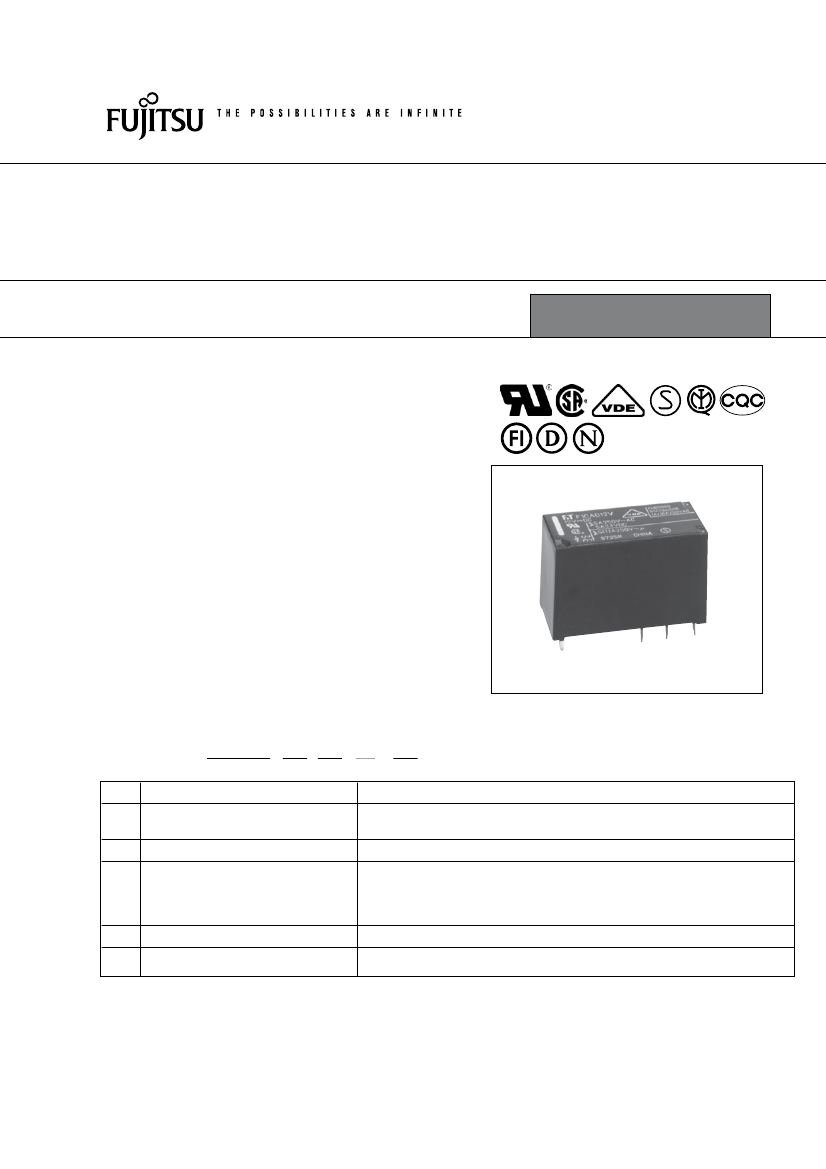

POWER RELAY
2 POLES—8 A LOW PROFILE TYPE
FTR-F1 R SERIES
RoHS compliant
n
FEATURES
l
l
l
l
l
l
l
DPST/DPDT 8A
Low profile power relay (height 16.5 mm) employing
unique construction
Higher isolation by employing reinforced insulation co
struction
Insulation distance: 8 mm (between coil and contact)
Dielectric strength: 5 kV (between coil and contact)
Surge strength: 10 kV (between coil and contact)
Pin configuration compatible to VB/FBR620
UL, CSA, VDE, SEMKO, CQCrecognized
Conforms to FIMKO, IMQ, DEMKO
RoHS compliant since date code: 0434R
Please see page 8 for more information
n
ORDERING INFORMATION - 5A Rating Type
[Example]
(a)
(b)
(c)
(d)
FTR-F1
(a)
A
(b)
L
(c)
005
(d)
R
(e)
– (**)
(f )
Series Name
Contact Arrangement
Coil Type
Nominal Voltage
FTR-F1 : FTR-F1 Series
A
C
L
003
005
006
009
R
RG
: 2 form A (DPST-NO)
: 2 form C (DPDT)
: High sensitive type (400 mW)
: 3 VDC (high sensitive type 'D' only)
: 5 VDC
012: 12 VDC
: 6 VDC
018: 18 VDC
: 9 VDC
024: 24 VDC
: 8A
: Transparency cover
048: 48 VDC
060: 60 VDC
100: 100 VDC
(e)
(f)
Contact Rating
Custom Designation
Actual Marking:
F1AL005V
Ordering Code:
FTR-F1AL005V
1
FTR-F1 SERIES
n
PART NUMBERS
Ordering Part Number
FTR-F1AL003R(-RG)
FTR-F1AL005R(-RG)
FTR-F1AL006R(-RG)
FTR-F1AL009R(-RG)
FTR-F1AL012R(-RG)
FTR-F1AL024R(-RG)
FTR-F1AL048R(-RG)
FTR-F1CL003R(-RG)
FTR-F1CL005R(-RG)
FTR-F1CL006R(-RG)
FTR-F1CL009R(-RG)
FTR-F1CL012R(-RG)
FTR-F1CL024R(-RG)
FTR-F1CL048R(-RG)
C: 2 form C
FTR-F1
L: 400 mW
A: 2 form A
Series
Contact
Coil Power
Coil
Roltage
3
5
6
9
12
24
48
3
5
6
9
12
24
48
R: 8A
RG:
Transparency
coRer
Contact
Rating
Special
Designation
n
COIL DATA CHART
400mW type
Coil
Voltage
003
005
006
009
012
024
048
Nominal
Voltage
(VDC)
3
5
6
9
12
24
48
Max. Coil
Voltage*1
6.0VDC
10.0 VDC
12.0 VDC
18.0 VDC
24.0 VDC
48.0 VDC
96.0 VDC
Coil
Resistance
(±10%)
22.5 Ω
62 Ω
90 Ω
202 Ω
360 Ω
1,440 Ω
5,760 Ω
Must Operate
Voltage*2
2.25 VDC
3.75 VDC
4.5 VDC
6.75 VDC
9 VDC
18 VDC
36 VDC
Must
Release Voltage*2
0.3 VDC
0.5 VDC
0.6 VDC
0.9 VDC
1.2 VDC
2.4 VDC
4.8 VDC
400
Nominal Power
(mW)
Note: All values in the table are measured at 20°C.
*1: No contact current at 20°C
*2: Specified values are subject to pulse wave voltage
2
FTR-F1 SERIES
n
SPECIFICATIONS
Item
Contact Arrangement
Material
Configuration
Resistance (initial)
Rating (resistive)
Maximum Carrying Current*1
Maximum Switching Rating
Maximum Switching Voltage
Maximum Switching Load*2
Coil
Nominal Power (at 20ºC)
Operate Power (at 20ºC)
Operating Temperature
Time
Value
Life
Operate (without diode)
Release (without diode)
Mechanical
Electrical
Other
Vibration
Resistance
Shock
Resistance
Weight
AC load
DC load
Misoperation
Endurance
Misoperation
Endurance
Standard Type
F1(A, C)L ( )R
Transparent Cover
F1(A, C)L ( )R-RG
2 form A (DPST-NO), 2 form C (DPDT)
Movable: gold plate silver tin oxide; Stationary: Silver tin oxide
Single
Maximum 100 mΩ at 1 A, 6 VDC
8A, 250VAC / 24VDC
8A
2,000 VA / 192W
400 VAC / 300VDC
10mA 5 VDC
400mW
225mW
-40ºC to +75°C (no frost)
-40ºC to +70°C (no frost)
Maximum 15ms (at nominal voltage, no bounce)
Maximum 5ms (at nominal voltage, no bounce)
2 x 10
7
ops minimum
5 x 10
4
ops min.
5 x 10
4
ops min.
10 to 55 Hz, at double amplitude of 1.65mm
10 to 55Hz, at double amplitude of 3.3mm
100m/s
2
(11±1ms)
1,000m/s
2
(6±1ms)
Approximately 12g
*
1
Minimum switching loads mentioned above are reference values. Please perform the confirmation test with the actual
load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.
n
INSULATION
Item
Resistance (initial)
Dielectric
Strength
open contacts
coil and contacts
adjacent contacts
Surge Voltage (coil and contact)
Clearance/Creepage
Insulation (DIN EN61810-1 VDE0435)
Voltage
Pollution
Isolation material group
Isolation category / Reference voltage
(VDE0110b)
FTR-F1
Minimum 1,000 MΩ
1,000 VAC (50/60 Hz) 1 min.
5,000 VAC (50/60 Hz) 1 min.
3,000 VAC (50/60 Hz) 1 min.
10,000 V
8 mm / 8 mm
250 V
3
IIIa
C / 250 V
1.2 x 50µs standard wave
Note
at 500 VDC
3
FTR-F1 SERIES
n
SAFETY STANDARDS
Type
UL
CSA
Compliance
UL 508
E63614
C22.2 No. 14
LR 40304
0435, 0631, 0700, 0860
Contact rating
Flammability: UL 94-V0 (plastics)
8A, 24VDC (resistive)
8A, 250 VAC (resistive)
1/6 HP, 125VAC
1/4 HP, 250VAC
Pilot duty: C300, R300
8A, 250 VAC (cosØ=1)
8 A 24VDC (0ms)
VDE
Complies with BSI, IMC, CQC, NEMKO, DEMKO, FIMKO
n

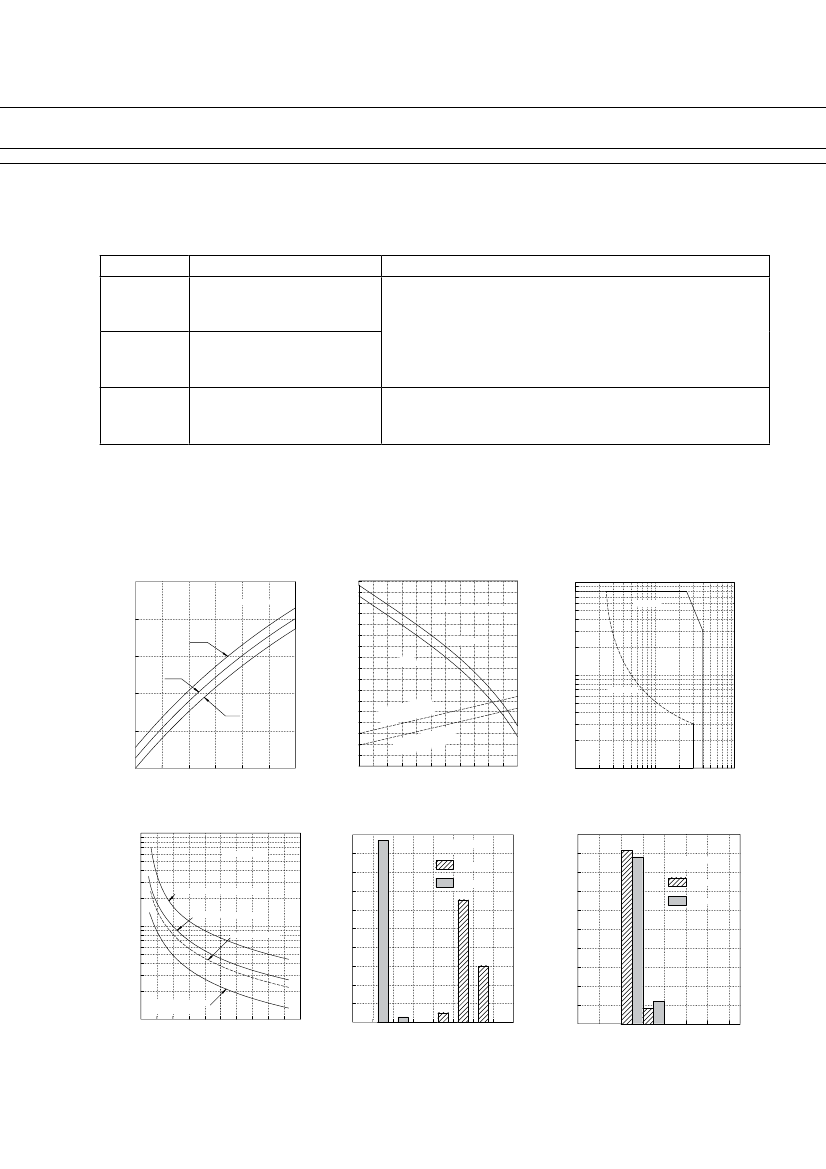

CHARACTERISTIC DATA
8A Rating Type
100
Coil temperature rise
Nominal voltage muitiplying factor
FTR-F1CL( )R
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0
20
Operating range
FTR-F1CL( )R
10
5
Maximum Switching Power
AC Resistive
Temperature
rise (ºC)
8A
60
5A
40
0A
20
0
A
8A
Contact Current (A)
80
100
80
2
1
DC Resistive
e
oltag
ate v
Oper coil
t
of ho
0.5
age
te volt
Opera coil
l
of coo
0.2
0
0
0.2
Coil Power (W)
Life Curve
0.4
0.6
0.8
1
1.2
40
60
Ambient temperature (°C)
10
20
Contact Voltage (V)
50
100
200
500 1000
100
Distribution of operate and release voltage
100
90
80
FTR-F1CL012R
N=100
100
Distribution of contact resistance
FTR-F1CL012R
N=100
Make
Break
Service life (x10 operations)
50
FTR-CL( )R
Operate
Release
80
Distribution (%)
20
10
5
AC250V COS ø=0.7
DC24V τ=7ms
60
50
40
30
20
Distribution (%)
0
10
20
30
40
50
60
70
80
AC250V / DC24 V resistive
70
60
4
40
2
1
20
AC250V Cosφ=0.4
DC24V τ=15ms
0
1
10
5
6
7
8
9
10
0
0
0
2
4
6
8
10
12
14
Contact load current (A)
2
3
4
Nominal voltage multiplying factor (%)
Contact resistance (mΩ)
4
FTR-F1 SERIES
n
DIMENSIONS
l
Dimensions
FTR-F1A type
29.0
+0.3
12.8
+0.3
l
Schematics
(BOTTOM VIEW)
l
PC board mounting
hole layout
(BOTTOM VIEW)
6-ø1.3
1
NO
16.5
+0.3
2
COM
4
NO
8
COM
7
0.4
5
5.0
20.0
(2.1)
0.4
5.0
0.4
20.0
3.3
0.9
(2.1)
(2.65)
0.3
7.5
1.0
FTR-F1C type
29.0
+0.3
12.8
+0.3
1
2
3
NO COM NC
16.5
+0.3
4
NO COM NC
8
7
6
3.3
0.3
(2.65)
7.5
1.0
0.4
5
5.0
5.0
20.0
(2.1)
0.4
0.4 0.4
5.0 5.0
20.0
0.9
(2.1)
7.5
(2.65)
6-ø1.3
7.5
(2.65)
Unit: mm
5
