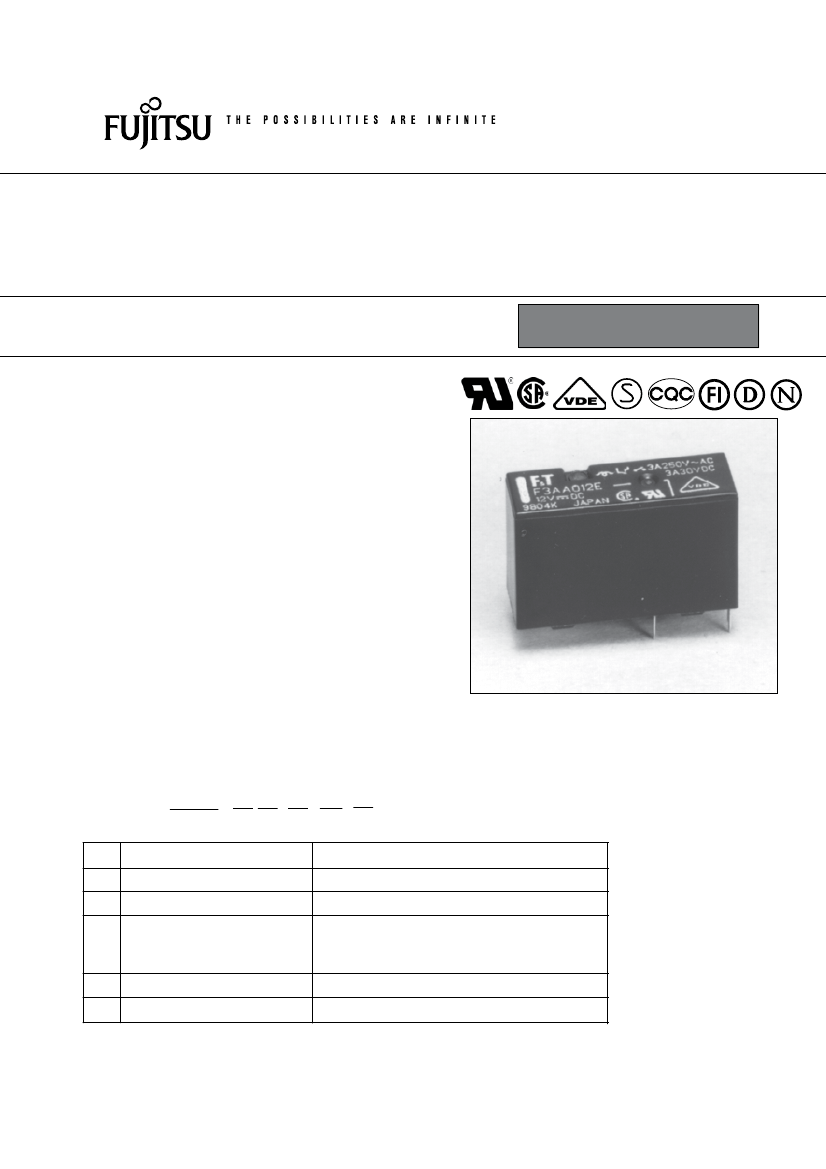

POWER RELAY
POLE 5A sLIM TYPE RELAY
FTR-F3-HA series
n
FEATuREs
HIGH DENSITY MOUNTING
Slim type with 7mm width and 142mm
2
mounting space
l
HIGH ISOLATION
Insulation Distance: Minimum 6mm between coil and
contact (conforms to IEC 60065)
Dielectric Strength: 4KV
Surge Strength: 10KV
l
HIGH COIL SENSITIVITY
Nominal coil power consumption of 200mW
l
CADMIUM FREE CONTACT FOR ECO-PROGRAM
l
SAFETY STANDARDS
UL, CSA, VDE, SEMKO, CQC
l
Plastic sealed relay
l
RoHS compliant since date code: 0435R1, 0432R2,
0429R3, 0434R4, 0437L2
Please see page 6 for more information
l
RoHs compliant
n
ORDERING INFORMATION
[Example]
FTR-F3 A A 012 E –HA
(a) b) (c) (d) (e) (f )
(
(a)
(b)
(c)
(d)
(e)
(f)
Series Nam e
Contact Arrangemen t
Coil Typ e
Coil Nominal Voltag e
Contact Materia l
Contact Ratin g
FTR-F 3
A : 1 Form A (SPST-NO )
A : Standard (200mW )
005 : 5DC
006 : 6DC
009 : 9DC
012 : 12DC
018 : 18DC
024 : 24DC
E : Silver nickel
HA : 5A sealing confirmed
Remarks: Actual marking on relay would not carry code FTR and be as below:
Ordering code
FTR-F3AA012E →
Actual marking
F3AA012E
FTR-F3-HA sERIEs
n
PART NuMBERs
Ordering Part Number
FTR-F3AA005E-HA
FTR-F3AA006E-HA
FTR-F3AA009E-HA
FTR-F3AA012E-HA
FTR-F3AA018E-HA
FTR-F3AA024E-HA
FTR-F3
1 form A
Standard
(200 mW)
Series
Contact
Coil
Power
Coil
Voltage
5
6
9
12
18
24
Silver nickel
5A
Contact
Material
Contact Rating
n
COIL DATA CHART
Coil
Voltage
005
006
009
012
018
024
Nominal
Voltage
(VDC)
5
6
9
12
18
24
Max. Coil
Voltage*1
12.0 VDC
14.4 VDC
21.6 VDC
28.8 VDC
43.2 VDC
57.6 VDC
Coil
Must Operate
Resistance
Voltage*2
( ±10%)
125 Ω
180 Ω
405 Ω
720 Ω
1,620 Ω
2,880 Ω
3.75 VDC
4.5 VDC
6.75 VDC
9.0 VDC
13.5 VDC
18.0 VDC
Must
Release
Voltage*2
0.5 VDC
0.6 VDC
0.9 VDC
1.2 VDC
1.8 VDC
2.2 VDC
200 mW
Coil
Power
Note: All values in the table are measured at 20°C.
*1: No contact current at 20°C
*2: Specified values are subject to pulse wave voltage
2
FTR-F3-HA sERIEs
n
sPECIFICATIONs
Item
Contact
Arrangement
Material
Configuration
Resistance (initial)
Rating
Maximum Carry Current
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Load*1
Coil
Rating Power
Must Operate Power
Operating Temperature
Time Value Operate Time (without diode)
Release Time (without diode)
Life
Other
Mechanical
Electrical
Vibration
Resistance
Shock
Resistance
Weight
Misoperation
Endurance
Misoperation
Endurance
FTR-F3 AA ( ) E-HA
1 form A (SPST-NO)
Silver nickel
Single
Maximum 100 mΩ at 6 VDC, 1 A
5 A, 250 VAC / 30 VDC
5A
1,250 VA / 150 W
277 VAC / 30VDC
10 mA 5 VDC
200 mW
113 mW
-40ºC to +70ºC (no frost)
Maximum 10 ms
Maximum 10 ms
5 x 10
6
operations minimum
100 x 10
3
operations minimum
10 to 55 Hz, at double amplitude of 1.5 mm
10-55Hz, at double amplitude of 1.5 mm
Min. 100m/s
2
(11±1ms)
Approximately 4g
Min. 1,000m/s
2
(6±1ms)
*
1
Minimum switching loads mentioned above are reference values. Please perform the confirmation test with the actual
load before production since reference values may vary according to switching frequencies, environmental conditions and
expected reliability levels.
n
INsuLATION
Item
Resistance (500 VDC)
Dielectric
Strength
open contacts
coil and contacts
FTR-F3
Minimum 1,000 MΩ
750 VAC (50/60 Hz) 1 min.
4,000 VAC (50/60 Hz) 1 min.
10,000 V (1.2 x 50µs standard wave)
6 mm / 6 mm
250 V
2
IIa
Surge Voltage (coil and contact)
Clearance/Creepage
Insulation (DIN EN61810-1 VDE0435)
Voltage
Pollution
Isolation material group
Isolation category / Reference voltage (VDE01106) C / 250 V
3
FTR-F3-HA sERIEs
n sAFETY
sTANDARDs
Type
UL
Compliance
UL 508
E63614
CSA
VDE
SEMKO
C22.2 No. 14
LR 40304
0435
EN 61058-1: 1992 +A1:1993
EN 61095:1993+A11
Contact rating
Flammability: UL 94-V0 (plastics)
5A, 30 VDC/ 277 VAC (resistive)
1/10 HP, 250VAC /125VAC
1/8 HP, 277VAC
Pilot duty: D300, 120 VAC / 240 VAC
5A, 250 VAC / 30 VDC 85ºC
4A, 250 VAC break 1A cosØ=0.8, 85C
5A, 250 VAC
40T70
n

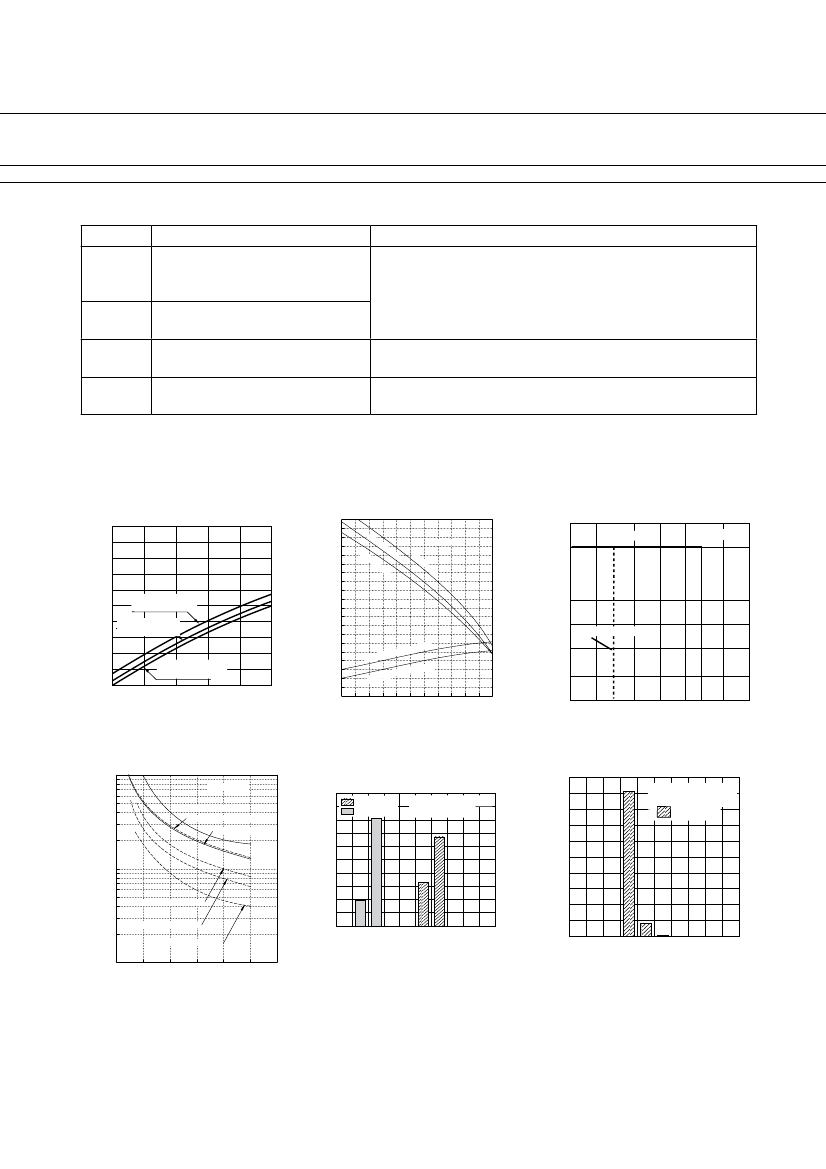

CHARACTERIsTIC DATA
Nominal Voltage Mult. Factor
100
90
80
70
60
50
40
30
20
10
0
Coil temperature rise
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
Operating Range
3A
5A
0A
10
5
Maximum Switching Power
AC Resistive
FTR-F3
FTR-F3
Temperature rise (°C)
Contact Current (A)
3
5A carrying current
on contact
3A carrying current
on contact
2
1
0.5
0.2
10
20
50
100
200
500
Non carrying current
on contact
lt
ting vo
Opera
ol coil)
ge (co
g volta
tin
Opera
0 10 20 30 40 50 60 70 80 90 100 110
ot coil
age (h
)
DC Resistive
0
0.1
0.2
0.3 0.4
Coil power (W)
0.5
Ambient Temperature (ºC)
Contact Voltage (V)
100
Life Curve
FTR-F3-HA
Distribution of operate and release voltage
100
80
Operate
Release
FTR-F3AA012E-HA
n=100
100
80
Distribution (%)
Distribution of contact resistance
FTR-F3AA012E
n=100
Service life (x10
4
operations)
50
AC125 V
Distribution (%)
AC250V/DC30V
AC125V cosφ=0.4
Make
20
10
5
60
40
20
0
20
40
60
80
100
60
40
20
0
4
8
12
16
20
AC250V cosφ=0.4
DC30V τ=7ms
DC30V τ=15ms
2
1
Nominal voltage multiplying factor (%)
4
5
6
0
Contact load current (A)
1
2
3
Contact resistance (mΩ)
4
FTR-F3-HA sERIEs
n
DIMENsIONs
l Dimensions
l Schematics
(BOTTOM VIEW)
7.0
+0.2
(.275
+.012
)
l PC
board mounting
hole layout
(BOTTOM VIEW)
4-ø1.1(.043)
20.3
+0.2
(.799
+.008
)
1
15.0
+0.3
(.590
+.012
)
2
COM
NO
4.7(.185)
0.5(.020)
1.32(.052)
0.35(.014)
1.32(.052)
f0.45(.017)
f0.45(.017)
2.7
(.106)
8.8(.346)
7.0(.276)
3.3
(.138)
4
3
2.7
(.106)
8.8(.346)
7(.276)
0.35(.014)
0.8(.031)
4.7
(.185)
1.25(.049)
1.25(.049)
5
