RP131H441B-T1-F

Description
Fixed Positive LDO Regulator, 4.4V, 0.65V Dropout, CMOS, PDSO5, ROHS COMPLIANT, SOT-89, 5 PIN
CategoryPower/power management    The power supply circuit
File Size146KB,2 Pages
ManufacturerRICOH Electronic Devices Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

RP131H441B-T1-F Overview

Fixed Positive LDO Regulator, 4.4V, 0.65V Dropout, CMOS, PDSO5, ROHS COMPLIANT, SOT-89, 5 PIN

RP131H441B-T1-F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRICOH Electronic Devices Co., Ltd.
Parts packaging codeSOT-89
package instructionROHS COMPLIANT, SOT-89, 5 PIN
Contacts5
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum drop-back voltage 10.65 V
Maximum input voltage6.5 V
Minimum input voltage1.6 V
JESD-30 codeR-PDSO-F5
JESD-609 codee6
length4.5 mm
Number of functions1
Number of terminals5
Maximum output current 11 A
Maximum output voltage 14.444 V
Minimum output voltage 14.356 V
Nominal output voltage 14.4 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSOF
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.6 mm
surface mountYES
technologyCMOS
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal formFLAT
Terminal pitch1.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width2.5 mm

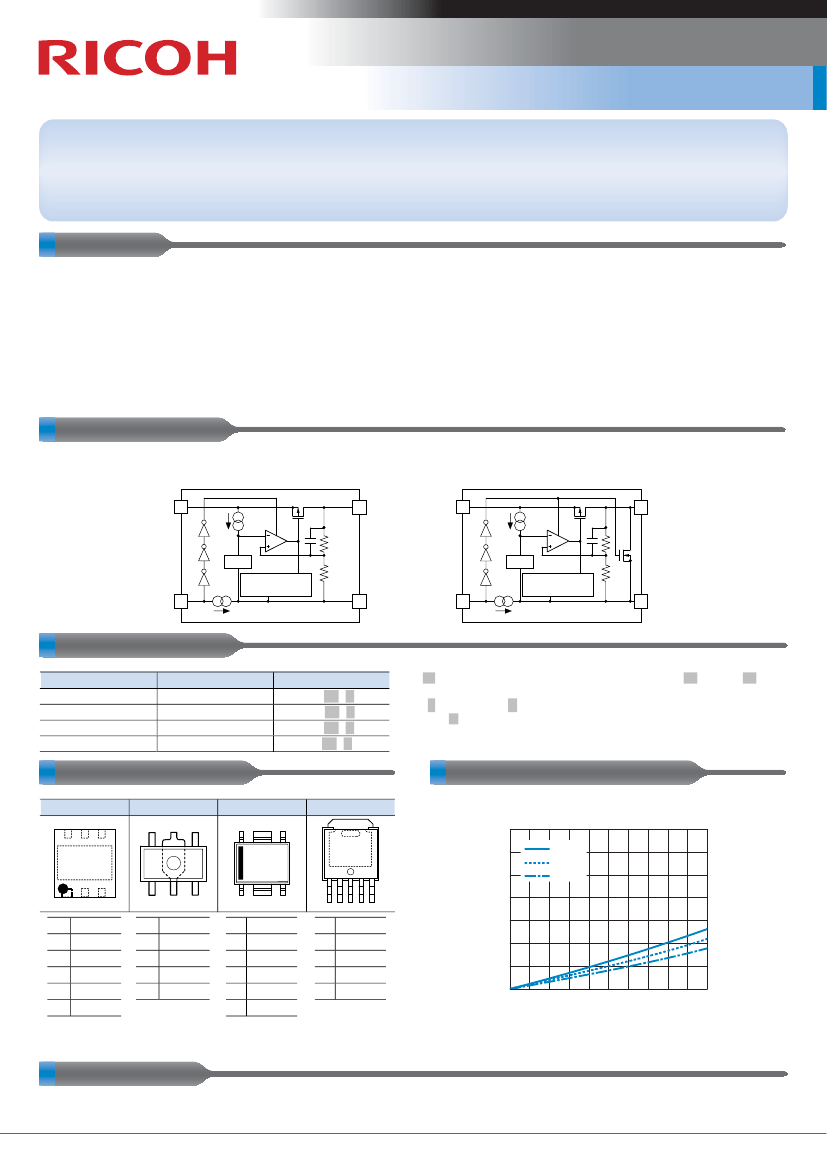

RP131x Series
1A LDO
The RP131x Series are CMOS-based LDO regulators featuring 1A output with low on-resistance. The CMOS process provides both
large output current and low supply current. The dropout voltage is significantly lower than bipolar regulators. The RP131x handles
low voltage with an input voltage from 1.6V and an output voltage from 0.8V. Accordingly, the device supports highly integrated, low
voltage-driven LSI as a rear stage of the DC/DC converter. The CE pin can switch the regulator into standby mode. In addition to a
fold-back protection circuit built into conventional LDO regulators, RP131x has a thermal shutdown circuit and inrush current limit
circuit. Ceramic capacitors can be used.
FEATURES
Supply Current (I
SS
) ························Typ. 65μA (V
IN
=6.5V)
Standby Current (I
standby
) ·················Typ. 0.15μA (Same as above, CE=“L”)
Dropout Voltage (V
DIF
) ····················Typ. 0.5V (I
OUT
=1A, V
OUT
=2.8V)
Ripple Rejection (RR)·····················Typ. 70dB (f=1kHz, V
OUT
<
3.3V),
=
Typ. 60dB (f=1kHz, V
OUT
>3.3V)
Input Voltage Range (V
IN
) ···············1.6V to 6.5V
Output Voltage Range (V
OUT
)··········0.8V to 5.0V (internally fixed)
Output Voltage Accuracy ················± 1%
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
Line Regulation·······························Typ. 0.05%/V
Fold-back Protection Circuit············Current limit Typ. 250mA
Inrush Current Limit Circuit ·············Typ. 500mA
Thermal Shutdown Circuit ··············Stops at 165°C.
Packages ········································DFN (PLP)1820-6,
SOT-89-5, HSOP-6J
TO-252-5-P2
Ceramic capacitors can be used. ···2.2μF or more (V
OUT
<
3.6V)
=
4.7μF or more (V
OUT
>
3.6V)
(The above shows specification at Topt=25
°
C. Design assurance value at -40
°
C
<
Topt
<
85
°
C is also available. For details, please refer to the datasheet.)
=
=
BLOCK DIAGRAMS
R131xxx1B
(Without Auto-Discharge function)
V
DD
V
OUT
V
DD
R131xxx1D
(With Auto-Discharge function)
V
OUT
Vref
Current Limit
Thermal Shutdown
Vref
Current Limit
Thermal Shutdown
CE
GND
CE
GND
SELECTION GUIDES
Package
DFN(PLP)1820-6
SOT-89-5
HSOP-6J
TO-252-5-P2
Quantity per Reel
5,000 pcs
1,000 pcs
1,000 pcs
3,000 pcs
Part No.
RP131K.xx.1.
-TR
RP131H.xx.1.
-T1-F
RP131S.xx.1.
-E2-F
RP131J.xx.1.
-T1-F
.xx.
: Specify the output voltage within the range 0.8V(.08.) to 5.0V(.50.)
in 0.1V steps.
.∗
: Select from (.B.) without auto-discharge function or
(.D.) with auto-discharge function.
PACKAGES (Top View)
DFN(PLP)1820-6
6
5
4
TYPICAL CHARACTERISTIC
TO-252-5-P2
RP131x331x
1.4
SOT-89-5
5
4
HSOP-6J
6
5
4
Dropout Voltage vs. Output Current
85°C
25°C
- 40°C
Dropout Voltage V
DIF
(V)
1.2
1.0
0.8
0.6
0.4
0.2
0
1
2
3
1
2
3
1
2
3
1
2
3
4
5
1
2
3
4
5
6
V
OUT
1
V
OUT
1
GND
CE
V
DD
1
V
DD
1
1
2
3
4
5
NC
GND
CE
V
DD
V
OUT
1
2
3
4
5
6
V
OUT
GND
1
NC
CE
GND
1
V
DD
1
2
3
4
5
V
OUT
GND
1
GND
1
CE
V
DD
0 100 200 300 400 500 600 700 800 900 1000
Output Current I
OUT
(mA)
) The tab is substrate level (GND).
∗1)
The V
OUT
pin, V
DD
pin and GND pin must be wired each other when it is mounted on board.
APPLICATIONS
Power source for hand-held communication equipment, cameras, and VCRs
Power source for battery-powered equipment
No.EK-174-091101
Power source for laptop personal computers and home appliances
CMOS LDO Regulator
