R596833009

Description
RF Relay, SPDT, Latched, 0.032A (Coil), 24VDC (Coil), 768mW (Coil), 8000MHz, 5W (RF Input), DC Input, Surface Mount-Straight, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size348KB,6 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

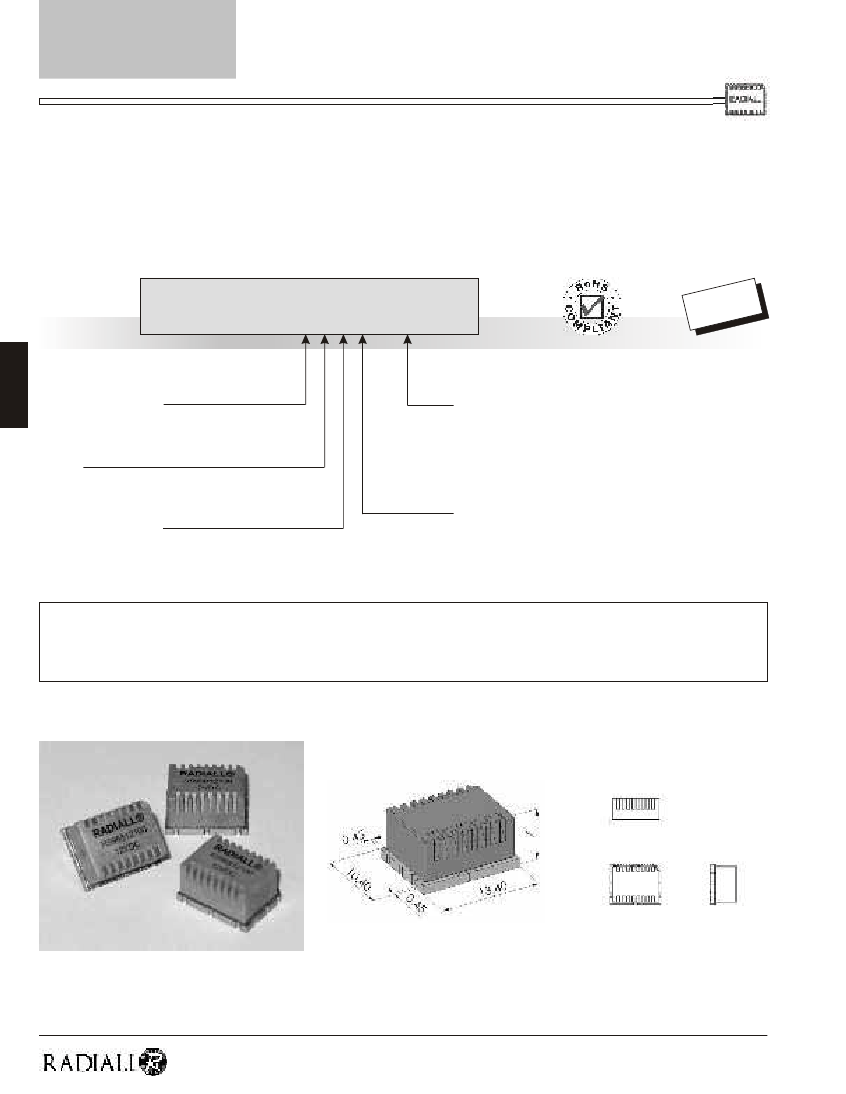

R596833009 Overview

RF Relay, SPDT, Latched, 0.032A (Coil), 24VDC (Coil), 768mW (Coil), 8000MHz, 5W (RF Input), DC Input, Surface Mount-Straight, ROHS COMPLIANT

R596833009 Parametric

Parameter NameAttribute value
MakerRadiall
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width10.4 mm
body height7 mm
Body length or diameter13.4 mm
Characteristic impedance50 Ω
Maximum coil current (DC)0.032 A
Coil power768 mW
Coil resistance865 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Electrical life500000 Cycle(s)
Maximum input power5 W

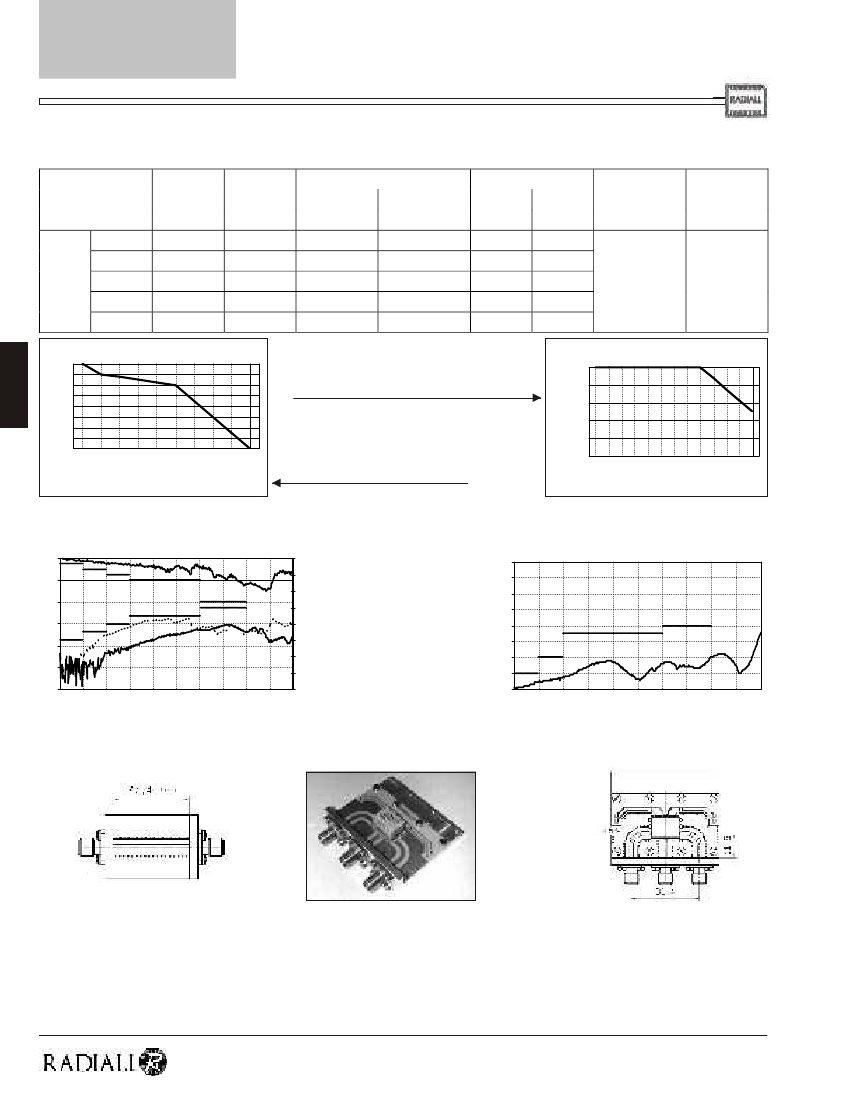

Maximum insertion loss0.8 dB
Maximum isolation30 dB
Manufacturer's serial numberR596
Installation featuresSURFACE MOUNT-STRAIGHT
Maximum operating frequency8000 MHz
Minimum operating frequency
Maximum operating temperature70 °C
Minimum operating temperature-20 °C

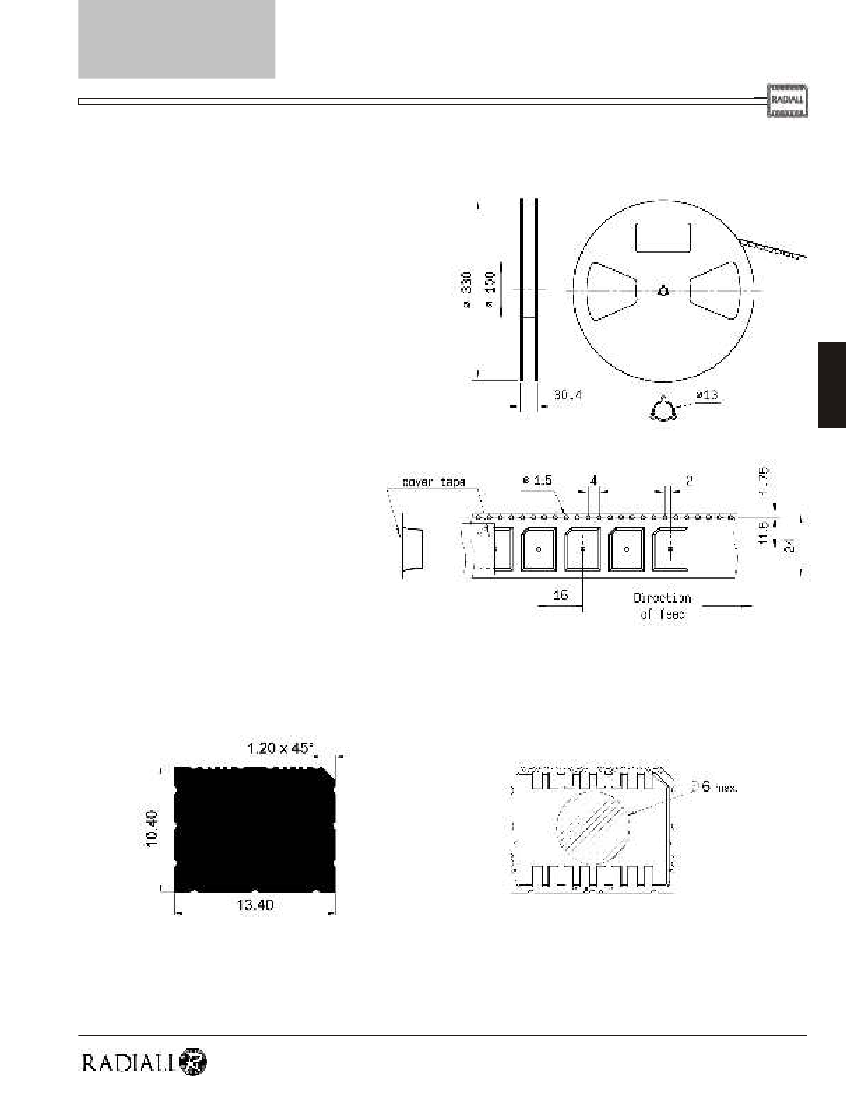

method of packingBULK

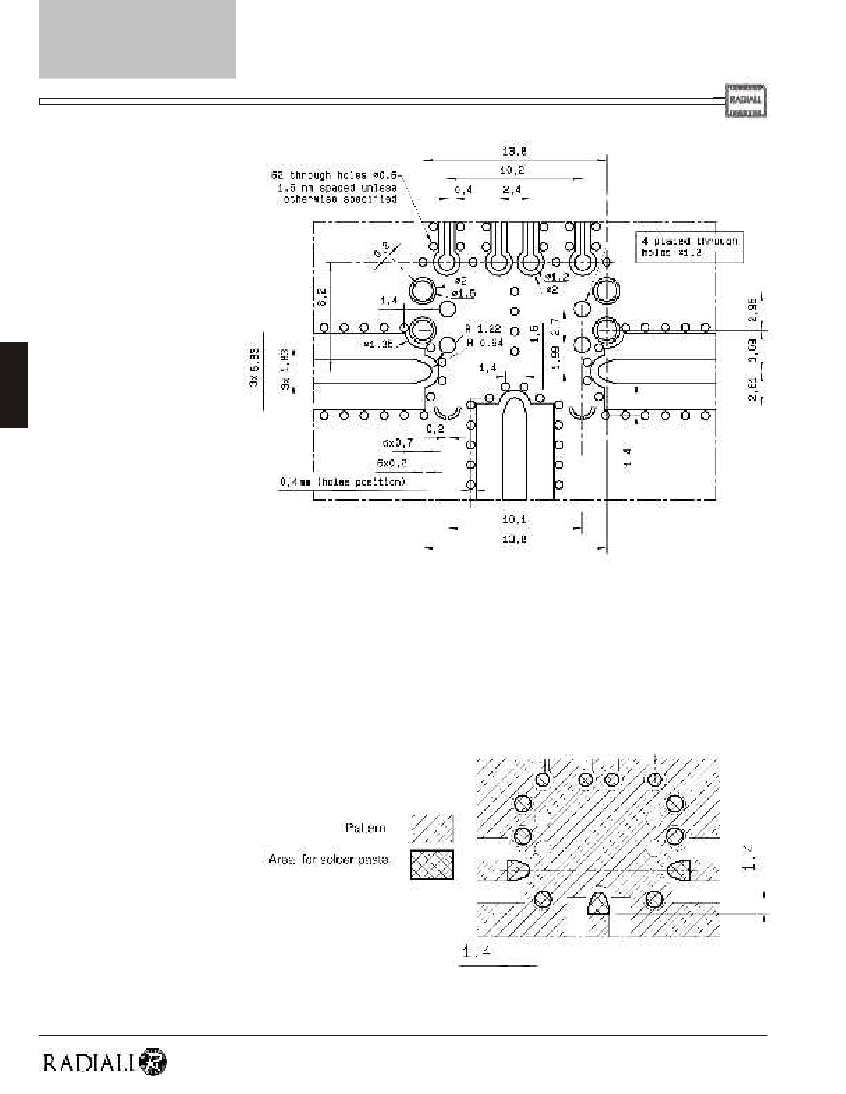

physical size13.4mm x 10.4mm x 7mm

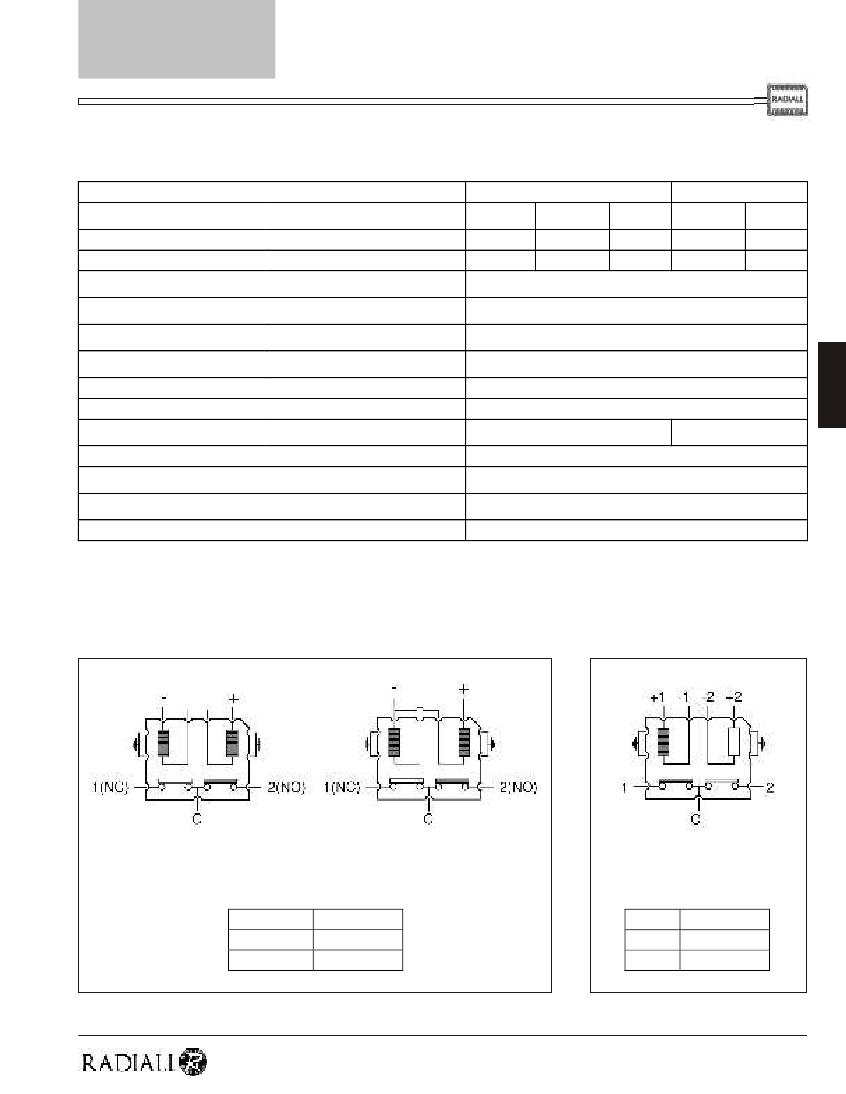

Relay actionLATCHED
Relay functionSPDT
Relay typeRF RELAY
sealIP67
surface mountNO
switching time4 ms
Termination typeSOLDER
voltage standing wave ratio1.4
