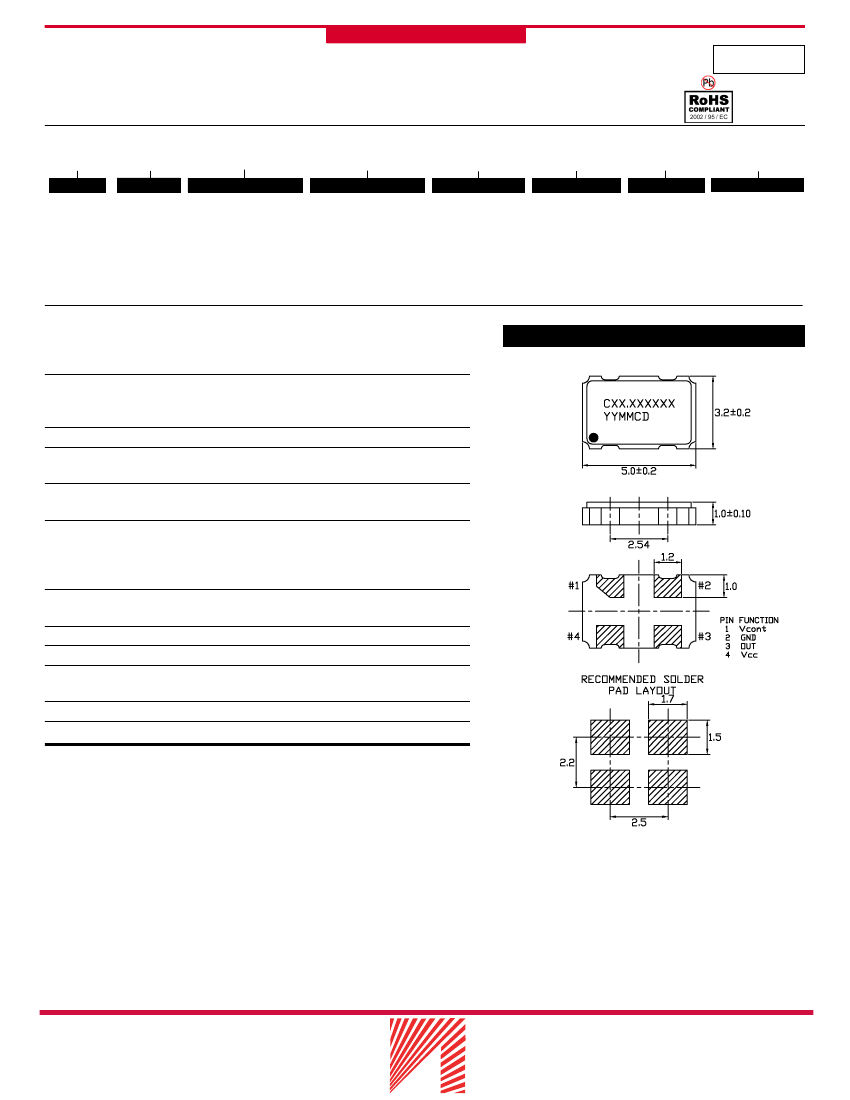

Ceramic Surface Mount Oscillator

• 5.0 x 3.2 x 0.95 (L x W x H)

• Small size

CARDINAL COMPONENTS

Series CC137

Part Numbering Example: CC137 L Z - A0 B2 45 - 33.333 TS

CC137

SERIES

CC137

L

Z

A0

B2

45

33.333

TS

VOLTAGE

Blank = 5V

L = 3.3V

ADDED FEATURES

OPERATING TEMP.

BLANK = BULK PACK A0=-10°C ~+60°C

Z = TAPE AND REEL

STABILITY

Blank = ±100 ppm

B2 = ± 50 ppm

B3 = ± 30 ppm

FREQUENCY

TRI STATE

SYMMETRY

Blank = 40/60%

Tri State Standard

45 = 45/55%

Specifications:

Frequency Range:

1.500 MHz to 100 MHz

Available Stability Options:

±100 ppm

±50 ppm

±30 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

TTL/HCMOS

+5.0 VDC ±10%

+3.3 VDC ±10%

-10°C to +60°C

TTL V

OL

= 0.4 V Max.

TTL V

OH

= 2.4 V Min.

HCMOS V

OL

= 10% V

DD

V Max.

HCMOS V

OH

= 90% V

DD

V Min.

10 TTL, 15 pf CMOS @+5 VDC

5 TTL, 15 pf CMOS @+3.3 VDC

20 mA

10 nsec

40/60%

45/55%

-40°C to +85°C

Tape and Reel (1K per Reel)

CC137

Output Load:

Maximum Input Current:

Maximum Rise/Fall Time:

Duty Cycle:

Storage Temperature:

Packaging:

155 Route 46 West

Wayne, NJ 07470

Rev: C-090414-11

Cardinal Components, Inc.

O-16

TEL:

(973)785-1333

E-MAIL: sales@cardinalxtal.com

WEB: http://www.cardinalxtal.com
