Crimp
SHLD
CONNECTOR
Disconnectable Crimp style connectors
locking system is also available.
Emboss Tape
1.0mm
(.039") pitch
Features ––––––––––––––––––––––––
• Secure housing lock structure (for locking type)
Innovative designs of the arm and lock device achieve a secure
locking structure, which also realizes a space saving feature.
In order to realize more space saving, housing without secure
• Prevent deformation of contacts
The spring property of the header housing and pin-shaped
contacts prevent deformation during harness manufacturing.
• A contact lock structure
A contact lock provides a good "click feeling" when mated (even
without a housing lock), which prevents improper mating during
assembly.
• Strong structure against external force
Thicker housing walls of the header prevent deformation.

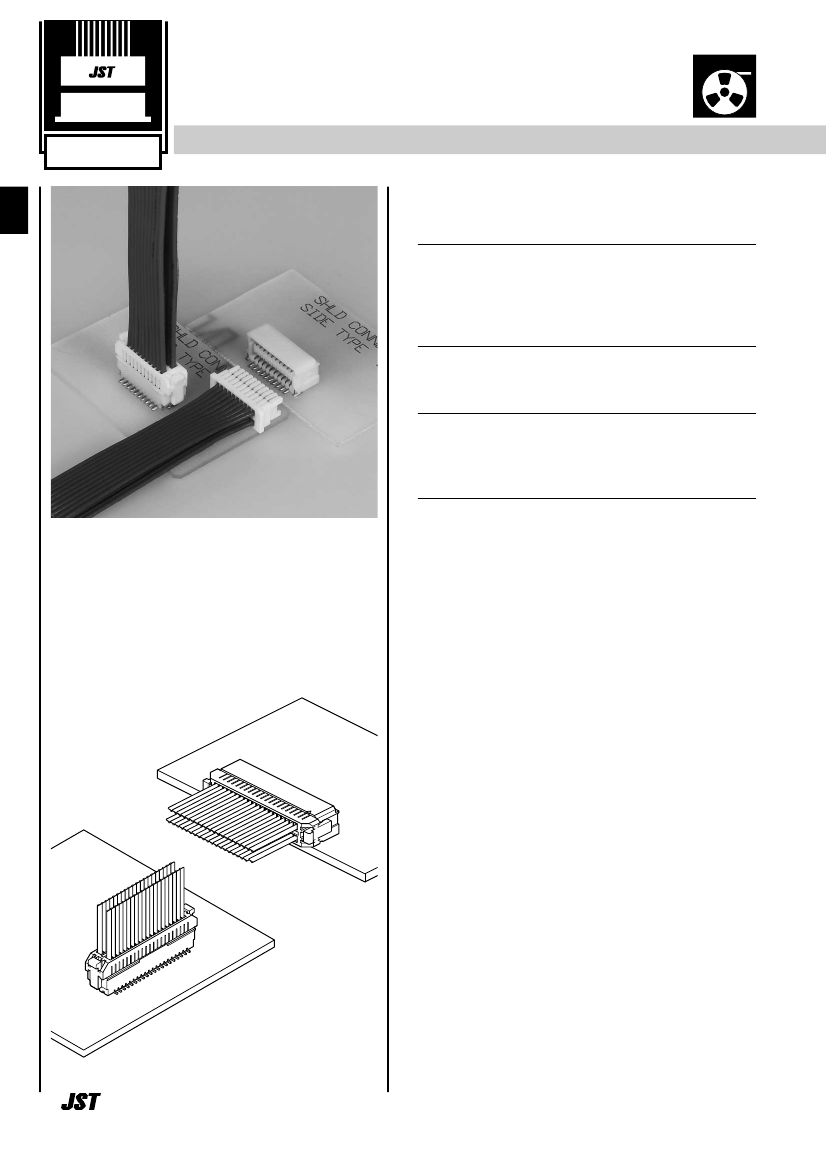

Developed for PDP, LCD or small
electronics equipment.
This is a dual-row small crimp type
connector with a secure locking system or
without-designed for different applications.
The PC board layout is compatible with
that of existing SHD/SRD connectors,
which allows for replacement of the above
existing connectors.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance:
100M
Ω
min.
• Withstanding voltage: 500V AC/minute
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
14
SHLD
Model No.
4.75(.187)
2.0(.079)
0.5
(.020)
0.8
(.031)
2.35(.093)
0.8
(.031)
0.4
(.016)
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
mm
2
AWG#
32 to 28
Insulation O.D. mm(in.) Q'ty / reel
0.4 to 0.8(.016 to .031)
30,000
SSHL-003GA1-P0.2
0.032 to 0.08
Material and Finish
Phosphor bronze, nickel-undercoated, selective gold-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
B
A
1.0(.039)
2.6(.102)
5.7(.224)
Model No.
SHLDP-20V-S
SHLDP-30V-S
SHLDP-40V-S
A
Dimensions mm(in.)
B
C
11.4(.449)
16.4(.646)
21.4(.843)
13.0(.512)
18.0(.709)
23.0(.906)
Q'ty / bag
3,500
2,500
2,000
20
30
40
9.0(.354)
14.0(.551)
19.0(.748)
Material
PBT, UL94V-0, natural
Circuit No.1 mark
C
4.6(.181)
With secure lock type
With secure lock type
B
A
1.0(.039)
2.6
(.102)
5.7(.224)
6.0(.236)
Circuits
20
30
Model No.
SHLDP-20V-S-1
SHLDP-30V-S-1
Dimensions mm(in.)
A
B
C
9.0(.354)
14.0(.551)
14.7(.579)
19.7(.776)
15.7(.618)
20.7(.815)
Q'ty / bag
3,500
2,000
Material
PBT, UL94V-0, natural
Circuit No.1 mark
C
4.6(.181)
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
Circuits
20
30
4.05
(.159)
40
Model No.
Top entry type
BM20B-SHLDS-G-TFT
BM30B-SHLDS-G-TFT
BM40B-SHLDS-G-TFT
Model No.
Side entry type
SM20B-SHLDS-G-TF
SM30B-SHLDS-G-TF
SM40B-SHLDS-G-TF
Dimensions mm(in.)
A
B
9.0(.354)
14.0(.551)
19.0(.748)
13.0(.512)
18.0(.709)
23.0(.906)
Q'ty / reel
1,000
1,000
1,000
0.2
1.0
(.008) (.039)
A
B
1.5
(.059)
5.0(.197)
0.8(.031)
Circuits
20
30
40
Dimensions mm(in.)
A
B
9.0(.354)
14.0(.551)
19.0(.748)
13.0(.512)
18.0(.709)
23.0(.906)
Q'ty / reel
1,000
1,000
1,000
Material and Finish
Side entry type
Circuit No.1
5.45(.215)
Contact: Phosphor bronze, nickel-undercoated, gold-plated
Wafer: Polyamide, UL94V-0, natural
Solder tab: Brass, copper-undercoated, tin-plated
0.2(.008)
1.0
A (.039)
B
1.45 0.75
(.057) (.030)
0.55(.022)
1.5(.059)
5.4(.213)
15
SHLD
CONNECTOR

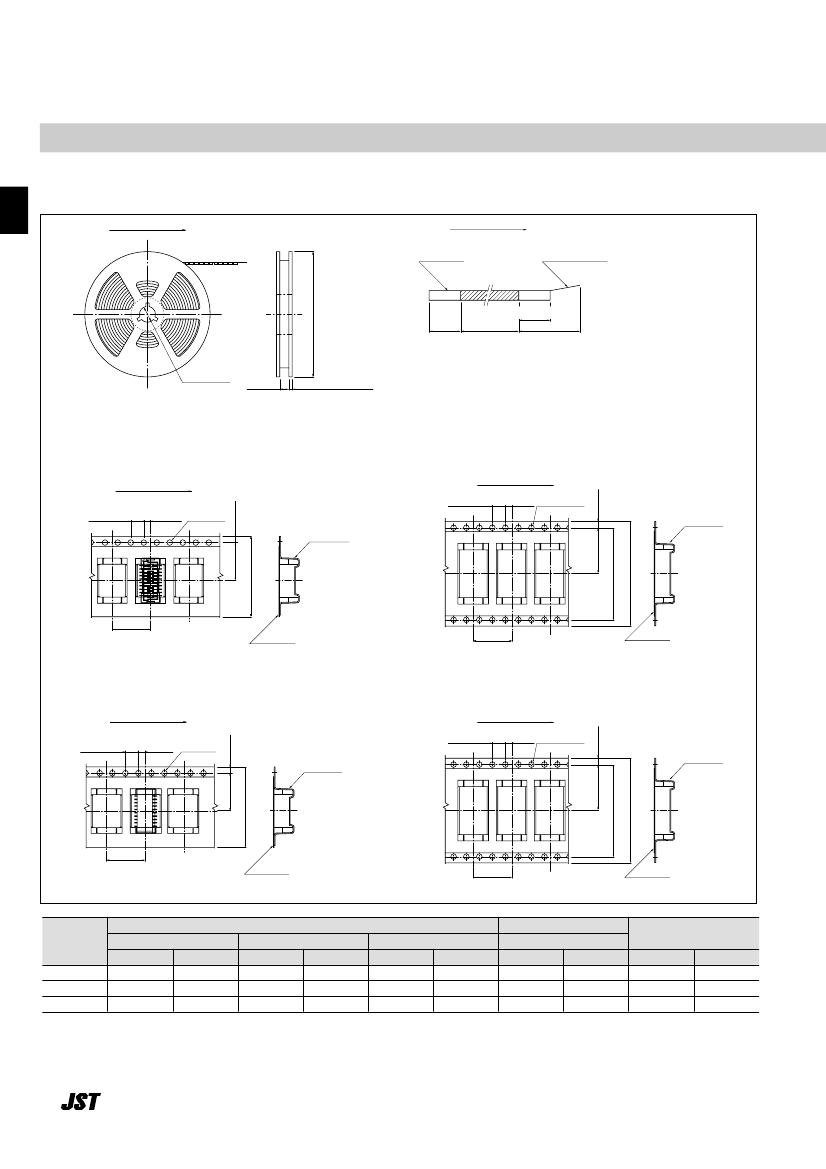

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
Carrier tape
380±2.0(14.961±.079)dia.
Cover tape leader
Leader part
100(3.937)min.
The end part Connector
160(6.299)min. mounting part 400(15.748)min.
[13(.512)dia.]
W1
+2.5
(
+.098
)
-1.0 -.039
2.0±0.5(.079±.020)dia.
Top entry type
(20 circuits)
Feeding direction
4.0±0.1
(.157±.004)
2.0±0.1 1.55±0.05
(.079±.004) (.061±.002)dia.
1.75±0.1
(.069±.004)
(30, 40 circuits)
1.75±0.1
(.069±.004)
Feeding direction
4.0±0.1
2.0±0.1 1.55±0.05
(.157±.004)
(.079±.004) (.061±.002)dia.
Carrier tape
Carrier tape
F±0.1(.004)
F±0.1(.004)
12.0±0.1
(.472±.004)
W±0.3(.012)
W±0.3(.012)
Cover tape
Cover tape
12.0±0.1
(.472±.004)
Side entry type
(20 circuits)
Feeding direction
1.75±0.1
(.069±.004)
4.0±0.1
(.157±.004)
2.0±0.1 1.55±0.05
(.079±.004) (.061±.002)dia.
(30, 40 circuits)
1.75±0.1
(.069±.004)
Feeding direction
4.0±0.1
2.0±0.1 1.55±0.05
(.157±.004)
(.079±.004) (.061±.002)dia.
S±0.1(.004)
Carrier tape
F±0.1(.004)
Carrier tape
F±0.1(.004)
W±0.3(.012)
12.0±0.1
(.472±.004)
Cover tape
W±0.3(.012)
Cover tape
12.0±0.1
(.472±.004)
Dimensions mm(in.)
Circuits
F
11.5(.453)
14.2(.559)
20.2(.795)
11.5(.453)
14.2(.559)
20.2(.795)
-
28.4(1.118)
40.4(1.591)
Reel dimensions mm(in.)
W
W1
24.0( .945)
32.0(1.260)
44.0(1.732)
25.5(1.004)
33.5(1.319)
45.5(1.791)
25.5(1.004)
33.5(1.319)
45.5(1.791)
1,000
1,000
1,000
S±0.1(.004)
S
-
28.4(1.118)
40.4(1.591)
24.0( .945)
32.0(1.260)
44.0(1.732)
Q'ty / reel
Top entry type Side entry type Top entry type Side entry type Top entry type Side entry type Top entry type Side entry type Top entry type Side entry type
20
30
40
1,000
1,000
1,000
Note:
1. Specifications conform to JIS C 0806. The tape width, connector loading recess square hole dimensions, etc. are determined by the number of circuits and
external shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
16
SHLD
Top entry type
6.6(.260)
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Side entry type
0.6 0.9±0.1
(.024) (.035±.004)
0.85±0.1
(.033±.004)
5.4(.213)
4.6(.181)
1.0±0.1
(.039±.004)
1.0±0.1
(.039±.004)
1.6
1.6
(.063) 4.1(.161) (.063)
0.6(.024)
No.1 circuit
Connector outline
1.8±0.1
(.071±.004)
9.05(.356)
6.7(.264)
5.4(.213)
7.2(.283)
4.0(.157)
4.2(.165)
7.3(.287)
No.1 circuit
1.8±0.1
(.071±.004)
0.85±0.1
(.033±.004)
1.25±0.1(.049±.004)
Note:
1. Tolerances are non-cumulative:
±
0.1mm (
±
.004") for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SSHL-003GA1-P0.2
Crimp applicator MKS-L-10-3
with safety cover
without safety cover
APLMK SSH/L003-02
APLNC SSH/L003-02
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
0.9(.035)
Strip-crimp applicator MKS-SC
with safety cover
APLSC SSH/L003-02
5.6(.220)
0.5
(.020)
17
