DG185BP datasheet, PDF - EEWORLD Datasheet

DG185BP: DescriptionDPST, 2 Func, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size325KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

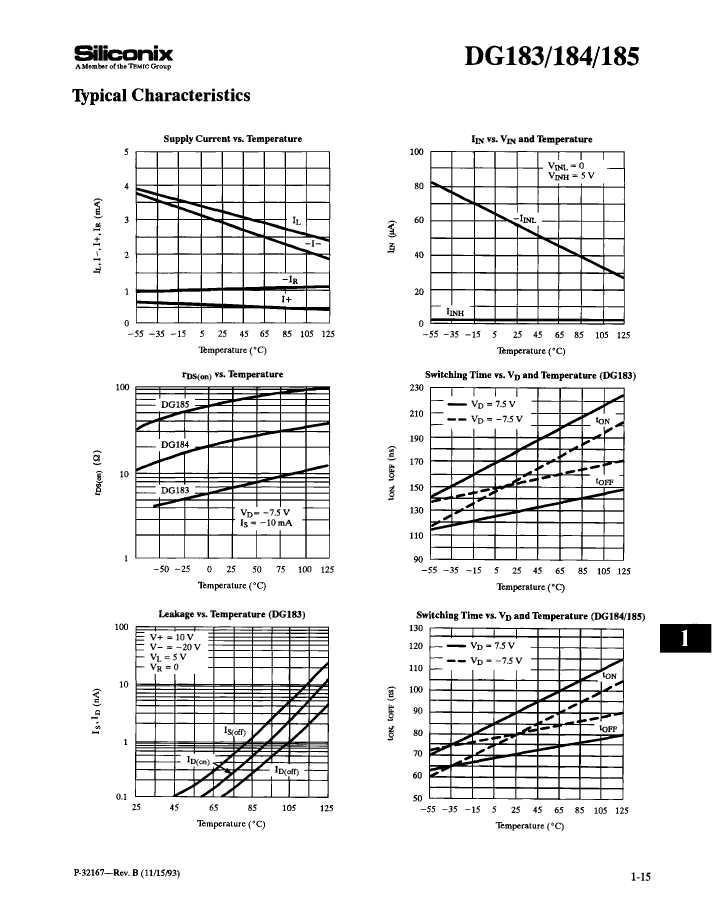

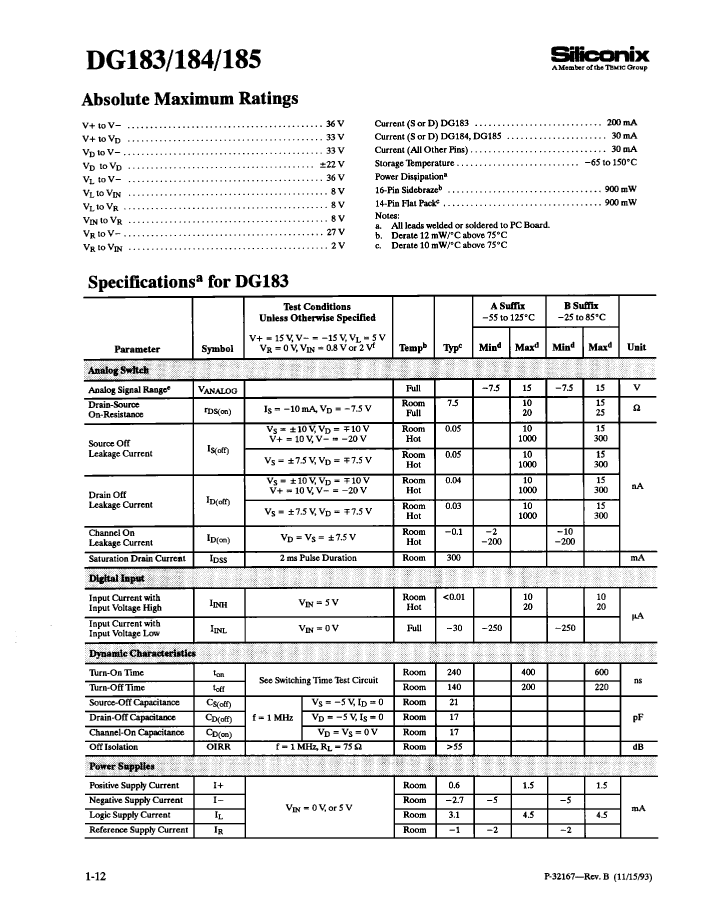

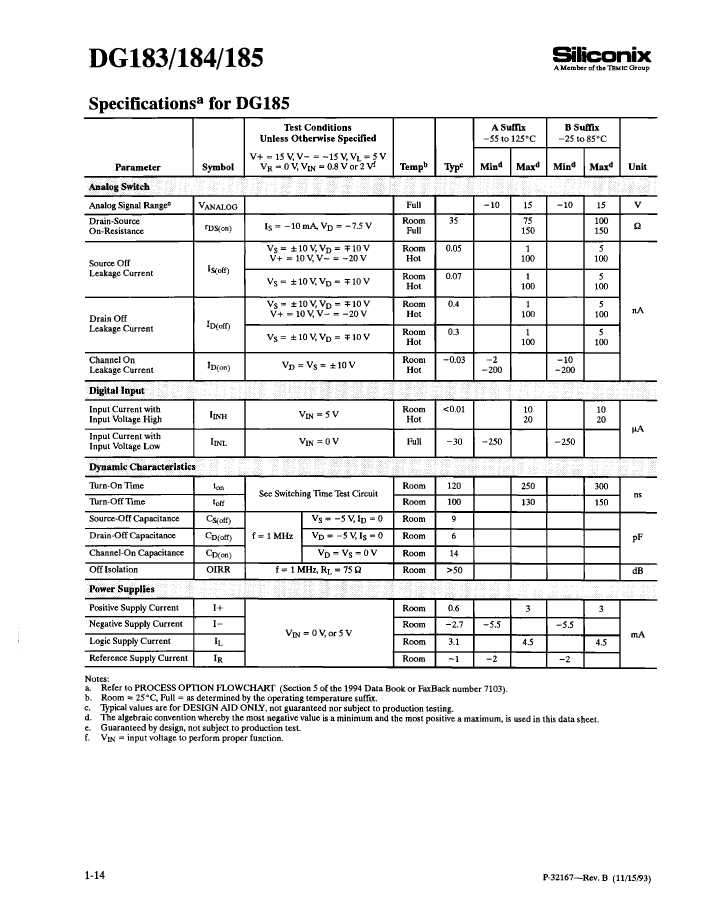

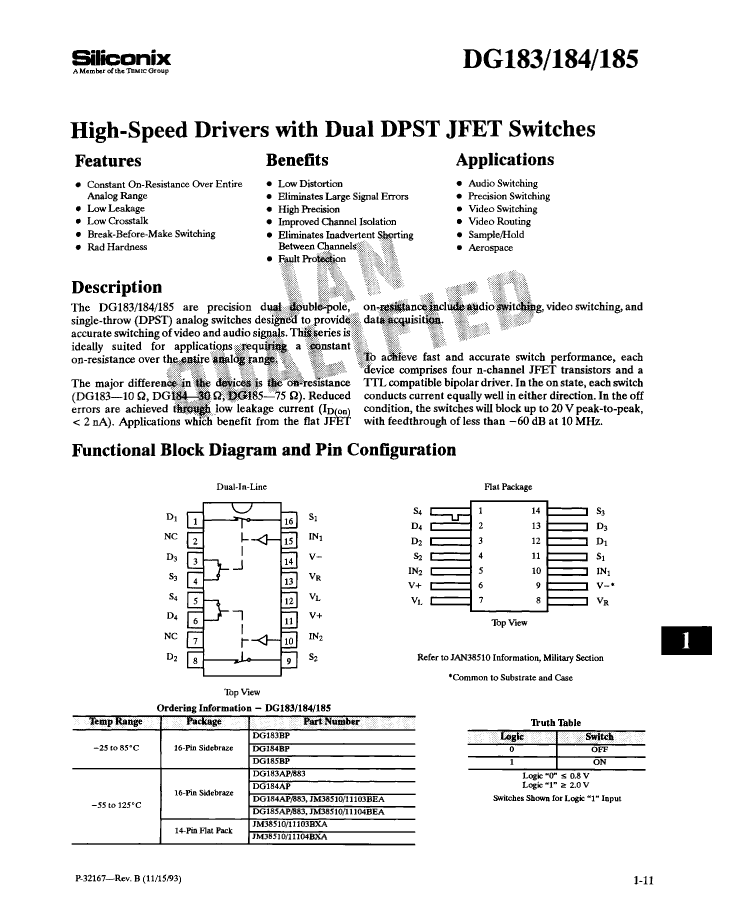

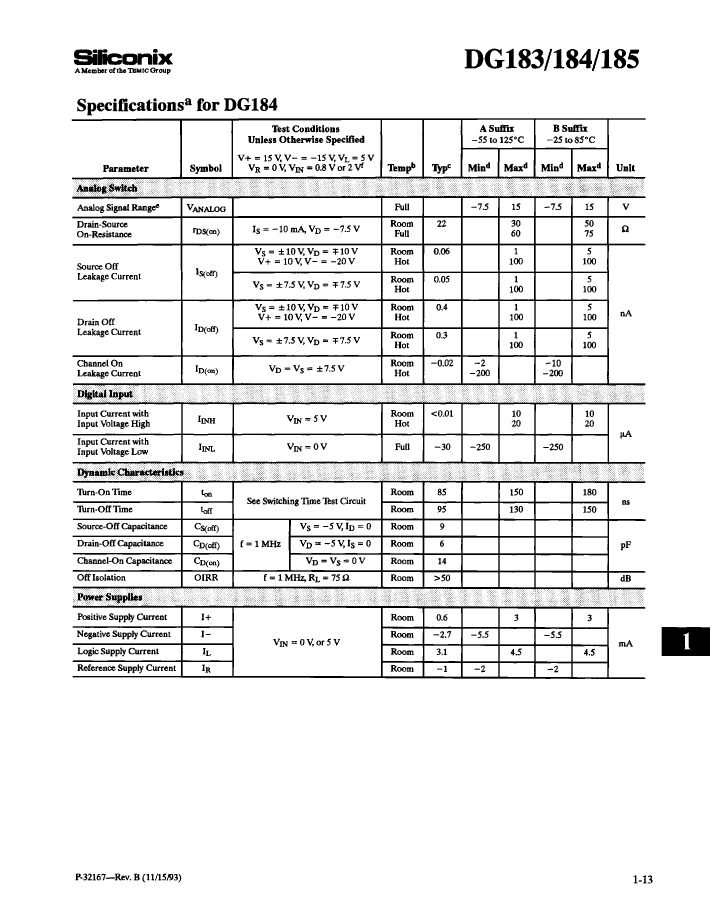

DG185BP Overview

DPST, 2 Func, CDIP16,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
normal position	NO
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
switch	BREAK-BEFORE-MAKE
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	DG185BP	DG184AL/883	DG185AL/883
Description	DPST, 2 Func, CDIP16,	DPST, 2 Func, CDFP14,	DPST, 2 Func, CDFP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Vishay	Vishay	Vishay
Parts packaging code	DIP	DFP	DFP
package instruction	DIP, DIP16,.3	DFP, FL14,.3	DFP, FL14,.3
Contacts	16	14	14
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DPST	DPST	DPST
JESD-30 code	R-XDIP-T16	R-XDFP-F14	R-XDFP-F14
JESD-609 code	e0	e0	e0
normal position	NO	NO	NO
Number of functions	2	2	2
Number of terminals	16	14	14
Maximum operating temperature	85 °C	125 °C	125 °C
Minimum operating temperature	-20 °C	-55 °C	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DFP	DFP
Encapsulate equivalent code	DIP16,.3	FL14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Temperature level	OTHER	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Base Number Matches	-	1	1
