BFR30T/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BFR30T/R

BFR30T/R: DescriptionTRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size271KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BFR30T/R Overview

TRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal

BFR30T/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOT-23
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Minimum drain-source breakdown voltage	25 V
Maximum drain current (ID)	0.01 A
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	1.5 pF
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	AMPLIFIER
Transistor component materials	SILICON

Preview

Download Datasheet

View All

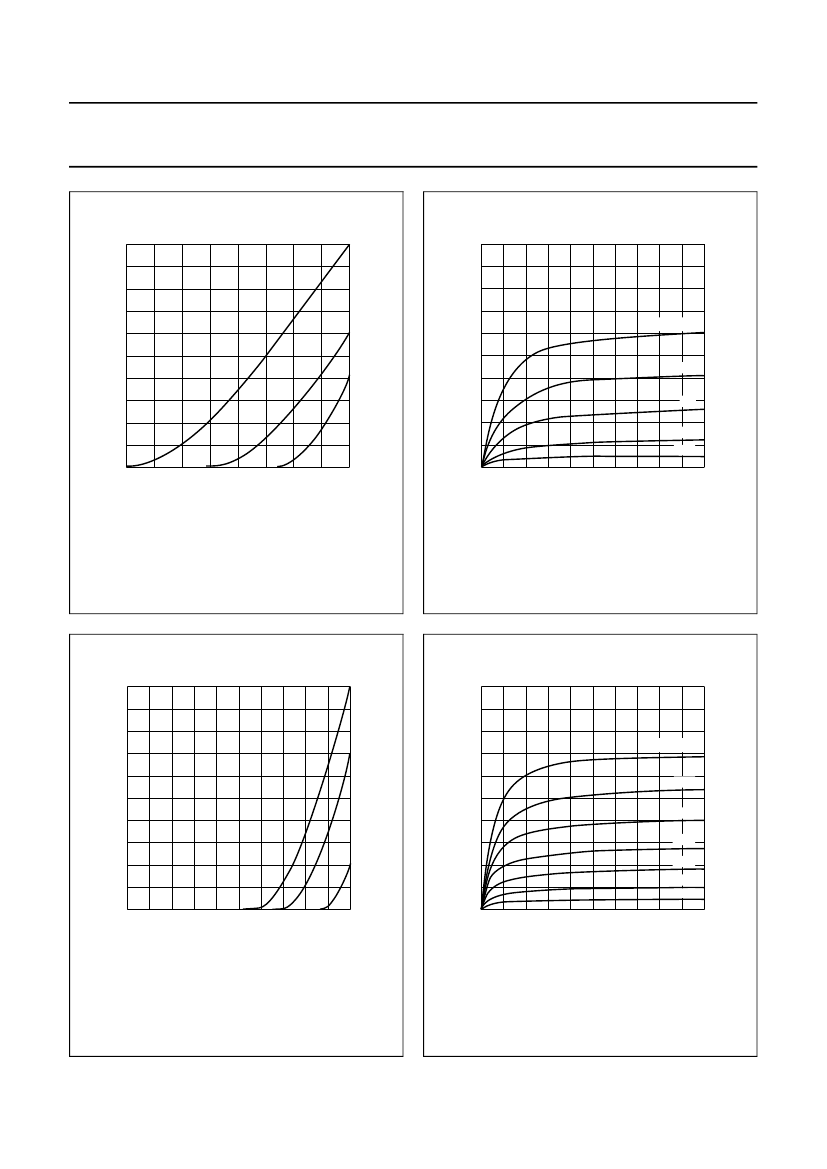

DISCRETE SEMICONDUCTORS

DATA SHEET

BFR30; BFR31

N-channel field-effect transistors

Product specification

Supersedes data of April 1991

1997 Dec 05

BFR30T/R Related Products

	BFR30T/R	BFR30,215	BFR31-T	BFR30-T	BFR31T/R
Description	TRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal	JFET N-CH 10MA 250MW SOT23	TRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal	TRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal	TRANSISTOR 10 mA, 25 V, N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-236AB, PLASTIC PACKAGE-3, FET General Purpose Small Signal
Maker	NXP	NXP	NXP	NXP	NXP
Parts packaging code	SOT-23	TO-236	SOT-23	SOT-23	SOT-23
package instruction	PLASTIC PACKAGE-3	PLASTIC, SMD, SST3, 3 PIN	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	PLASTIC PACKAGE-3
Contacts	3	3	3	3	3
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	25 V	25 V	25 V	25 V	25 V
Maximum drain current (ID)	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	1.5 pF	1.5 pF	1.5 pF	1.5 pF	1.5 pF
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Is it Rohs certified?	conform to	conform to	-	-	conform to
JEDEC-95 code	TO-236AB	-	TO-236AB	TO-236AB	TO-236AB
JESD-609 code	e3	e3	-	-	e3
Peak Reflow Temperature (Celsius)	260	260	-	-	260
Maximum power dissipation(Abs)	0.3 W	0.3 W	-	-	0.3 W
Terminal surface	Tin (Sn)	Tin (Sn)	-	-	TIN
Maximum time at peak reflow temperature	40	40	-	-	40
