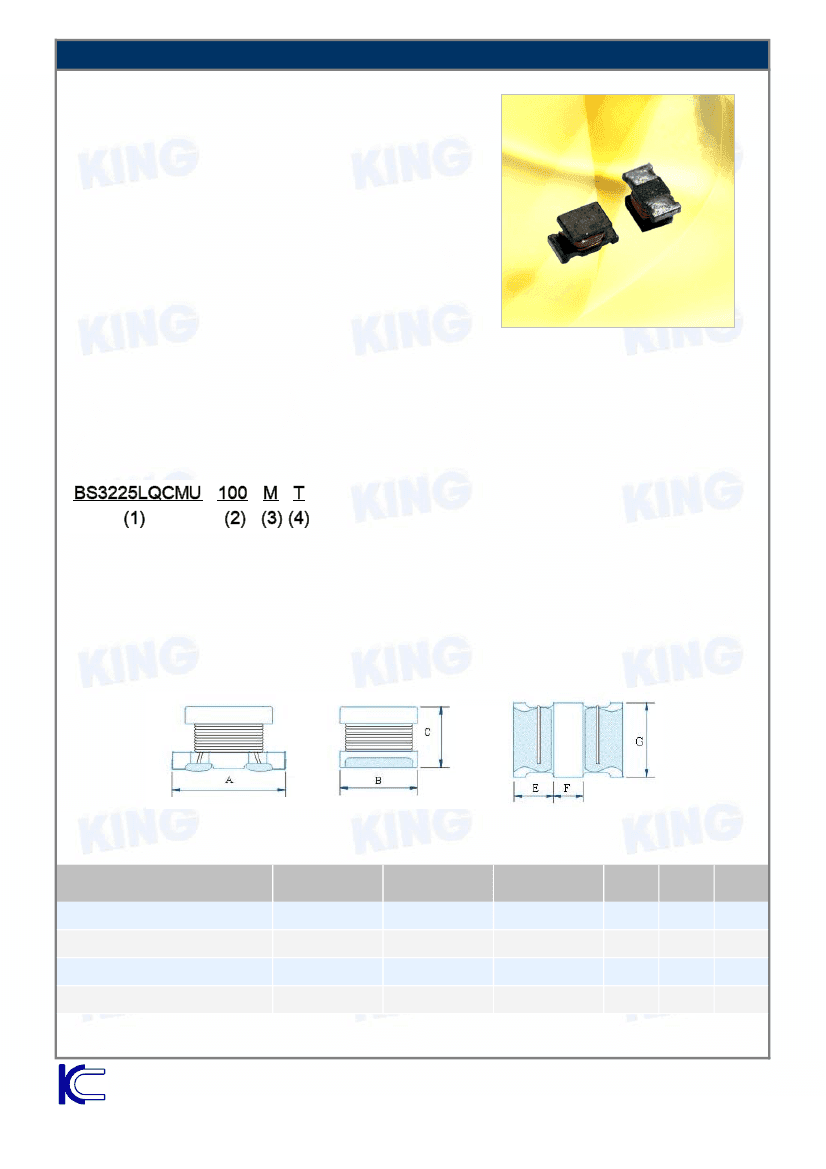

1. This miniature chip inductors wound on a special
ferrite core.
2. Low DC resistance , high current capacity , and
high saturation for surface mounting.
3. They are excellent for use as choke coil in DC
power supply circuits.
4. Excellent solder heat resistance. Both flow and
re flow soldering methods can be employed.
APPLICATIONS
Personal computers. Disk Drives and computer peripherals.
Pagers, Cordless phone. DC power supply circuits.
ORDERING CODE
(1) PRODUCT TYPE CODE AND SIZE CODE
(2) INDUCTANCE
(3) INDUCTANCE TOLERANCE ( K : ±10%, M : ±20% )
(4) REEL TAPING
SHAPE & DIMENSIONS
SIZE CODE
BS3216LQCMU
BS3225LQCMU
BS4532LQCMU
BS5750LQCMU
A
3.2±0.3
3.2±0.3
4.5±0.3
5.7±0.3
B
1.6±0.2
2.5±0.2
3.2±0.2
5.0±0.3
C
1.8±0.2
2.0±0.2
2.6±0.2
4.7±0.3
E
1.5
1.5
2.0
2.0
F
1.0
1.0
1.2
2.0
UNIT:mm
G
1.5
2.0
3.0
5.0
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1
BS-LQCMU.A01
MINIATURE SURFACE MOUNT CHIP INDUCTORS
→
BS3216LQCMU SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS3216LQCMUR12□T
BS3216LQCMUR22□T
BS3216LQCMUR47□T
BS3216LQCMU1R0□T
BS3216LQCMU2R2□T
BS3216LQCMU4R7□T
BS3216LQCMU100□T
BS3216LQCMU220□T
BS3216LQCMU470□T
BS3216LQCMU101□T
□Tolerance:
K±10%,M±20%
Inductance
(μH)
0.12
0.22
0.47
1.0
2.2
4.7
10
22
47
100
Test Frequency
(MHz)
25.2
25.2
25.2
7.96
7.96
7.96
2.52
2.52
2.52
0.796
DC Resistance
(Ω)max
0.112
0.140
0.210
0.364
0.533
0.845
1.690
3.900
10.400
15.600
Self Resonant
Frequency
(MHz)TYP
250
250
180
100
50
31
20
14
10
7
IDC
(mA)max
970
850
700
510
430
340
230
160
100
80
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
BS-LQCMU.A01
MINIATURE SURFACE MOUNT CHIP INDUCTORS
→
BS3225LQCMU SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS3225LQCMU1R0□T
BS3225LQCMU2R2□T
BS3225LQCMU4R7□T
BS3225LQCMU100□T
BS3225LQCMU220□T
BS3225LQCMU470□T
BS3225LQCMU101□T
BS3225LQCMU221□T
BS3225LQCMU331□T
BS3225LQCMU391□T
BS3225LQCMU471□T
BS3225LQCMU561□T
□Tolerance:
K±10%,M±20%
Inductance
(μH)
1.0
2.2
4.7
10
22
47
100
220
330
390
470
560
Test Frequency
(MHz)
7.96
7.96
7.96
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
DC Resistance
(Ω)max
0.078
0.126
0.195
0.572
0.923
1.690
4.550
10.920
13.000
22.100
24.700
28.600
Self Resonant
Frequency
(MHz)TYP
100
64
43
26
19
15
10
6.8
5.6
5
5
5
IDC
(mA)max
1000
790
450
300
250
170
100
70
60
60
60
60
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
3
BS-LQCMU.A01
MINIATURE SURFACE MOUNT CHIP INDUCTORS
→
BS4532LQCMU SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS4532LQCMU1R0□T
BS4532LQCMU1R5□T
BS4532LQCMU2R2□T
BS4532LQCMU3R3□T
BS4532LQCMU4R7□T
BS4532LQCMU6R8□T
BS4532LQCMU100□T
BS4532LQCMU150□T
BS4532LQCMU220□T
BS4532LQCMU330□T
BS4532LQCMU470□T
BS4532LQCMU680□T
BS4532LQCMU101□T
BS4532LQCMU151□T
BS4532LQCMU221□T
BS4532LQCMU331□T
BS4532LQCMU471□T
□Tolerance:
K±10%,M±20%
Inductance
(μH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
Test Frequency
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
DC Resistance
(Ω)max
0.08
0.09
0.11
0.13
0.15
0.20
0.24
0.32
0.60
1.00
1.10
1.70
2.20
3.50
4.00
6.80
8.50
Self Resonant
Frequency
(MHz)TYP
100
85
60
47
35
30
23
20
15
12
10
8.4
6.8
5.5
4.5
3.6
3.0
IDC
(mA)max
1080
1000
900
800
750
720
650
570
420
310
280
220
190
130
110
100
90
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
4
BS-LQCMU.A01
MINIATURE SURFACE MOUNT CHIP INDUCTORS
→
BS5750LQCMU SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS5750LQCMUR12□T
BS5750LQCMUR27□T
BS5750LQCMUR47□T
BS5750LQCMU1R0□T
BS5750LQCMU1R5□T
BS5750LQCMU2R2□T
BS5750LQCMU3R3□T
BS5750LQCMU4R7□T
BS5750LQCMU6R8□T
BS5750LQCMU100□T
BS5750LQCMU150□T
BS5750LCQMU220□T
BS5750LQCMU330□T
BS5750LQCMU470□T
BS5750LQCMU680□T
BS5750LQCMU101□T
BS5750LQCMU151□T
BS5750LQCMU221□T
BS5750LQCMU331□T
BS5750LCQMU471□T
BS5750LQCMU681□T
BS5750LQCMU102□T
BS5750LQCMU222□T
BS5750LQCMU472□T
BS5750LQCMU103□T
□Tolerance:
K±10%,M±20%
Inductance
(μH)
0.12
0.27
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
2200
4700
10000
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0098
0.0140
0.0182
0.0270
0.0310
0.0410
0.0500
0.0574
0.1040
0.1300
0.2100
0.2660
0.4480
0.5600
0.9380
1.2040
2.6600
3.3600
6.1600
7.5600
11.3400
14.4200
30.1000
61.0400
140.0000
Self Resonant
Frequency
(MHz)TYP
450
300
200
150
110
80
40
30
25
20
17
15
12
10
7.6
6.5
5.0
4.0
3.1
2.4
1.9
1.7
1.2
0.8
0.5
IDC
(mA)max
6000
5300
4800
4000
3700
3200
2900
2700
2000
1700
1400
1200
900
800
640
560
420
320
270
240
190
150
100
70
50
