COIL FORMERS
General data CP-P42/29 coil former
PARAMETER
Coil former material
Maximum operating temperature
SPECIFICATION
P42/29
polyamide (PA6.6), glass reinforced, flame retardant in accordance with
“UL 94V-0”
; UL file number E41938
130
°C,
“IEC 60085”, class B
handbook, full pagewidth
19.8 max
0.9
5
3
5
19.6 0.2 35.5 max
0.2
18 0
MGC146
1
17.7 min
Dimensions in mm.
Fig.2 Coil former: CP-P42/29.
Winding data and area product for CP-P42/29 coil former
NUMBER OF
SECTIONS
1
2
WINDING
AREA
(mm
2
)
140
2
×
63
MINIMUM
WINDING
WIDTH
(mm)
17.8
2
×
8
AVERAGE
LENGTH OF
TURN
(mm)
86
86
AREA
PRODUCT
Ae x Aw
(mm
4
)
37100
2 x 16700
TYPE NUMBER
CP-P42/29-1S-C
CP-P42/29-2S-C
2008 Sep 01
1026
Ferroxcube
P cores and accessories
MOUNTING PARTS
General data and ordering information
ITEM
Tag plate
REMARKS
material: phenolformaldehyde (PF), glass reinforced
flame retardant: in accordance with
“UL 94V-0”;
UL file number E41429
maximum operating temperature: 180
°C,
“IEC 60085”
, class H
pins: copper-tin alloy (CuSn), tin (Sn) plated
resistance to soldering heat in accordance with
“IEC 60068-2-20”
, Part 2, Test Tb, method 1B: 350
°C,
3.5 s
solderability in accordance with
“IEC 60068-2-20”,
Part 2,
Test Ta, method 1: 235
°C,
2 s
Container
Spring
copper-zinc alloy (CuZn), tin (Sn) plated
earth pins: presoldered
CrNi-steel
spring force:
≈350
N when mounted
5
4
FIGURE
3
P42/29
TYPE NUMBER
TGP-P42/29-C
CON-P42/29
SPR-P42/29

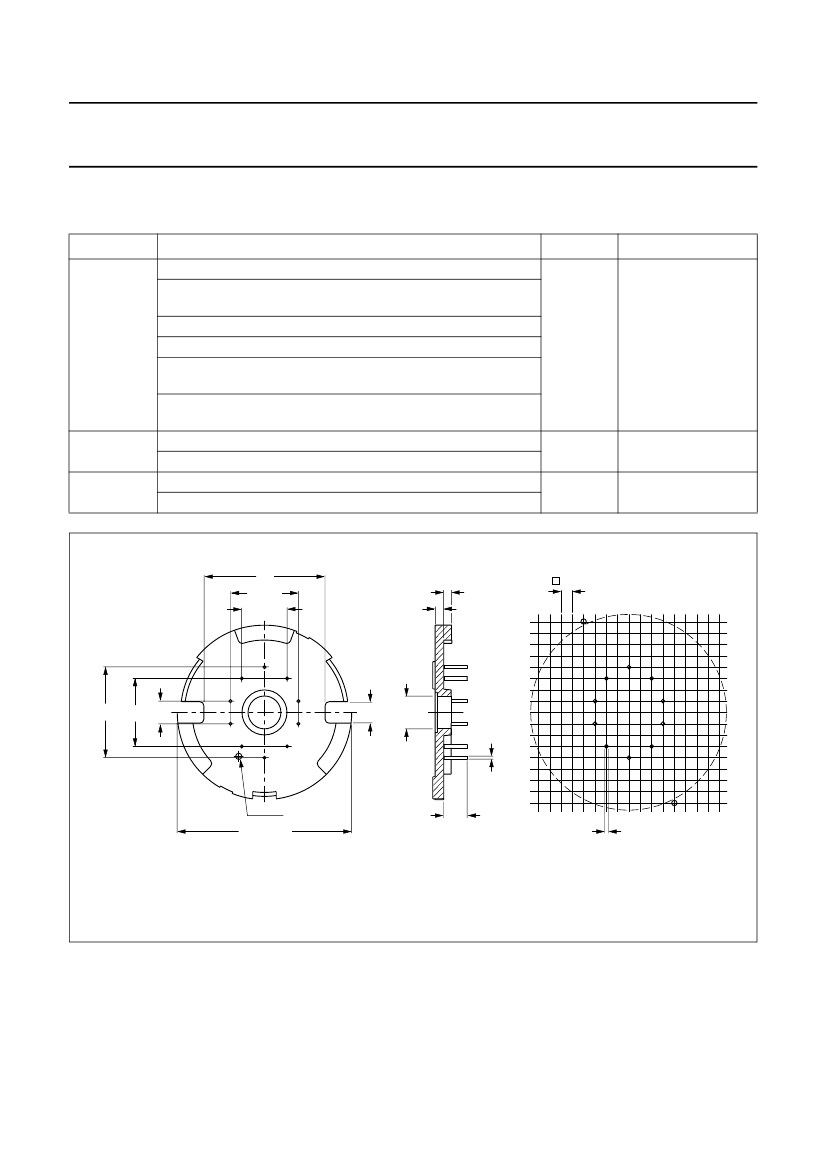

handbook, full pagewidth
31
15.24
10.16
2.2
2.1
2.54
20.32 15.24 5.08
5.5
∅8.4
∅0.8
mark
44.8 max.
6
1.3
+0.15
0
CBW606
Dimensions in mm.
Fig.3 Tag plate: TGP-P42/29-C.
