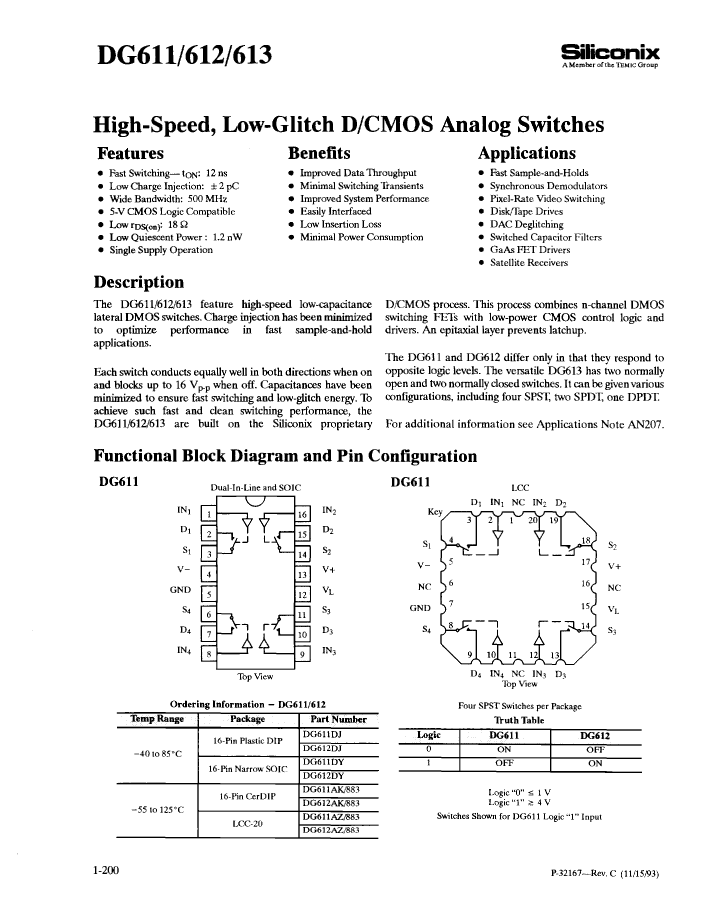

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch

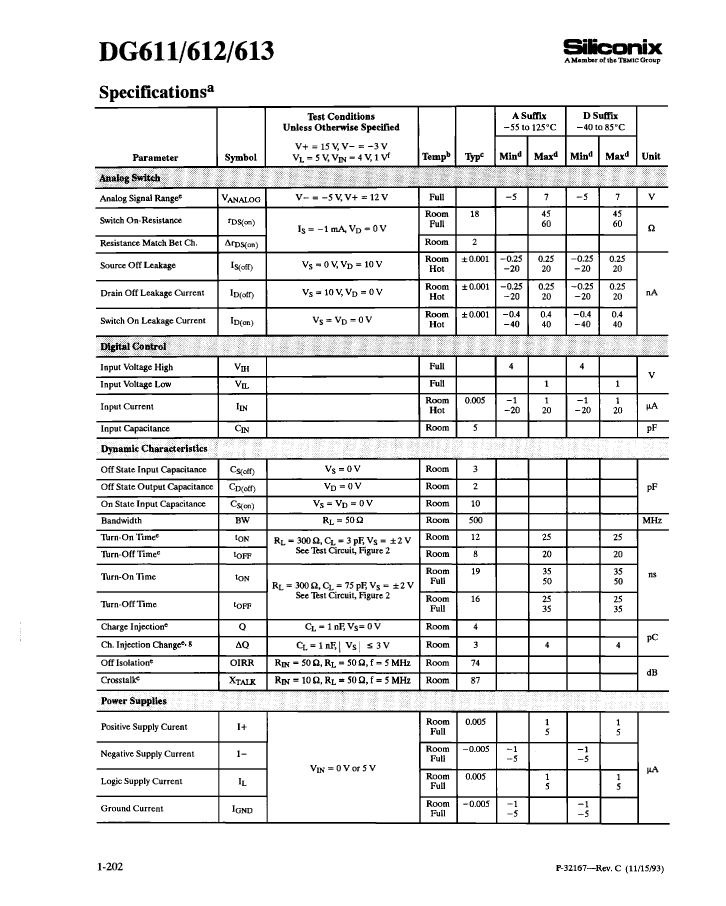

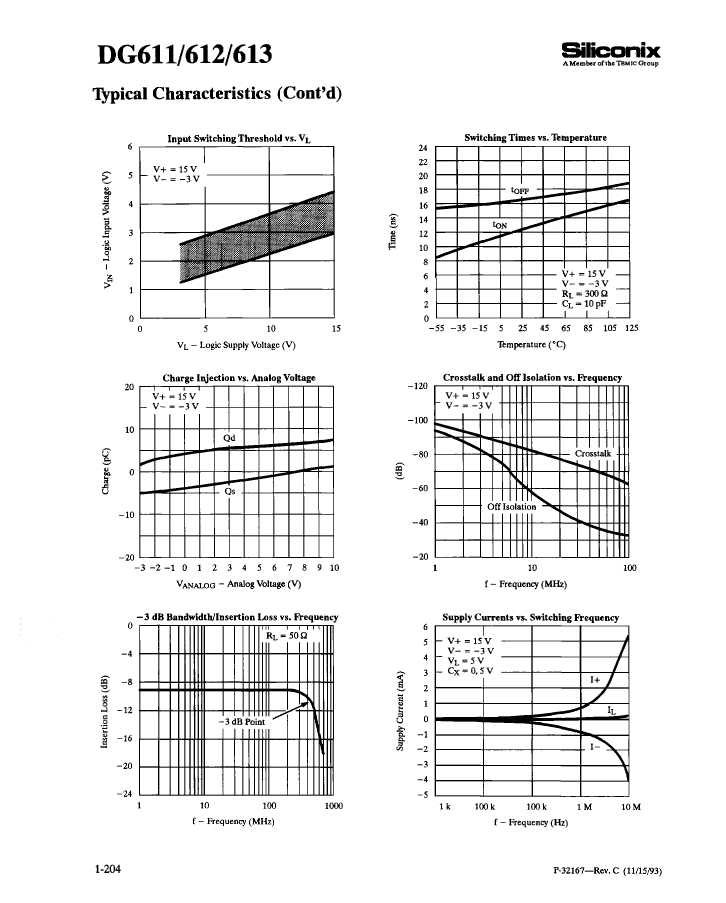

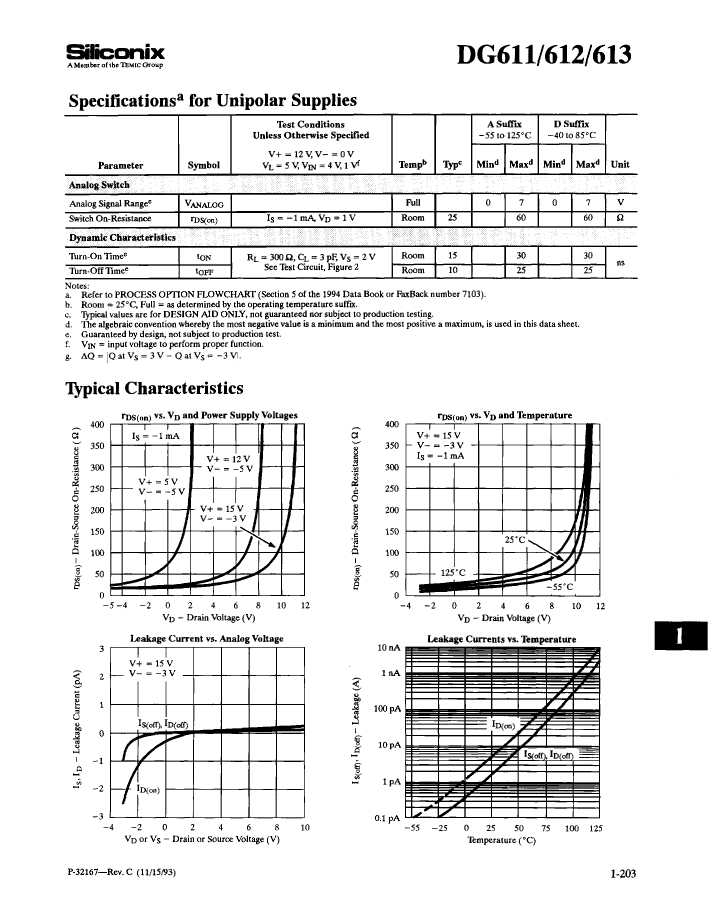

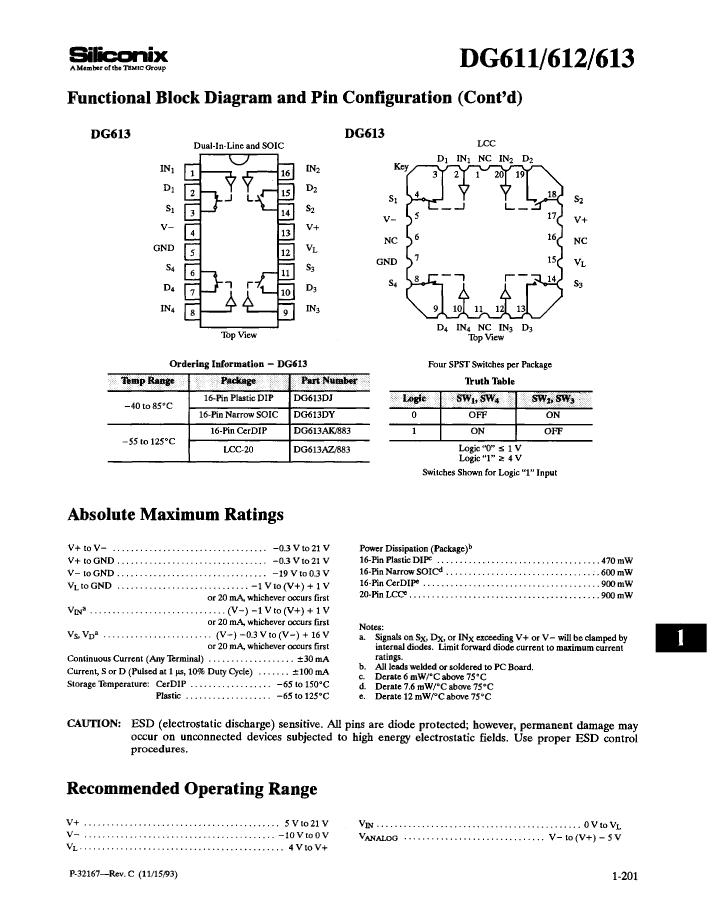

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Vishay |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | VIDEO APPLICATION |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e3 |
| length | 9.9 mm |
| Humidity sensitivity level | 1 |
| Nominal Negative Supply Voltage (Vsup) | -3 V |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Nominal off-state isolation | 74 dB |
| On-state resistance matching specifications | 2 Ω |
| Maximum on-state resistance (Ron) | 45 Ω |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Maximum disconnect time | 25 ns |
| Maximum connection time | 35 ns |
| technology | NMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | MATTE TIN |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 40 |
| width | 3.9 mm |
| DG612DY-T2-E3 | 5962-9325503MEX | 5962-9325502MEX | 5962-9325501MEX | 5962-9325503M2X | 5962-9325501M2X | 5962-9325502M2X | DG611DY-T2-E3 | DG613DY-T2-E3 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch | SPST, 4 Func, 1 Channel, NMOS, CDIP16, CERDIP-16 | SPST, 4 Func, 1 Channel, NMOS, CDIP16, CERDIP-16 | SPST, 4 Func, 1 Channel, NMOS, CDIP16, CERDIP-16 | SPST, 4 Func, 1 Channel, NMOS, CQCC20, LCC-20 | SPST, 4 Func, 1 Channel, NMOS, CQCC20, LCC-20 | SPST, 4 Func, 1 Channel, NMOS, CQCC20, LCC-20 | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, SOIC-16, Multiplexer or Switch |
| Parts packaging code | SOIC | DIP | DIP | DIP | QLCC | QLCC | QLCC | SOIC | SOIC |
| package instruction | SOP, | DIP, | DIP, | DIP, | QCCN, | QCCN, | QCCN, | SOP, | SOP, |
| Contacts | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 16 | 16 |
| Reach Compliance Code | unknown | unknow | unknow | unknow | unknow | unknow | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | SPST | SPST | SPST | SPST | SPST | SPST |
| JESD-30 code | R-PDSO-G16 | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | S-CQCC-N20 | S-CQCC-N20 | S-CQCC-N20 | R-PDSO-G16 | R-PDSO-G16 |
| length | 9.9 mm | 19.305 mm | 19.305 mm | 19.305 mm | 8.89 mm | 8.89 mm | 8.89 mm | 9.9 mm | 9.9 mm |
| Nominal Negative Supply Voltage (Vsup) | -3 V | -3 V | -3 V | -3 V | -3 V | -3 V | -3 V | -3 V | -3 V |
| Number of channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 16 | 16 |
| Nominal off-state isolation | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB | 74 dB |
| On-state resistance matching specifications | 2 Ω | 2 Ω | 2 Ω | 2 Ω | 2 Ω | 2 Ω | 2 Ω | 2 Ω | 2 Ω |
| Maximum on-state resistance (Ron) | 45 Ω | 45 Ω | 45 Ω | 45 Ω | 45 Ω | 45 Ω | 45 Ω | 45 Ω | 45 Ω |
| Maximum operating temperature | 85 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | DIP | QCCN | QCCN | QCCN | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 5.08 mm | 5.08 mm | 5.08 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.75 mm | 1.75 mm |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | NO | NO | NO | YES | YES | YES | YES | YES |
| Maximum disconnect time | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns |
| Maximum connection time | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns | 35 ns |
| technology | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS |
| Temperature level | INDUSTRIAL | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD | QUAD | QUAD | DUAL | DUAL |
| width | 3.9 mm | 7.62 mm | 7.62 mm | 7.62 mm | 8.89 mm | 8.89 mm | 8.89 mm | 3.9 mm | 3.9 mm |
| Filter level | - | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | - | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
