DG641DJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG641DJ

DG641DJ: DescriptionAudio/Video Switch, 4 Func, 1 Channel, DMOS, PDIP16, PLASTIC, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size296KB，10 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG641DJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG641DJ	-	-	View	Buy Now

DG641DJ Overview

Audio/Video Switch, 4 Func, 1 Channel, DMOS, PDIP16, PLASTIC, DIP-16

DG641DJ Parametric

Parameter Name	Attribute value
Maker	TEMIC
package instruction	PLASTIC, DIP-16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDIP-T16
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	60 dB
On-state resistance matching specifications	1 Ω
Maximum on-state resistance (Ron)	15 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	50 ns
Maximum connection time	70 ns
technology	DMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

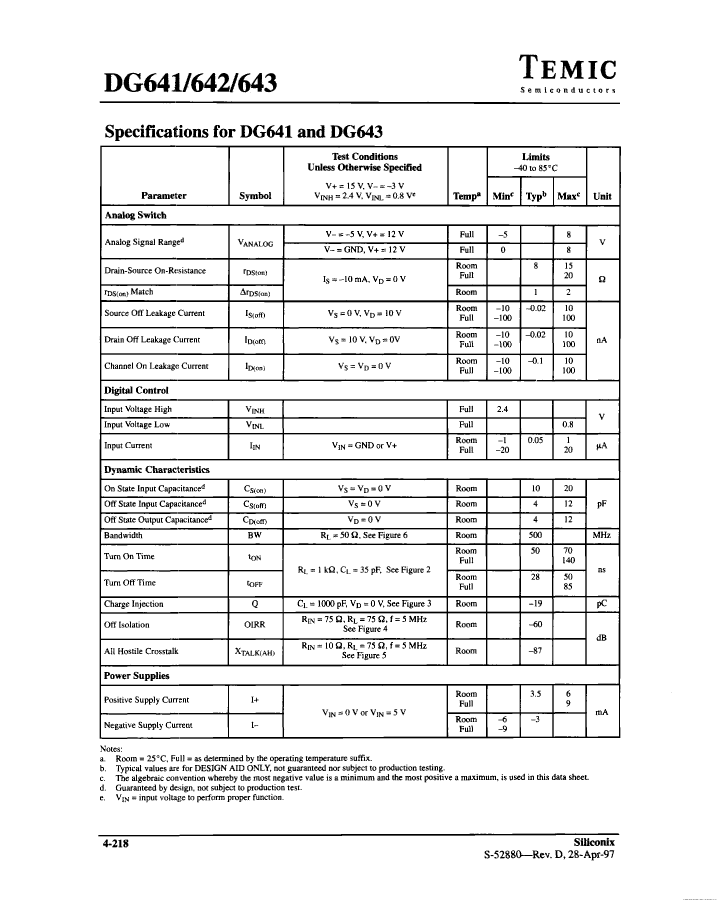

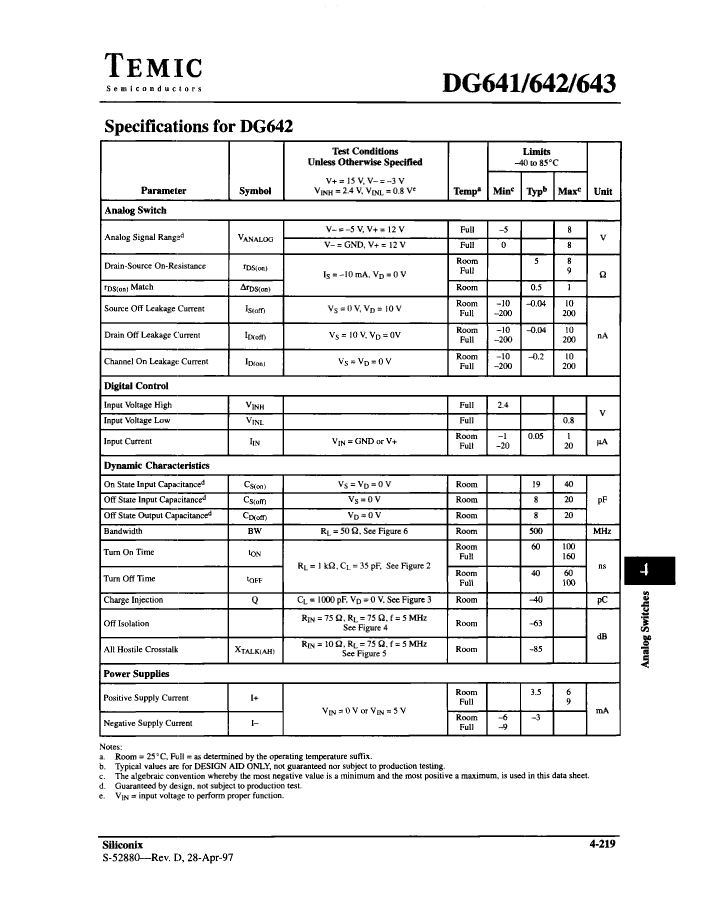

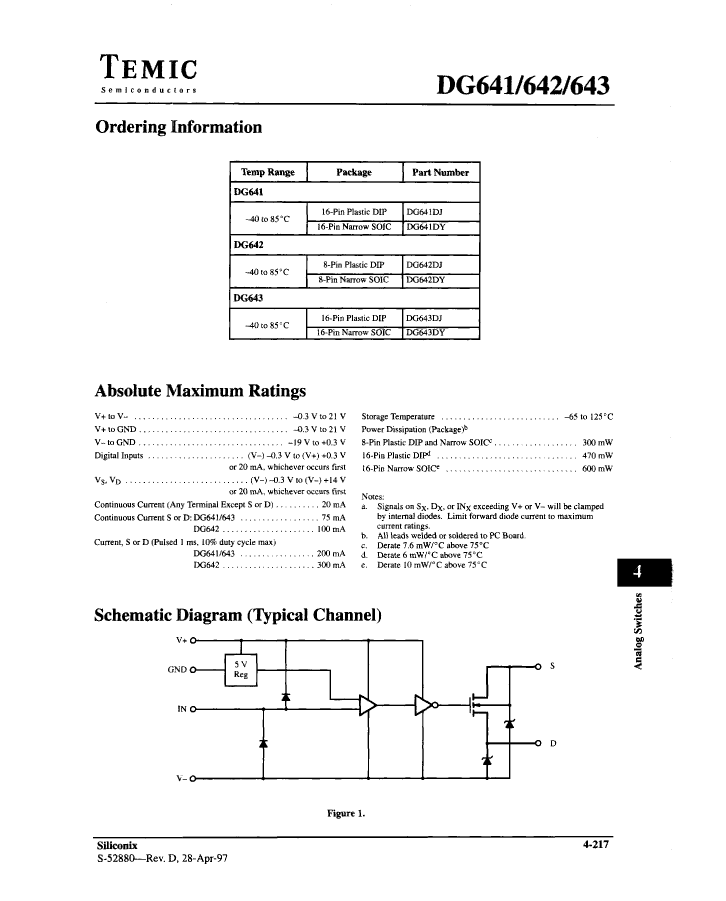

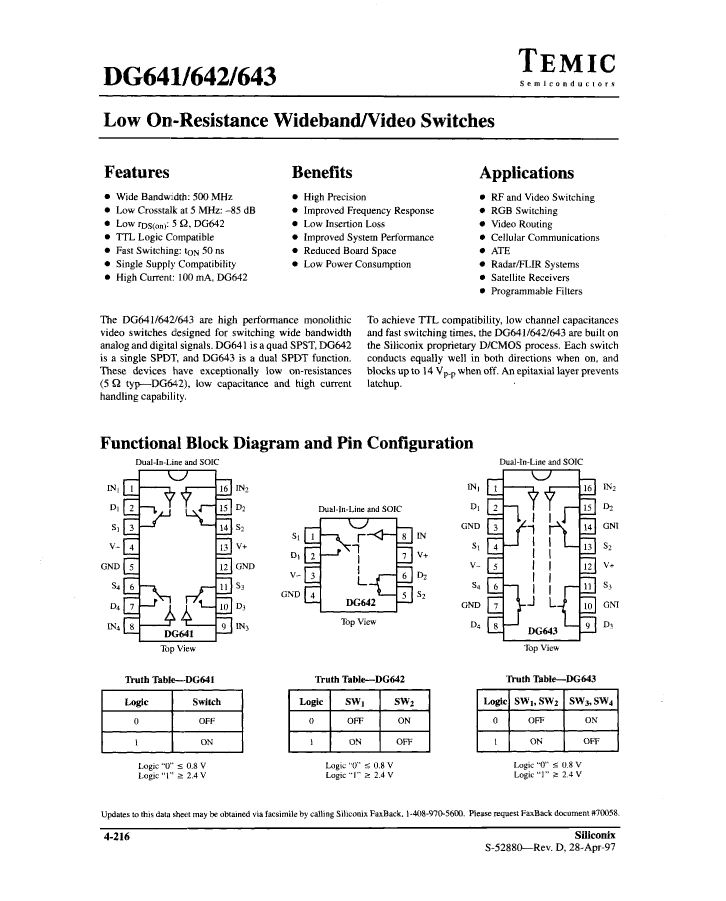

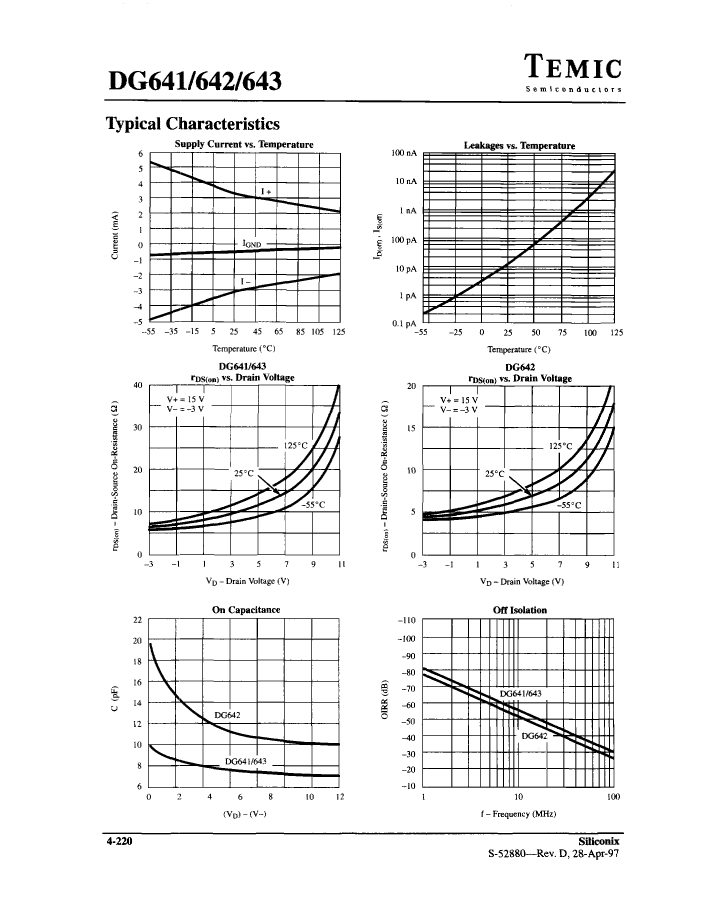

Preview

Download Datasheet

View All

DG641DJ Related Products

	DG641DJ	DG642DJ	DG643DJ	DG641DY	DG642DY	DG643DY
Description	Audio/Video Switch, 4 Func, 1 Channel, DMOS, PDIP16, PLASTIC, DIP-16	Audio/Video Switch, 1 Func, 1 Channel, DMOS, PDIP8, PLASTIC, DIP-8	Audio/Video Switch, 2 Func, 1 Channel, DMOS, PDIP16, PLASTIC, DIP-16	Audio/Video Switch, 4 Func, 1 Channel, NMOS, PDSO16, SOIC-16	Audio/Video Switch, 1 Func, 1 Channel, DMOS, PDSO8, SOIC-8	Audio/Video Switch, 2 Func, 1 Channel, NMOS, PDSO16, SOIC-16
package instruction	PLASTIC, DIP-16	PLASTIC, DIP-8	PLASTIC, DIP-16	SOIC-16	SOIC-8	SOIC-16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDIP-T16	R-PDIP-T8	R-PDIP-T16	R-PDSO-G16	R-PDSO-G8	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-3 V	-3 V	-3 V	-3 V	-3 V	-3 V
Number of channels	1	1	1	1	1	1
Number of functions	4	1	2	4	1	2
Number of terminals	16	8	16	16	8	16
Nominal off-state isolation	60 dB	63 dB	60 dB	60 dB	63 dB	60 dB
On-state resistance matching specifications	1 Ω	0.5 Ω	1 Ω	1 Ω	0.5 Ω	1 Ω
Maximum on-state resistance (Ron)	15 Ω	8 Ω	15 Ω	15 Ω	8 Ω	15 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	YES	YES
Maximum disconnect time	50 ns	60 ns	50 ns	50 ns	60 ns	50 ns
Maximum connection time	70 ns	100 ns	70 ns	70 ns	100 ns	70 ns
technology	DMOS	DMOS	DMOS	NMOS	DMOS	NMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	TEMIC	-	TEMIC	TEMIC	TEMIC	TEMIC
