8057H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8057H

8057H: DescriptionInside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

8057H Overview

Inside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8057H Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	200 V
Maximum insertion loss	0.5 dB
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

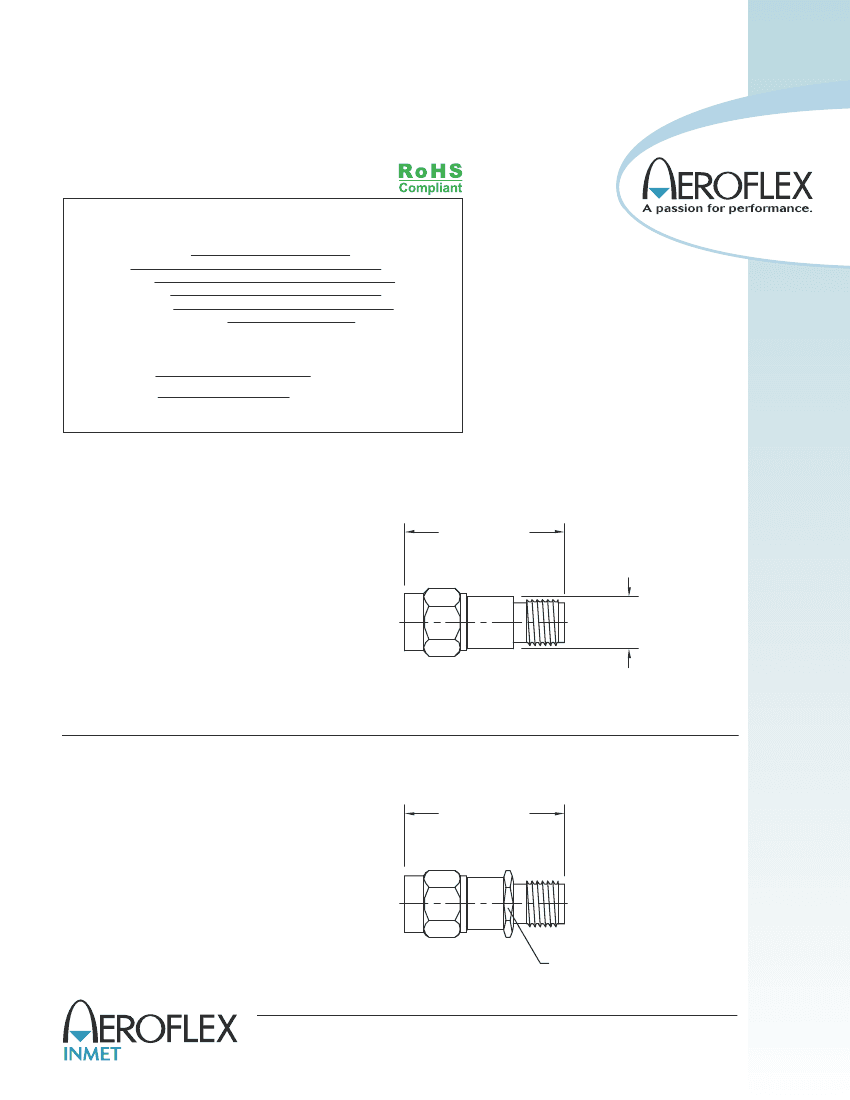

DC BLOCKS

SMA, 10 MHz - 18 GHz, Inner Only

SPECIFICATIONS:

Models: 8055, 8055H, 8056, 8056H, 8057 8057H

Electrical:

Frequency Range

VSWR

Impedance

Insertion Loss

Voltage Rating

Operating Temp. Range

10 MHz - 18 GHz

1.35:1 Max.

50 Ohms

0.5 dB Max.

200 Volts

-65°C to +125°C

Mechanical:

Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Conductors

Model Number:

8055

Male / Female Connectors

Length = .855 ±.020 [21.72 ±0.5

Pictured

.855 ±.020

[21.72 ±0.51]

Model Number:

8056

Female / Female Connectors

Length = .865 ±.015 [21.97 ±0.38]

Ø.28

[7.1]

Model Number:

8057

Male / Male Connectors

Length= .980 ±.025 [24.89 ±0.64]

Model Number:

8055H

Male / Female Connectors

Length = .855 ±.020 [21.72 ±0.5

Pictured

.855 ±.020

[21.72 ±0.51]

Model Number:

8056H

Female / Female Connectors

Length = .865 ±.015 [21.97 ±0.38]

Model Number:

8057H

Male / Male Connectors

Length = .980 ±.025 [24.89 ±0.64]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

5/16 [7.9] Hex

8055: REV F

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com

8057H Related Products

	8057H	8056H
Description	Inside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 10MHz Min, 18000MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	SMA-M	SMA-F
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum DC voltage	200 V	200 V
Maximum insertion loss	0.5 dB	0.5 dB
JESD-609 code	e4	e4
Maximum operating frequency	18000 MHz	18000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK
Terminal surface	GOLD	GOLD
Maximum voltage standing wave ratio	1.35	1.35
