DC BLOCKING ATTENUATOR
Type F, 10 MHz - 2 GHz, 200 Volts
SPECIFICATIONS:
Models: 8528A-XX
Electrical:
Frequency Range
Standard dB Values*
Accuracy of Attenuation:
1 - 6 dB
7 - 20 dB
VSWR:
Impedance:
DC Block Type
Voltage Rating
Input Power
Operating Temp. Range
10 MHz - 2 GHz
0 - 10, 12, 15 & 20 dB
In 1 dB Increments
± 0.3 dB
± 0.5 dB
1.35:1 Max.
75 Ohms
Inner Only
200 Volts
2 Watts Average
-65°C to +125°C
RF in
RF out
Mechanical:
Type F Connectors:
Conductors:
Bodies:
Bright Acid Tin and Nickel Plated Brass
Nickel and Gold Plated Brass
Passivated Stainless Steel

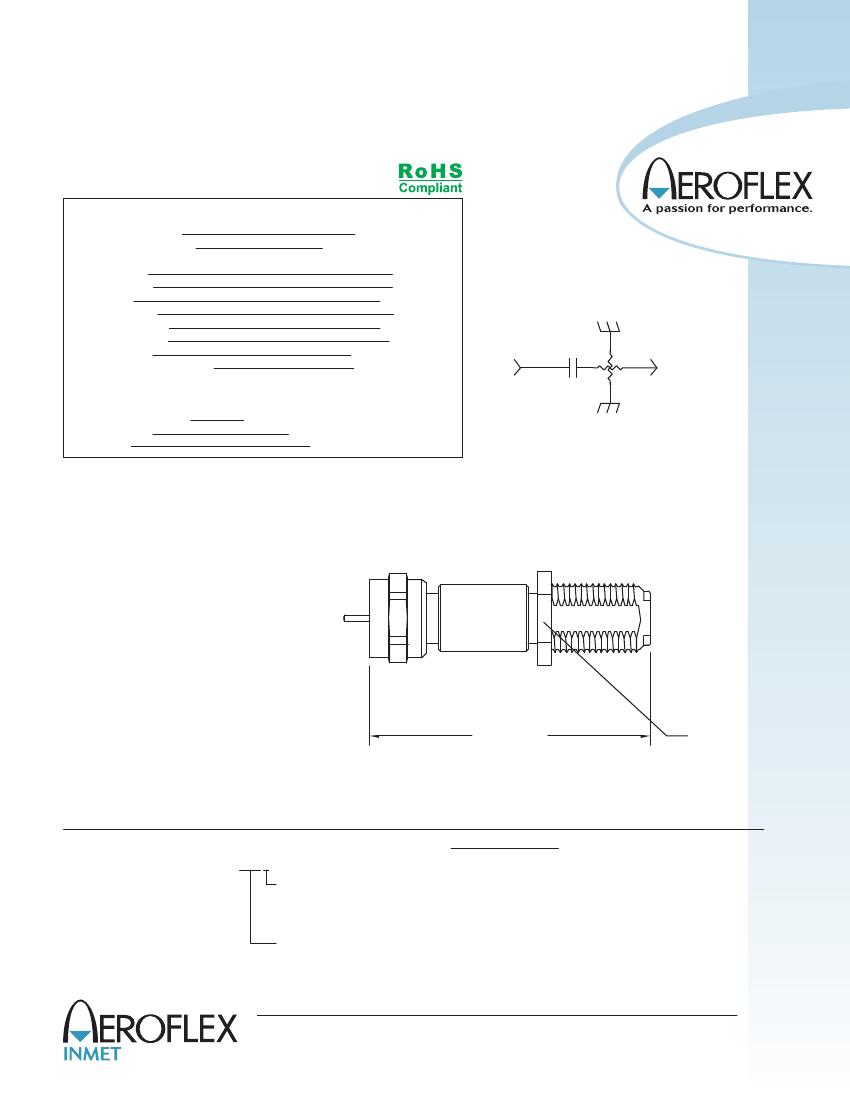

Schematic Diagram
Unit is a unidirectional device. Input shall be at male port unless otherwise specified.
Model Number:
8528A-XX
Male/Female Connectors
Length: 1.50 ±.05 [38.1 ±1.3]
As Pictured
Model Number:
8528A-XXM
Male/Male Connectors
Length: 1.22 ±.05 [31.0 ±1.3]
Model Number:
8528A-XXF
Female/Female Connectors
Length: 1.79 ±.05 [45.5 ±1.3]
1.50 ±.05
[38.1 ±1.3]
7/16 HEX
[11.1]
HOW TO ORDER:
Model Number:
8528A-XXY
Connector Configuration
= Male/Female
F = Fem/Fem
M = Male/Male
dB Value
Ordering Examples:
Model Number:
8528A-20
20 dB; F - Male/Fem
Model Number:
8528A-10M
10 dB; F - Male/Male
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
*Other dB values, connectors and/or DC Block configurations are also available.
8528A: REV E
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • sales@aeroflex-inmet.com
