JY-12W-KP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> JY-12W-KP

JY-12W-KP: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size341KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

JY-12W-KP Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT

JY-12W-KP Parametric

Parameter Name	Attribute value
Maximum operating temperature	90 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT
state	ACTIVE
seal	RT3
Coil power	200 mW
Relay action	Transient
Relay function	single pole single throw
Coil resistance	720 ohm
Electrical life	100000 Cycle(s)
Manufacturer Series	JY
Maximum DC coil current	0.0170 A
Maximum DC coil voltage	12 V
Maximum AC contact current	5 A
Maximum DC contact current	5 A
Maximum AC contact voltage	250 V
Maximum DC contact voltage	30 V
DC coil operating voltage	8.4 V
DC coil release voltage	0.6000 V
width	9.8 mm
high	19.8 mm
length or diameter	23 mm
Installation features	socket installation
operating hours	6 ms
Relay type	POWER/SIGNAL RELAY
release time	3 ms
Terminal type	SNAP ON

Preview

Download Datasheet

View All

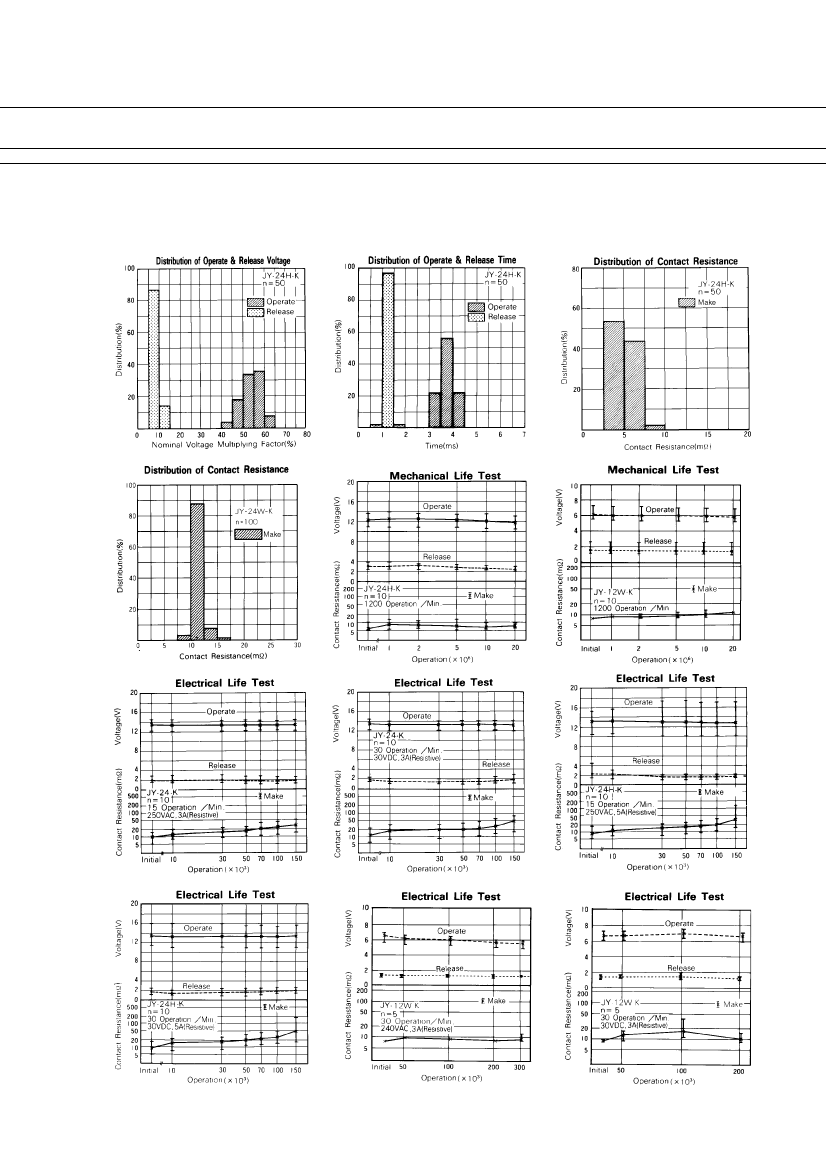

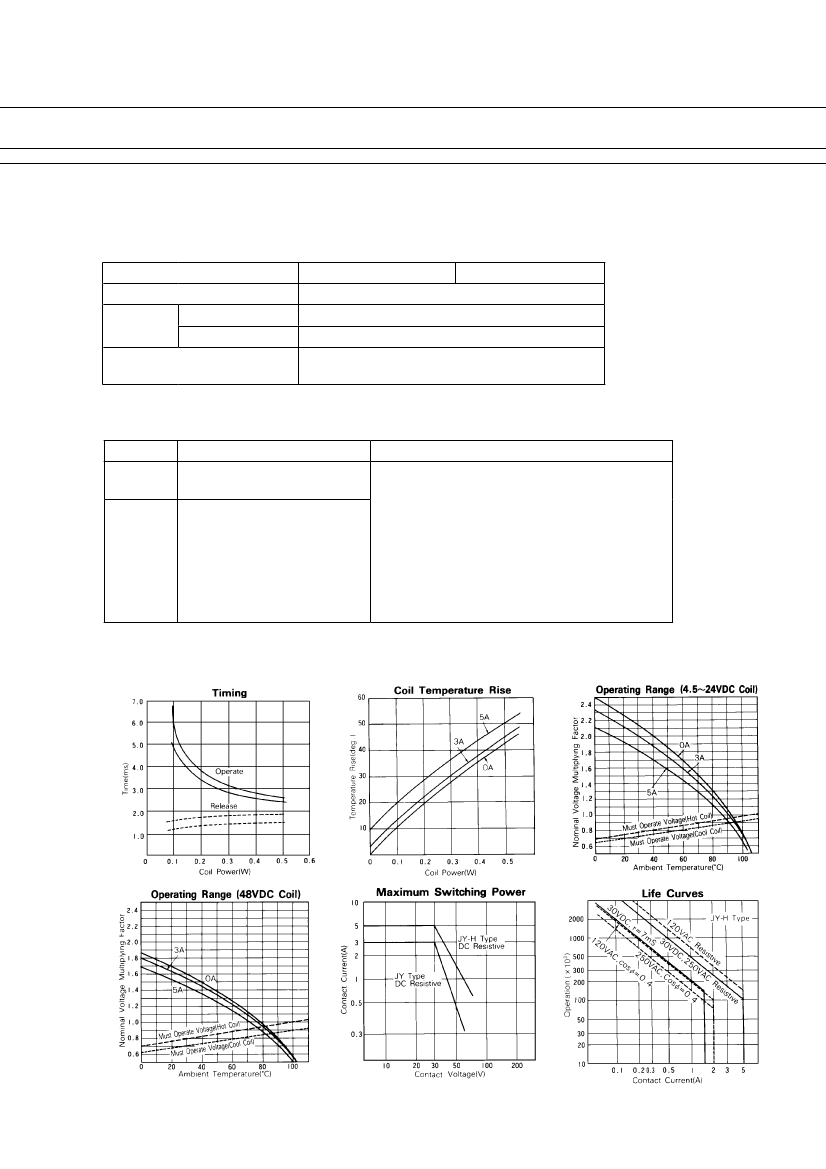

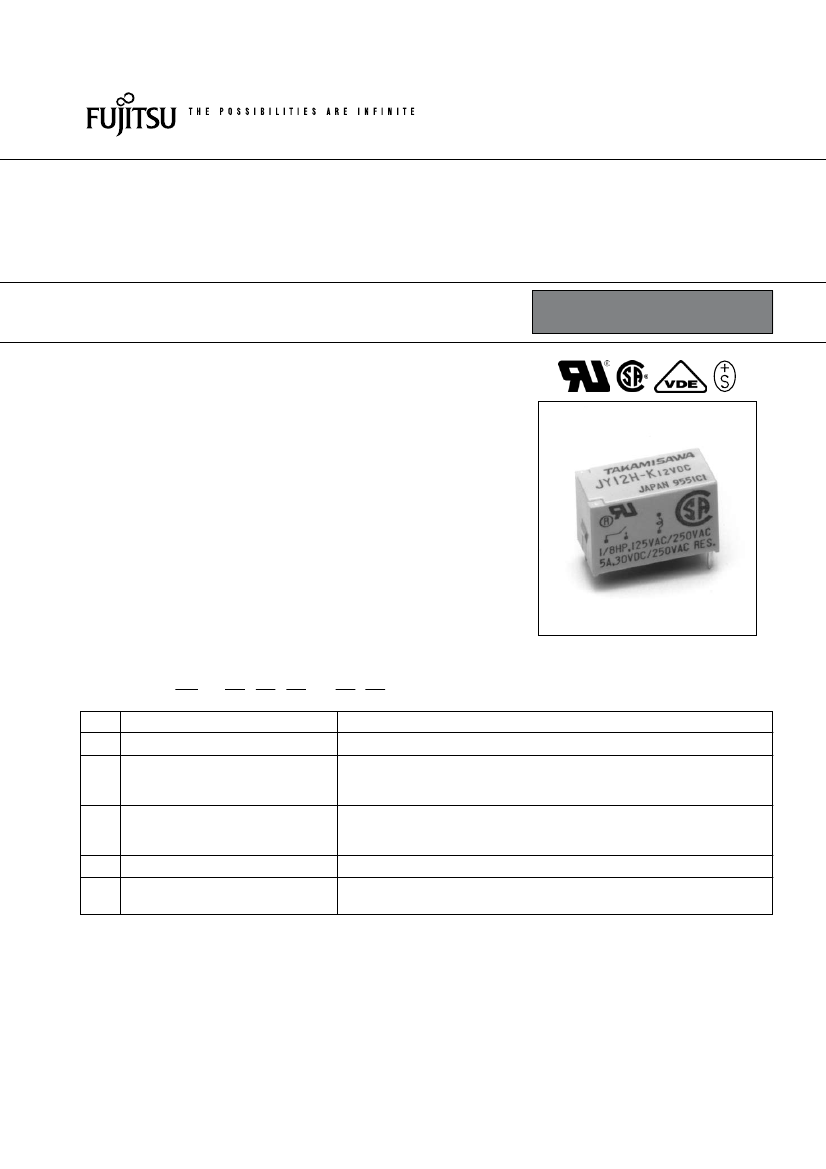

POWER RELAY

1 POLE— 3, 5 A

(MEDIUM LOAD CONTROL)

JY SERIES

RoHS compliant

UL, CSA, VDE recognized

High sensitivity and low power consumption

High isolation

Wide operating range

DIL pitch terminals

Plastic sealed type

Socket mounting type and socket available

Compatible with solid state relays type SJ (see page

365, 366) in size and pin (terminal) arrangement

RoHS compliant since date code: 0514-

Please see page 6 for more information

FEATURES

ORDERING INFORMATION

JY – 12

(a) (*) (b)

(c)

[Example]

(a)

(b)

(c)

E – K P*

(d)

(e) (f )

JY : JY Series

Refer to the COIL DATA CHART

Nil : 3 A (Single contact)

H : 5 A (Single contact)

W : 3A (Bifurcated contact)

Nil : Gold-plate silver cadmium oxide (single type)

Nil : Gold overlay silver alloy (bifurcated)

E : Silver cadmium oxide (single type)

K : Plastic sealed type

Nil : PC board mounting type

P : Socket mounting type (without JY-W)

Series Name

Nominal Voltage

Contact Style

(d)

(e)

(f )

Contact Material

Enclosure

Terminal Classification

Note: 1. Actual marking omits the hyphen (-) of (*)

2. Actual marking omits the P of (*

)

JY-12W-KP Related Products

	JY-12W-KP	JY-12E-KP	JY-12-KP	JY-12E-K	JY-12H-KP	JY-12HE-KP	JY-12WE-KP	JY-12WE-K
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.017A (COIL), 12VDC (COIL), 200mW (COIL), 5A (CONTACT), 30VDC (CONTACT), SOCKET MOUNT
Maximum operating temperature	90 Cel	90 °C	90 °C	90 °C	90 °C	90 °C	90 Cel	90 Cel
Minimum operating temperature	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 Cel	-40 Cel
Coil power	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW	200 mW
Relay action	Transient	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	Transient	Transient
Relay function	single pole single throw	SPST	SPST	SPST	SPST	SPST	single pole single throw	single pole single throw
Coil resistance	720 ohm	720 Ω	720 Ω	720 Ω	720 Ω	720 Ω	720 ohm	720 ohm
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	socket installation	SOCKET MOUNT	SOCKET MOUNT	THROUGH HOLE-STRAIGHT MOUNT	SOCKET MOUNT	SOCKET MOUNT	socket installation	socket installation
operating hours	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms	6 ms
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms	3 ms
seal	RT3	RT3	RT3	-	RT3	RT3	RT3	RT3
Maker	-	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	-	-
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-
Reach Compliance Code	-	compli	compli	compli	compli	compli	-	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
body width	-	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	-	-
body height	-	19.8 mm	19.8 mm	12.8 mm	19.8 mm	19.8 mm	-	-
Body length or diameter	-	23 mm	23 mm	20 mm	23 mm	23 mm	-	-
Maximum coil current (DC)	-	0.017 A	0.017 A	0.017 A	0.017 A	0.017 A	-	-
Coil operating voltage (DC)	-	8.4 V	8.4 V	8.4 V	8.4 V	8.4 V	-	-
Coil release voltage (DC)	-	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	-	-
Maximum coil voltage (DC)	-	12 V	12 V	12 V	12 V	12 V	-	-
Coil/Input Power Type	-	DC	DC	DC	DC	DC	-	-
Contact (AC) maximum rated R load	-	3A@250VAC	3A@250VAC	3A@250VAC	5A@250VAC	5A@250VAC	-	-
Maximum contact current (AC)	-	3 A	3 A	3 A	5 A	5 A	-	-
Maximum contact current (DC)	-	3 A	3 A	3 A	5 A	5 A	-	-
Contact (DC) maximum rated R load	-	3A@30VDC	3A@30VDC	3A@30VDC	5A@30VDC	5A@30VDC	-	-
Maximum contact voltage (AC)	-	250 V	250 V	250 V	250 V	250 V	-	-
Maximum contact voltage (DC)	-	30 V	30 V	30 V	30 V	30 V	-	-
Contact/Output Power Type	-	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	-	-
physical size	-	23mm x 9.8mm x 19.8mm	23mm x 9.8mm x 19.8mm	20mm x 9.8mm x 12.8mm	23mm x 9.8mm x 19.8mm	23mm x 9.8mm x 19.8mm	-	-
Guideline	-	CSA; UL	CSA; UL	CSA; UL; VDE	CSA; UL	CSA; UL	-	-
surface mount	-	NO	NO	NO	NO	NO	-	-
Termination type	-	SNAP-ON	SNAP-ON	SOLDER	SNAP-ON	SNAP-ON	-	-
