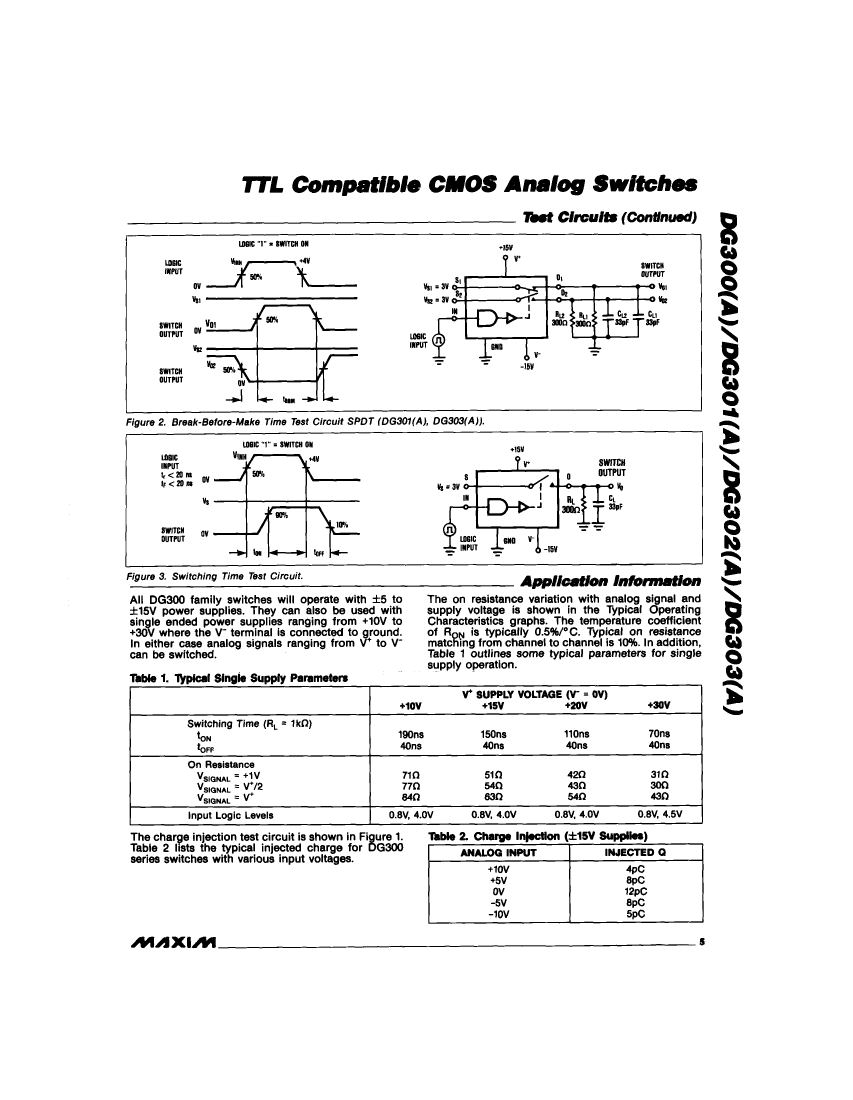

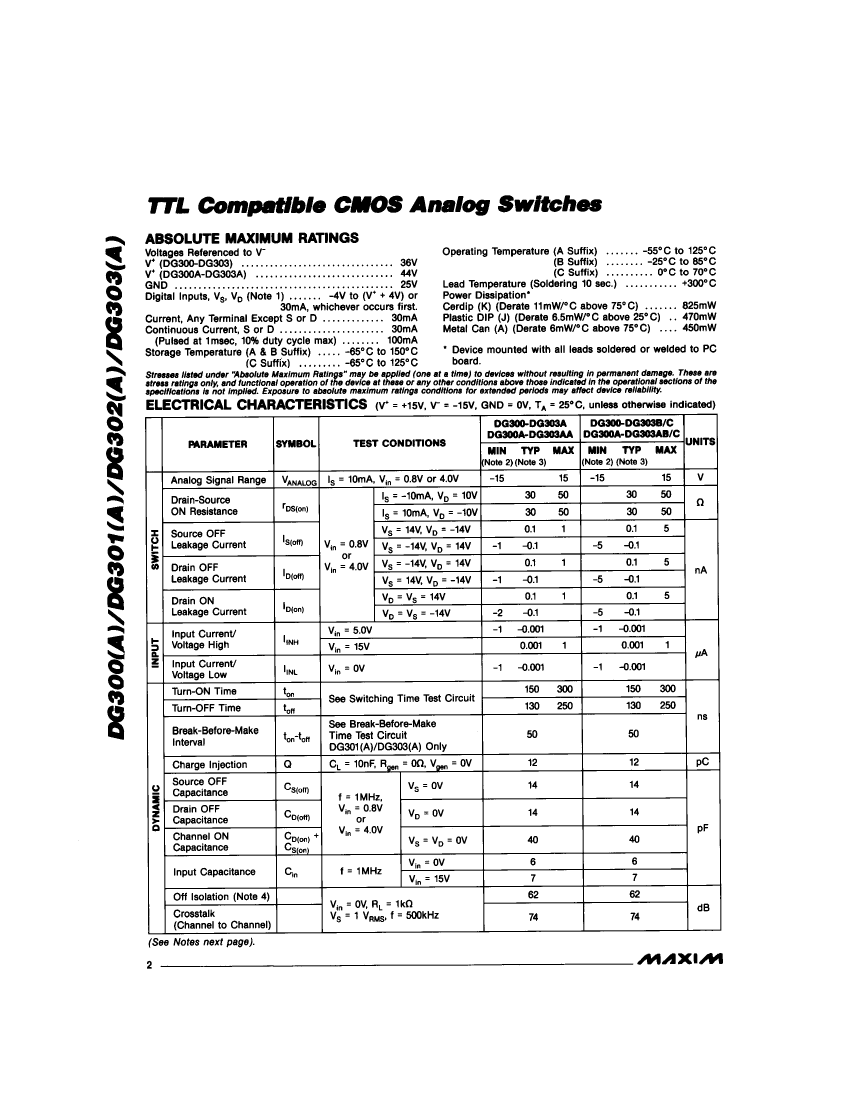

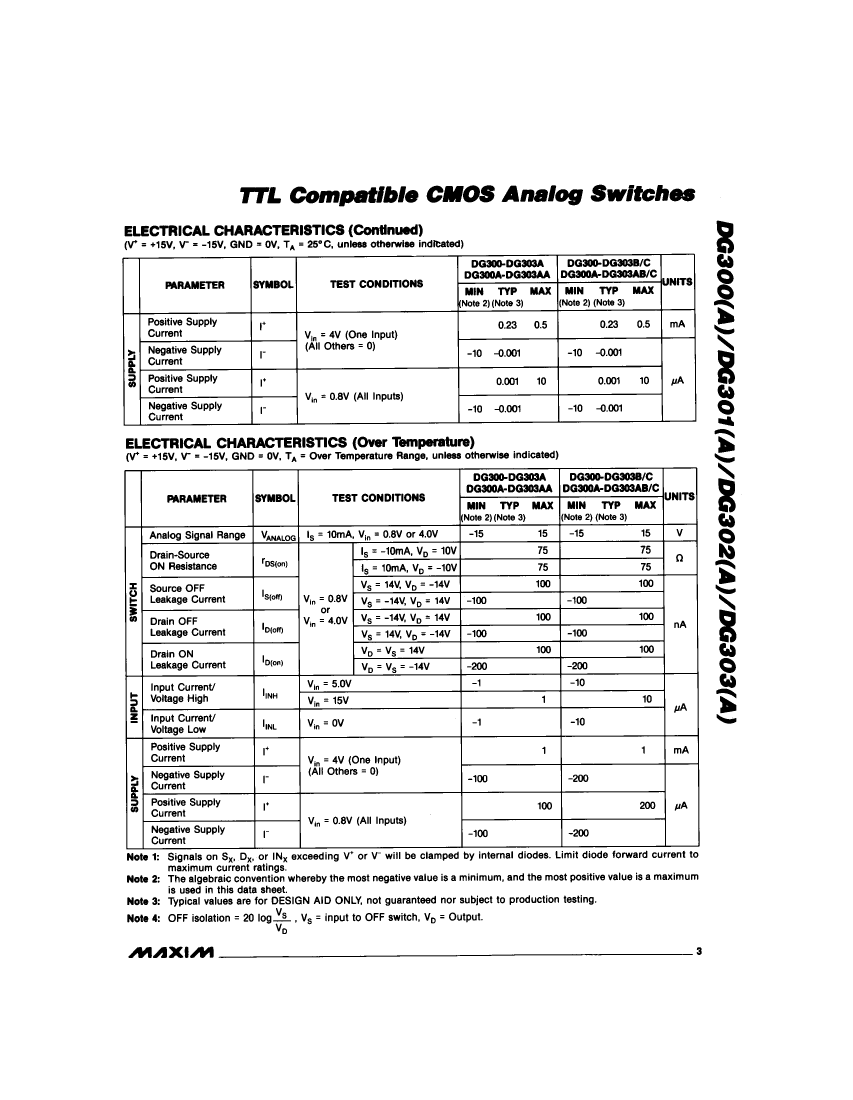

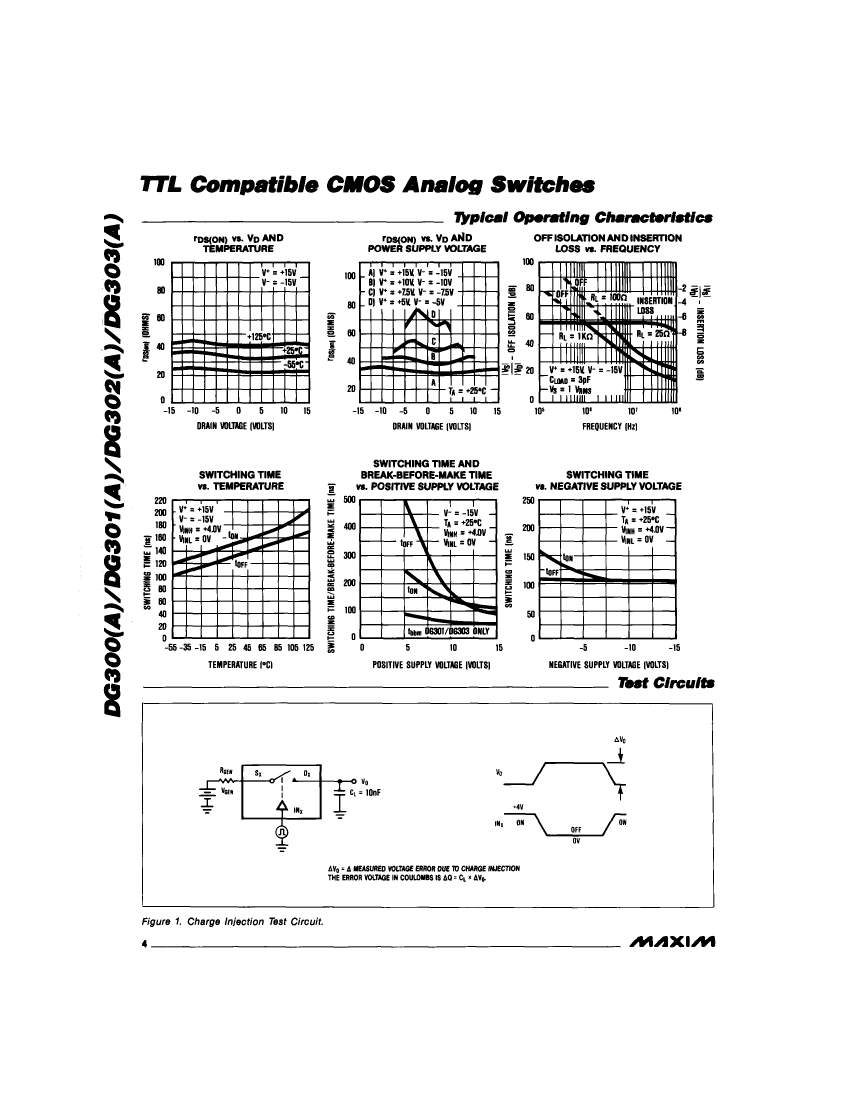

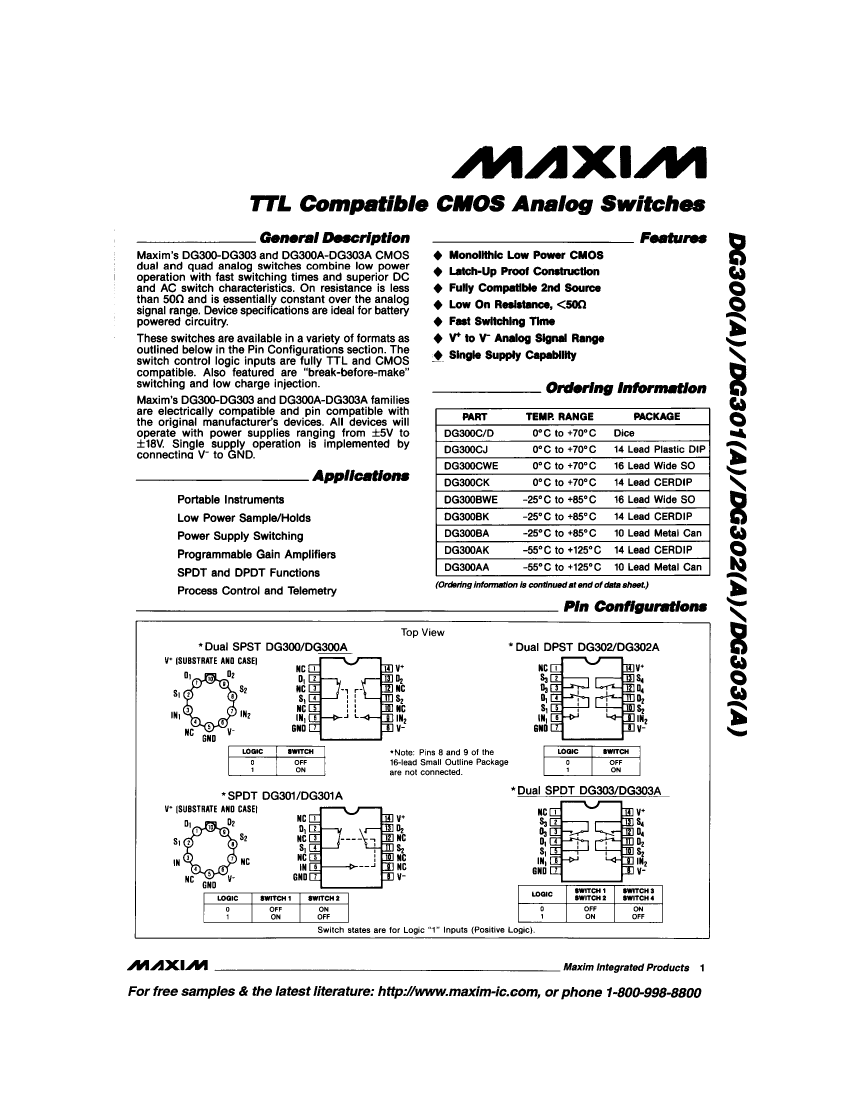

SPST, 2 Func, CMOS, CDIP14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Reach Compliance Code | not_compliant |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-XDIP-T14 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| normal position | NO |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| output | SEPARATE OUTPUT |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| DG300AAK/883 | DG300AAA/883 | DG303AAK/883 | DG301AAK/883 | DG300CA | DG301AAA/HR | DG301AAZ/883 | |
|---|---|---|---|---|---|---|---|
| Description | SPST, 2 Func, CMOS, CDIP14 | Multiplexers/Switches, 2 Func, CMOS, MBCY10 | SPDT, 2 Func, CMOS, CDIP14 | SPDT, 1 Func, CMOS, CDIP14 | Multiplexers/Switches, 2 Func, CMOS, MBCY10 | SPDT, 1 Func, CMOS, MBCY10 | SPDT, 1 Func, CMOS, CQCC20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| JESD-30 code | R-XDIP-T14 | O-MBCY-W10 | R-CDIP-T14 | R-XDIP-T14 | O-MBCY-W10 | O-MBCY-W10 | S-XQCC-N20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 | 1 | 2 | 1 | 1 |
| Number of terminals | 14 | 10 | 14 | 14 | 10 | 10 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | - | -55 °C | -55 °C |
| Package body material | CERAMIC | METAL | CERAMIC, METAL-SEALED COFIRED | CERAMIC | METAL | METAL | CERAMIC |
| Encapsulate equivalent code | DIP14,.3 | CAN10,.23 | DIP14,.3 | DIP14,.3 | CAN10,.23 | CAN10,.23 | LCC20,.35SQ |
| Package shape | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | ROUND | ROUND | SQUARE |
| Package form | IN-LINE | CYLINDRICAL | IN-LINE | IN-LINE | CYLINDRICAL | CYLINDRICAL | CHIP CARRIER |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| switch | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | COMMERCIAL | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | WIRE | THROUGH-HOLE | THROUGH-HOLE | WIRE | WIRE | NO LEAD |
| Terminal location | DUAL | BOTTOM | DUAL | DUAL | BOTTOM | BOTTOM | QUAD |
| Maker | Maxim | Maxim | Maxim | Maxim | - | Maxim | Maxim |
| Analog Integrated Circuits - Other Types | SPST | - | DPST | SPDT | - | SPDT | SPDT |
| output | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | - | SEPARATE OUTPUT | - | - |
| encapsulated code | DIP | - | DIP | DIP | - | - | QCCN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | - | MIL-STD-883 | 38535Q/M;38534H;883B | - | MIL-STD-883 Class B (Modified) | 38535Q/M;38534H;883B |
| surface mount | NO | - | NO | NO | - | - | YES |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm | - | - | 1.27 mm |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - | - |
| Maximum on-state resistance (Ron) | - | - | 50 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω |
| Maximum connection time | - | - | 300 ns | 300 ns | 300 ns | 300 ns | 300 ns |
