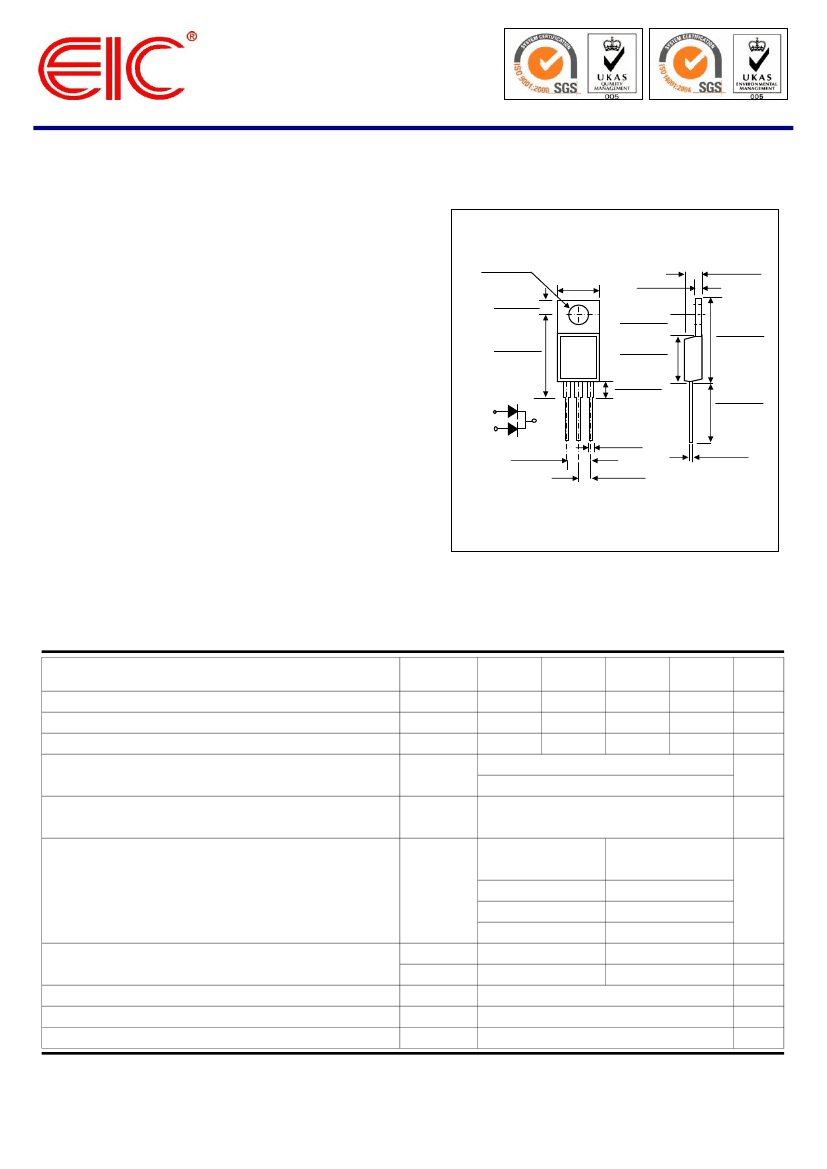

MBR2535CT ~ MBR2560CT
PRV : 35 ~ 60 Volts
Io : 30 Amperes
FEATURES :
* Plastic package has Underwriters Laboratory
Flammability Classifications 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
* High temperature soldering : 250°C/10 seconds,
0.25" (6.35mm) from case
* Pb / RoHS Free
* Case : JEDEC TO-220AB molded plastic body
* Terminals: Plated leads, solderable per
MIL-STD-750 Method 2026
* Polarity: As marked
* Mounting Position: Any
* Weight : 2.24 grams (Approximately)
DUAL SCHOTTKY
BARRIER RECTIFIERS
TO-220AB
0.154(3.91)DIA.
0.415(10.54)MAX.
0.148(3.74)
0.113(2.87)
0.103(2.62)
0.635(16.13)
0.625(15.87)
1 2 3
PIN 1
PIN 2
CASE
PIN 3
0.205(5.20)
0.195(4.95)
0.037(0.94)
0.027(0.68)
0.105(2.67)
0.095(2.41)
0.055(1.39)
0.045(1.14)
0.185(4.70)
0.175(4.44)
0.145(3.68)
0.135(3.43)
0.350(8.89)
0.330(8.39)
0.160(4.06)
0.140(3.56)
0.603(15.32)
0.573(14.55)
0.560(14.22)
0.530(13.46)
0.022(0.56)
0.014(0.36)
MECHANICAL DATA :
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATINGS
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
at T
C
= 130 °C
Total device
Per leg
( Tc = 25 °C unless otherwise noted)
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
MBR
2535CT
35
35
35
MBR
2545CT
45
45
45
MBR
2550CT
50
50
50
30
15
MBR
2560CT
60
60
60
UNIT
V
V
V
A
A
Peak Forward Surge Current, 8.3ms single half sine wave
superimposed on rated load (JEDEC Method) Per leg
Maximum Instantaneous Forward Voltage per leg (Note 1)
at I
F
= 15 A, T
C
= 25 °C
at I
F
= 15 A, T
C
= 125 °C
at I
F
= 30 A, T
C
= 25 °C
at I
F
= 30 A, T
C
= 125 °C
Maximum Reverse Current at Rated DC
Blocking Voltage per leg (Note 1)
Operating Temperature Range
Storage Temperature Range
Note :
(1) Pulse test : 300 µs pluse width, 1% duty cycle
Page 1 of 2
T
C
= 25 °C
T
C
= 125 °C
150
-
V
F
-
0.82
0.73
I
R
I
R(H)
R
ӨJC
T
J
T
STG
0.2
40
1.5
- 65 to + 150
- 65 to + 175
0.75
0.65
-
-
1.0
50
mA
mA
°C/W
°C
°C
V
Typical Thermal Resistance from Junction to Case Per leg
Rev. 01 : March 9, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM
RATING AND CHARACTERISTIC CURVES ( MBR2535CT ~ MBR2560CT )
FIG.1 - FORWARD CURRENT DERATING CURVE
30
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
150
24
PEAK FORWARD SURGE
CURRENT, (A)
AVERAGE FORWARD
CURRENT, (A)
120
T
J
=T
Jmax
8.3 ms single half sine-wave
(JEDEC Method)
18
90
12
60
6
Resistive or Inductive Load
0
30
0
0
25
50
75
100
125
150
1
2
4
6
10
20
40 60 100
CASE TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
100
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
PER LEG
20
10
Pluse Width = 300 µs
1% Duty Cycle
INSTANTANEOUS FORWARD
CURRENT, (A)
INSTANTANEOUS REVERSE
CURRENT, (mA)
10
1.0
T
J
= 125
°C
MBR2535CT & MBR2545CT
0.1
MBR2550CT & MBR2560CT
1.0
T
J
= 25
°C
0.1
MBR2535CT & MBR2545CT
MBR2550CT & MBR2560CT
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
0.01
T
J
= 25
°C
0.001
0
20
40
60
80
100
INSTANTANEOUS FORWARD
VOLTAGE, (V)
PERCENT OF RATED PEAK
REVERSE VOLTAGE, (%)
Page 1 of 2
Rev. 01 : March 9, 2006
