Power entry modules without line filter
https://www.schurter.com /PG05
DC11

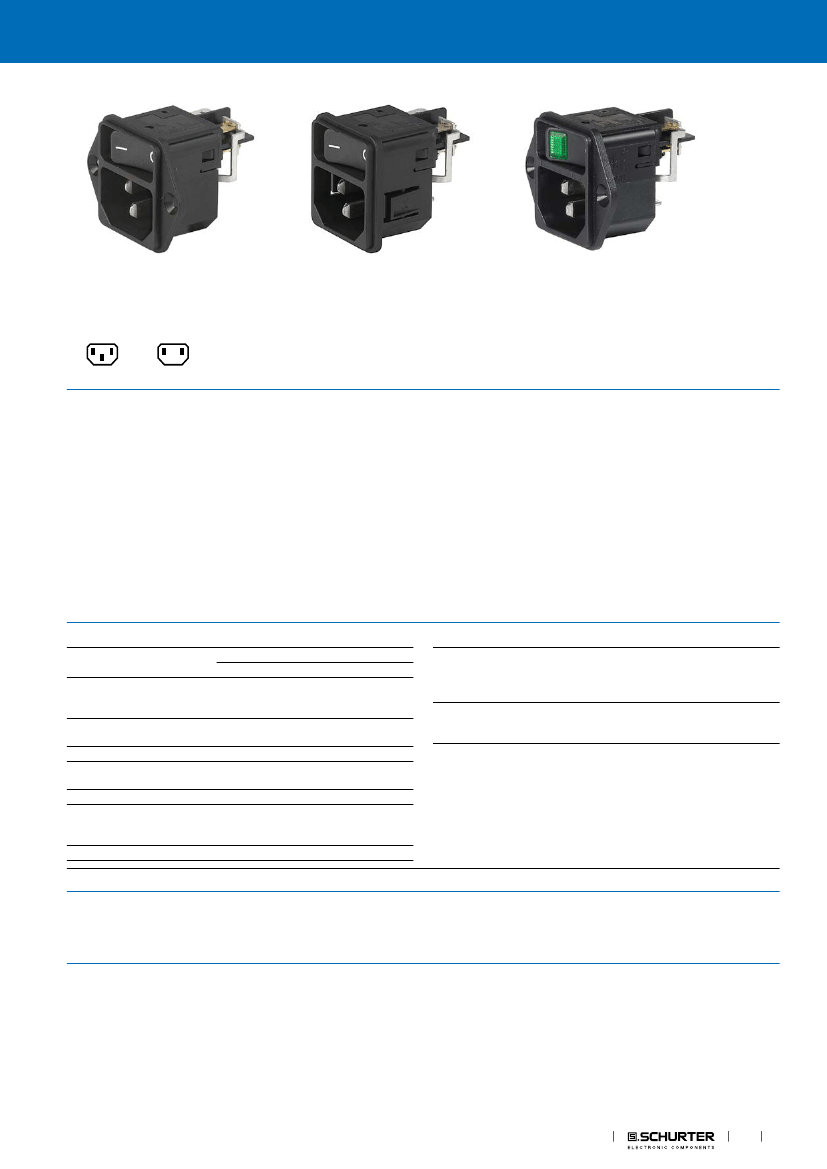

IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole
Screw-on mounting
non-illuminated
Snap-in version
non-illuminated
Screw-on mounting and line Switch illuminated
green
C14
C18
Approvals and Compliances
See below:
70° C
70° C
Description
- Panel mount :
Screw-on version from front or rear side, snap-in version from front
side
- Appliance Inlet protection class I or II , Line Switch 1- or 2-pole
- V-Lock notch standard
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
-
-
-
-
-
All single elements are already wired
Unwired versions available on request
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950
Other versions on request
Unique Selling Proposition
-
-
-
-
Ultra compact design
Line switch for high inrush currents
Components internally wired
V-Lock cord retaining
- Unwired versions
- Solder terminals
- Line switch with other rocker marking
References
Weblinks
Alternative: version with line filter
DC12
Substitute for type
KEB1; KEB2; 6010-K
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 50/60 Hz ¹⁾
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
Rocker switch 1 or 2 pole, non-illumina-
ted or illuminated, acc. to IEC 61058-1
Technical Details
Line Switch
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
1)
Standard version 12 A / special version 15A
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DC11
Connectors
1
DC11
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Certificate Number: 40007009
UL File Number: E96454
CCC Certificate Number: 2013010204594013
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Meets the requirements of IEC 60335-1 for appliances in unattended use.
This includes the enhanced requirements of glow wire tests acc. to IEC
60695-2-12 and -13.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
White paperGlow wire test
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
DC11

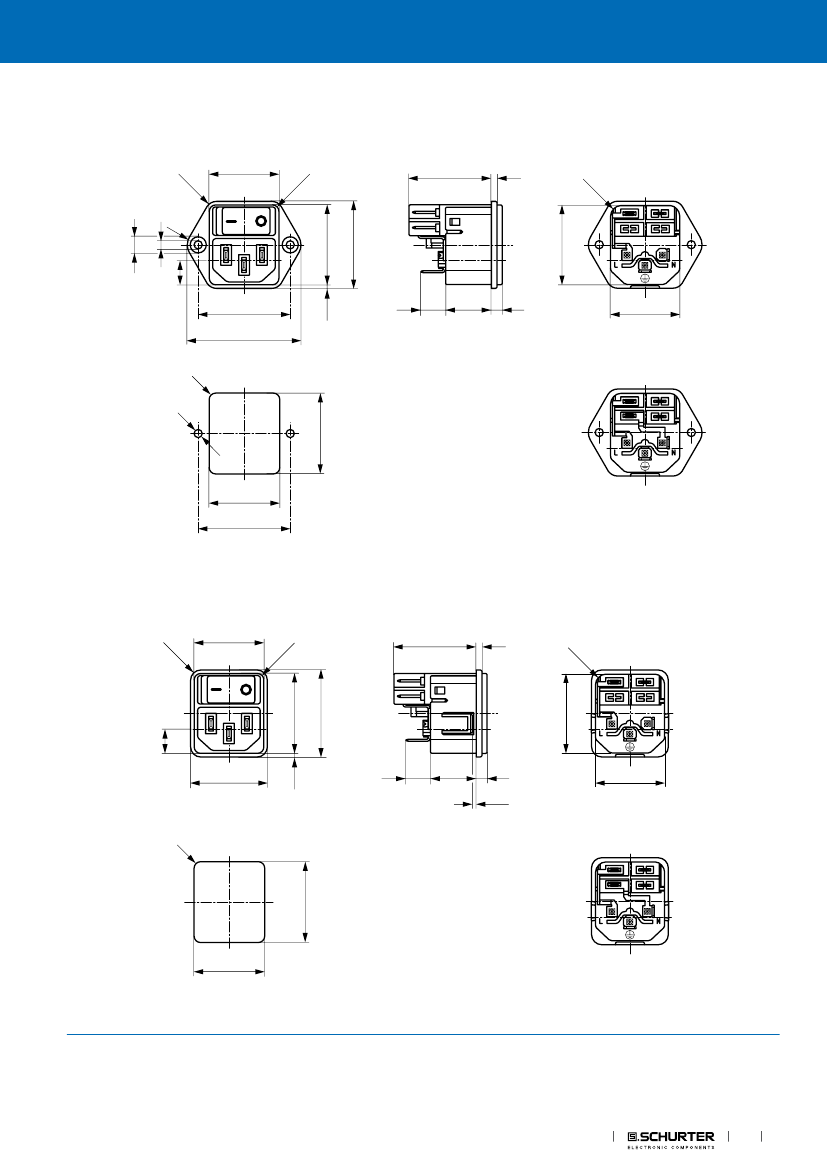

Dimensions [mm]
Screw-on mounting
R4
27.3
R 2.5
32.3
2.2
R 3.8
6.3x90°
R6
31.15
3.2
31.3
1)
34
9.65
1.35
36
44
R 2.4
±0.10
3.6/M3
9.8
17.9
4.2
27
31.6
±0.10
2)
27.6
±0.10
36
±0.10
1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated
Snap-in mounting
R4
27.3
R 2.5
32.3
2.2
R 3.8
31.15
9.65
31.3
1)
34
30
1.35
9.8
17.9
4.2
S
±0.1
27
R 2.4
±0.10
31.6
±0.10
2)
27.6
±0.10
1) 1-pol non-illuminated
2) 2-pol illuminated, 2-pol non-illuminated
Connectors
3
DC11
Diagrams
Line switch non-illuminated 2-pole
Line switch illuminated 2-pole
Power entry modules without line filter
https://www.schurter.com /PG05
Line switch non-illuminated 1-pole
1)
L
PE
N
2
2)
1)
L
PE
N
2
2)
1)
L
PE
N
2
2)
PE'
1
PE'
1
PE'
1
1) Line
2) Load
1) Line
2) Load
1) Line
2) Load
All Variants
Rated Current UL
Protection Class
Panel mounting
Panel Thickness
s [mm]
Line Switch
Illumination
Color
Order Number
12
15
12
12
12
12
12
12
15
12
12
12
15
12
12
15
12
12
12
15
12
12
15
12
15
█
Most Popular.
I
I
I
I
I
I
I
I
I
I
I
I
I
I
II
I
I
I
I
I
I
I
I
I
I
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
1.5
1.5
2
2.5
1.5
2
2.5
1.5
1.5
2
2.5
1.5
1.5
2
2
2.5
2.5
3
-
-
-
-
-
-
-
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
1-pole
1-pole
2-pole
2-pole
l
l
l
l
l
l
l
red
red
red
red
green
green
green
-
-
-
-
-
-
-
-
-
-
-
DC11.0021.201
DC11.0021.206
DC11.0021.301
DC11.0021.401
DC11.0031.201
DC11.0031.301
DC11.0031.401
DC11.0001.203
DC11.0001.207
DC11.0001.303
DC11.0001.403
DC11.0001.201
DC11.0001.206
DC11.0001.301
DC11.0001.351
3-107-445
DC11.0001.401
DC11.0001.501
DC11.0021.001
DC11.0021.006
DC11.0031.001
DC11.0001.003
DC11.0001.007
DC11.0001.001
DC11.0001.006
█
█
█
█
█
█
█
█
█
l
l
l
red
red
green
-
-
-
-
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
With screw mounting on PCB, 2 screws are included
All variants according VDE (ENEC 10) approved for 10 A
Packaging unit
50 Pcs
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
DC11

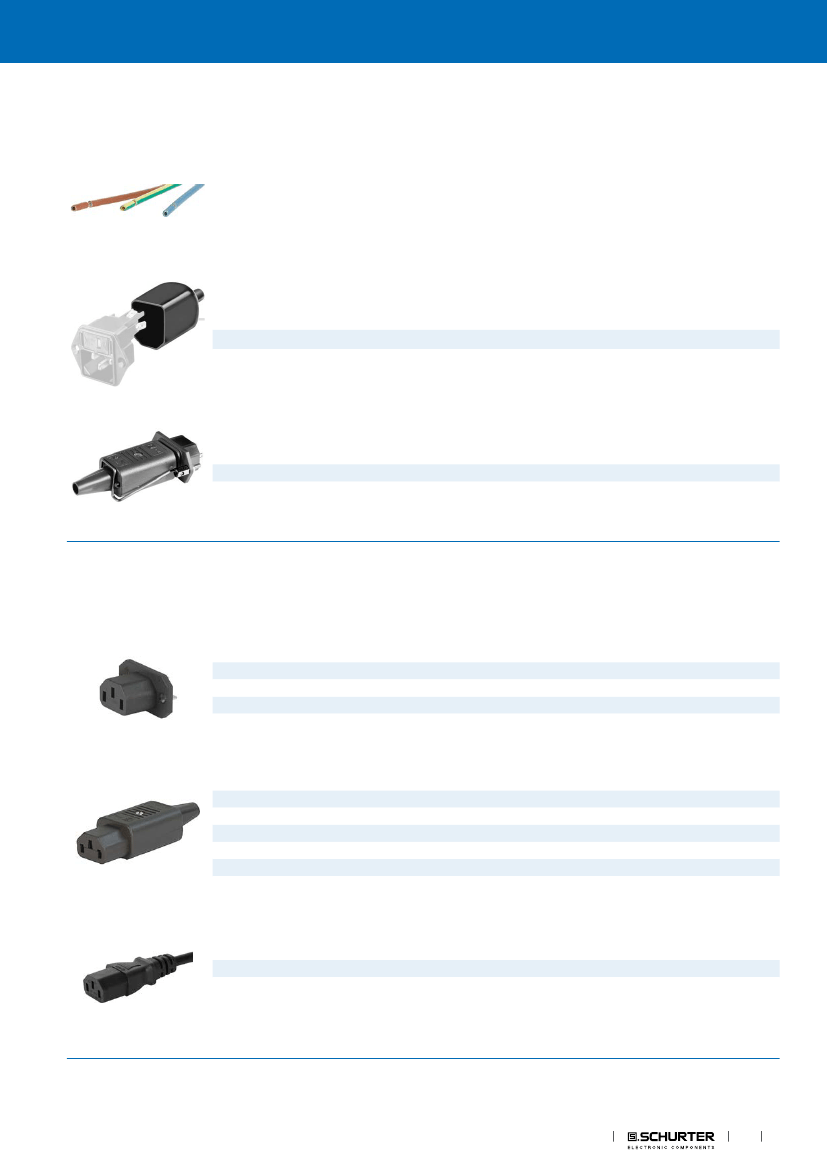

Accessories
Description
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
0859.0047
4311.9403
Cord retaining kits
Cord retaining strain relief
Flat head, A
Countersunk, B
4700.0001
4700.0002
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to DC11
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
IEC Connector C15 for hot conditions 120°C, Rewireable, Straight
IEC Connector C15 for hot conditions 120°C, Rewireable, Angled
Connector further types to DC11
4782
4785
4300-06
4781
4784
...
Power Supply Cord Overview complete
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Power Supply Cord further types to DC11
6004.0215
6003.0215
Connectors
5
