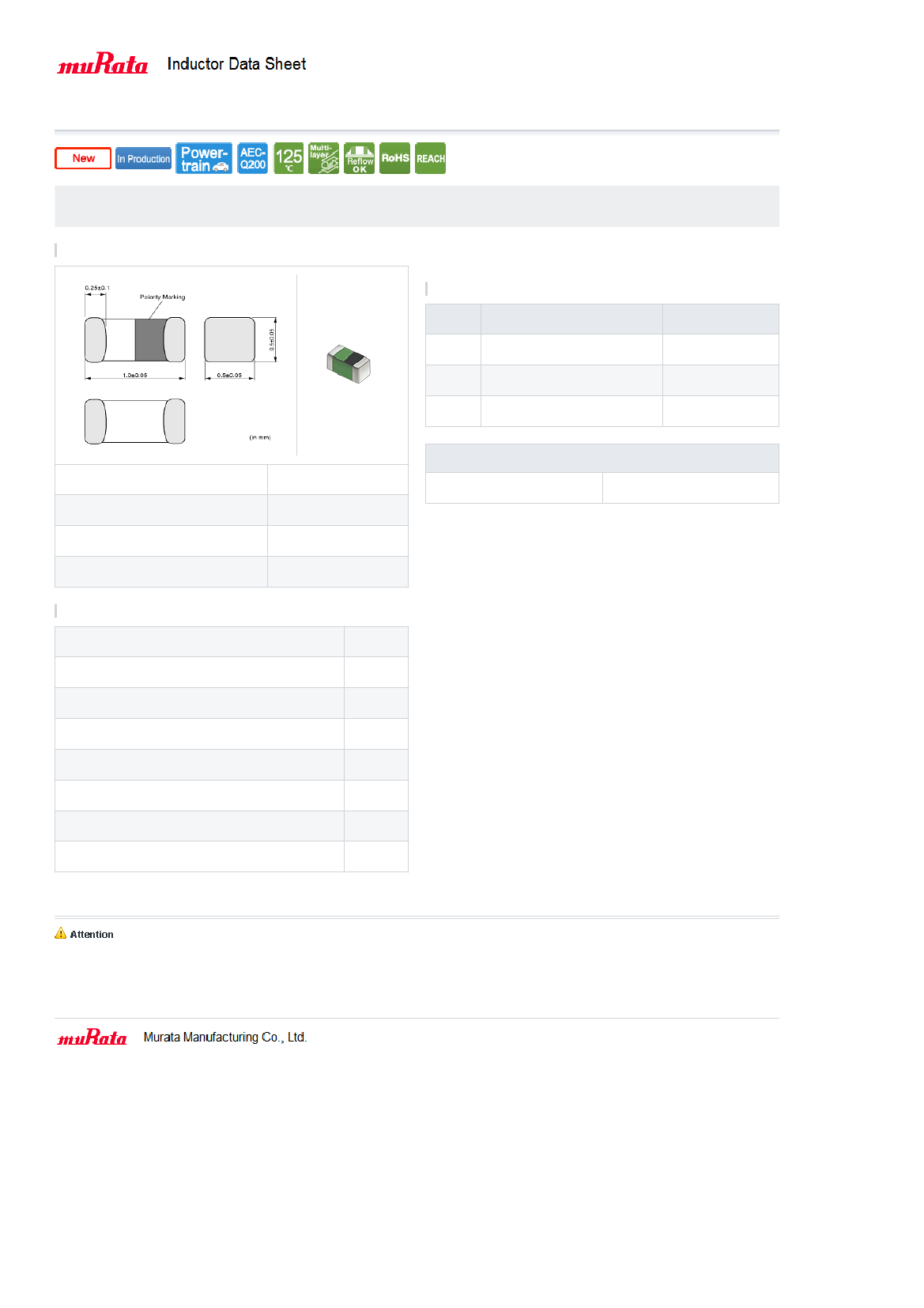

Preview

LQG15HHR10H02: DescriptionInductance; File Size68KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Compare View All

LQG15HHR10H02 Overview

Inductance

Preview

Download Datasheet

View All

LQG15HHR10H02#

# indicates a package specification code.

< List of part numbers with package codes >

LQG15HHR10H02D , LQG15HHR10H02J , LQG15HHR10H02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.05mm

0.5 ±0.05mm

0402 (1005)

1 piece

0.001g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

100nH ±3%

100MHz

200mA

1.25Ω

100MHz

600MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
