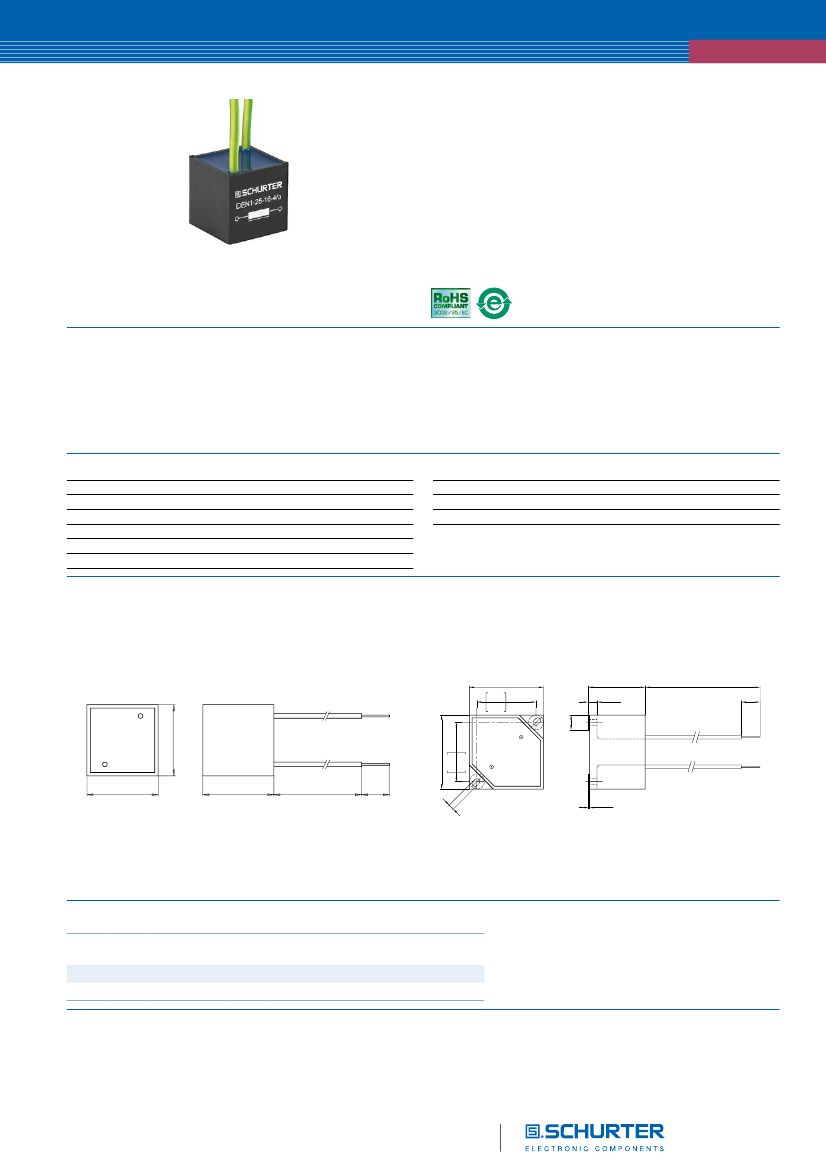

Suppression Chokes
www.schurter.com/pg8_82
Low frequency ground wire choke, fully potted resign
DEN
Description
- Ground wire chokes (earth line chokes)
- Wire leads
- Fully potted resign
Applications
- Separating the main earth line to periphery devices
- This type of chokes permits the building of a system free of ground
wire loops
Standards
- EN 60938
References
Weblinks
General Product Information
Approvals, RoHS, CHINA-RoHS, e-Store, Distributor-Stock-Check
Technical Data
Rated Current
Rated inductance
Power Operating Frequency
Terminal technic
Material: Housing
Sealing Compound
16 - 25 A @ Ta 40 °C
0.02 - 4 mH
< 5 MHz
Wire leads
UL 94V-0
UL 94V-0
Isolation Voltage
Climatic Category
Allowable Operation Temp.
2 kV eff., winding to ambient
25/100/21 acc. to IEC 60068-1
-25 °C to 100 °C
Dimensions
Case 25
Case 40
40
1 mm
2
30.8
4.8
M3
Ø
8
160
10
32
M2.5
1)
33
M3
40
1)
1mm
2
25.5
25.5
25.5
150
10
0.8
3.3
1) yellow/green
Variants
I
n
[A]
16
25
L
n
[mH]
4
4
R
cu
[mΩ]
27
10.5
f
RES
[MHz]
0.3
0.3
Weight [g]
42
38
Packing unit [pcs.]
50
50
Order Number
DEN-25-0001
DEN-40-0001
The specifications, descriptions and illustrations indicated in this document are based on
EMC Products
current information. All content is subject to modifications and amendments.
