CL-191YG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CL-191YG

CL-191YG: DescriptionMono-Color Upward-Lighting Type; CategoryLED optoelectronic/LED photoelectric; File Size491KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric Compare View All

CL-191YG Overview

Mono-Color Upward-Lighting Type

CL-191YG Parametric

Parameter Name	Attribute value
Maker	CITIZEN
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2
Reach Compliance Code	unknow
color	YELLOW GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	NONDIFFUSED
Nominal luminous intensity	18.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.6 mm
method of packing	BULK
peak wavelength	570 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.5 mm

Preview

Download Datasheet

View All

●●●●●●●●●●

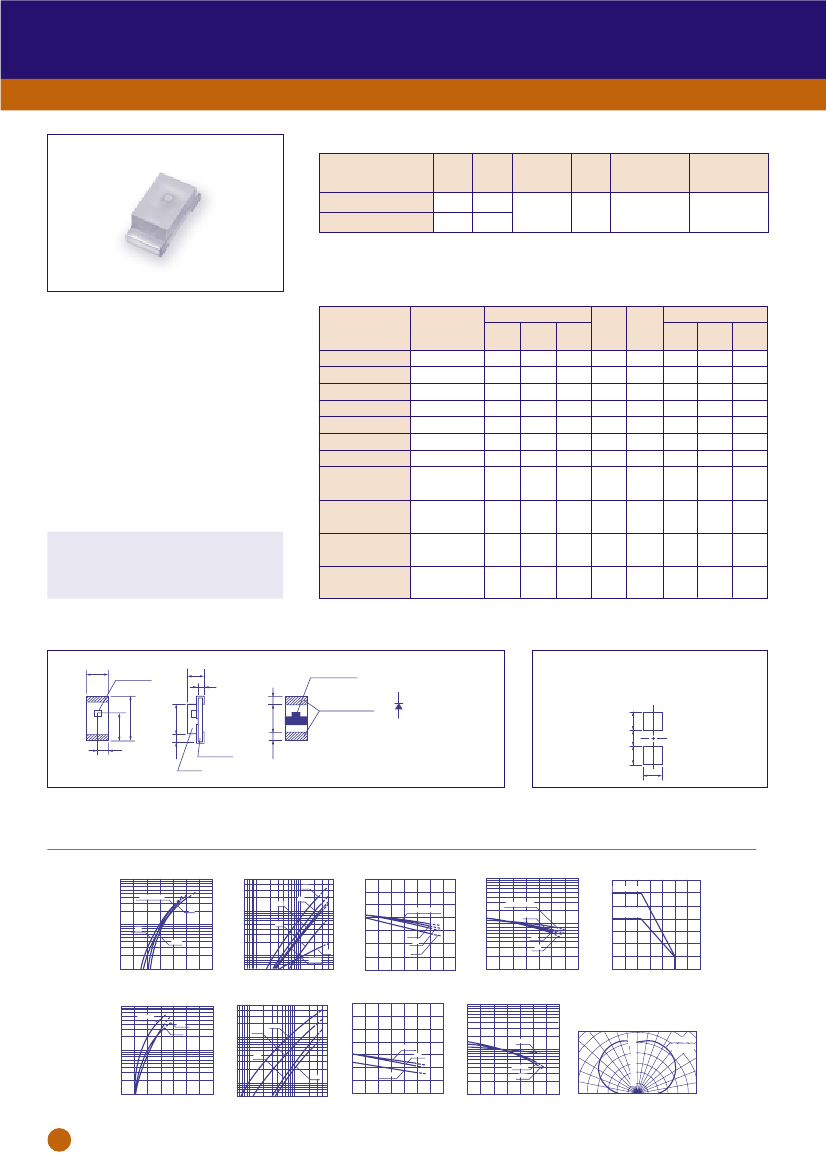

上面発光・単色タイプ

CL-191 シリーズ

Mono-Color Upward-Lighting Type

CL-191 Series

●絶対最大定格/Absolute

Maximum Rating

Product code

CL-191

(mW)

(mA)

100

※1

(V)

Top

(℃)

−25∼＋80

(Ta 25℃)

Tst

(℃)

−30∼＋85

(

UR,HRを除く

)

Except UR and HR

CL-191UR/HR

※1

の条件はduty 1/10 、

パルス巾30msecです。

Condition for I

is pulse of 1/10 duty and 30msec width.

1.6(L)×0.8(W)×0.6

（H）

●電気的光学的特性/Electro-optical

Characteristics

● CL-190の厚み

（0.8mm）

をさらに薄くし

た小型チップLEDです。

● Small-sized chip LED even thinner than CL-

190(0.8mm thick).

(Ta 25℃)

V※

min

typ

(mA) (mcd) (mcd)

0.5

2.4

2.6

2.5

2.2

1.5

3.5

1.3

7.1

6.4

6.5

4.3

6.2

Product code

CL-191R

CL-191D

CL-191Y

CL-191YG

CL-191G

CL-191FG

CL-191PG

CL-191SR

CL-191SD

Lighting color

Red

Orange

Yellow

Yellow green

Green

Fresh green

Pure green

Super

brightness red

Super brightness

orange

Ultra

brightness red

High

brightness red

(mA)

typ

(V)

2.2

2.1

2.2

1.8

max

(V)

2.6

typ

(nm)

700

605

589

570

567

560

557

650

630

660

Δλ

typ

(nm)

100

発光色のラインアップにつきましては、発注時にお問い

合わせの上、ご確認ください。

Please contact us at the time of order for the lineup of

luminescent colors.

CL-191UR

CL-191HR

※NIST規格に準拠

※Per NIST standards

●外½寸法図/Outline

drawing

0.8

LED 素子

LED die

推奨はんだ付けパターン

0.6

0.18

カ½ードマーク

(0.3)

The following soldering patterns are recommended for

reflow-soldering:

リフローはんだ用

For reflow soldering

Cathode mark

はんだ付け電極

(1.2)

1.6

(1.08)

(0.2)

樹脂

Resin

P.C. board

0.8

基板

0.3

(0.4)

※UR,HRは極性が逆です。

※Polarity is reversed

on the UR and HR.

0.7

極性※

Polarity※

0.8

Soldering terminal

単½/Unit : mm

0.8

■ 諸特性／

Characteristics

-V

特性

-V

Characteristics

100

2.6

R/YG/G/FG

2.4

YG/G/FG/PG

500

CL-191UR•HR

Iv-I

特性

Iv-I

Characteristics

-Ta 特性

-Ta Characteristics

Iv-Ta 特性

Iv-Ta Characteristics

max-Ta 特性

max-Ta

Characteristics

Iv(mcd)

(mA)

Iv ( in％)

1.6

1.8

2.0

2.2

max

(mA)

200

100

(

)

2.2

2.0

1.8

CL-191

シリーズ

CL-191Series

Y/FG

0.5

2.4

2.6

1.6

- 20

100

- 20

100

- 20

100

(

)

-V

特性

-V

Characteristics

100

UR/HR

(mA)

Iv-I

特性

Iv-I

Characteristics

2.6

2.4

T a (

-Ta 特性

-Ta Characteristics

500

Iv-Ta 特性

Iv-Ta Characteristics

指向特性

Directive Characteristics

40°

30°

20° 10°

120

100

60°

UR/HR

70°

80°

90°

- 20

100

70°

80°

90°

50°

100

0°

10° 20°

30°

40°

50°

全機種共通

Common to

all colors

Iv(mcd)

(

)

2.2

2.0

1.8

Iv ( in％)

(mA)

200

60°

1.6

1.8

2.0

2.2

2.4

2.6

0.5

UR/HR

1.6

- 20

100

(

)

(mA)

T a (

CL-191YG Related Products

	CL-191YG	CL-191	CL-191HR	CL-191R	CL-191PG	CL-191UR
Description	Mono-Color Upward-Lighting Type	Mono-Color Upward-Lighting Type	Mono-Color Upward-Lighting Type	Mono-Color Upward-Lighting Type	Mono-Color Upward-Lighting Type	Mono-Color Upward-Lighting Type
Maker	CITIZEN	-	CITIZEN	CITIZEN	CITIZEN	CITIZEN
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2	-	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, ULTRA SMALL PACKAGE-2
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow
color	YELLOW GREEN	-	HIGH BRIGHT RED	RED	PURE GREEN	ULTRA BRIGHT RED
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	-	0.03 A	0.02 A	0.02 A	0.03 A
Lens type	NONDIFFUSED	-	NONDIFFUSED	NONDIFFUSED	NONDIFFUSED	NONDIFFUSED
Nominal luminous intensity	18.0 mcd	-	23.0 mcd	1.3 mcd	3.0 mcd	13.0 mcd
Installation features	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	-	1	1	1	1
Number of terminals	2	-	2	2	2	2
Maximum operating temperature	80 °C	-	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.6 mm	-	0.6 mm	0.6 mm	0.6 mm	0.6 mm
method of packing	BULK	-	BULK	BULK	BULK	BULK
peak wavelength	570 nm	-	660 nm	700 nm	557 nm	660 nm
shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.2 mm	-	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	-	YES	YES	YES	YES
Terminal pitch	1.5 mm	-	1.5 mm	1.5 mm	1.5 mm	1.5 mm
