PCS-D68RMA1G1+: DescriptionTelecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

PCS-D68RMA1G1+ Overview

Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, ROHS COMPLIANT

PCS-D68RMA1G1+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	68

Preview

Download Datasheet

View All

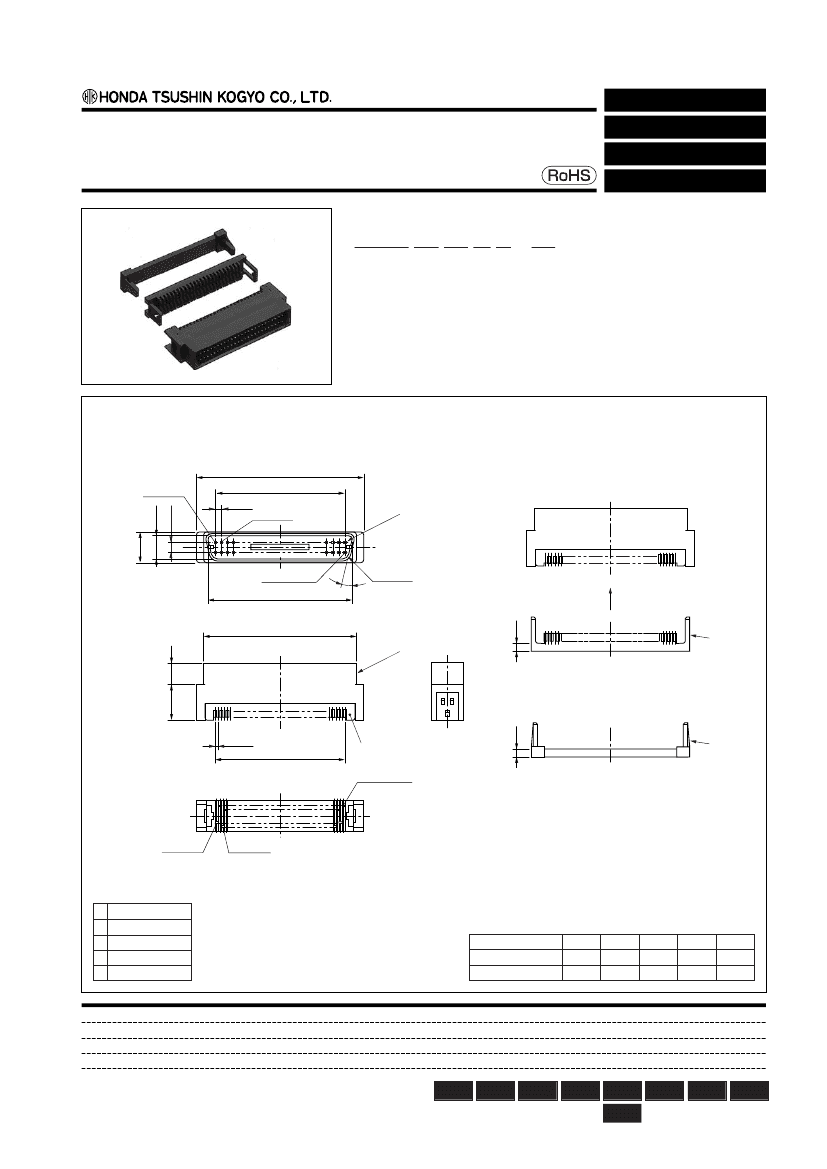

1.27 mm pitch connector

IDC type male connector for cable

PCS-D( )( )MA1( )+

●

Configuration of product Part No.

For cable

IDC (0.635 mm)

Daisy chain

PCS-D ( ) ( ) M A 1 ( )+

➀

➁

➂

➃ ➄

➅

Contact plating

Blank: Min. 0.2

μm

Gold plating

G1 : Min. 0.76

μm

Gold plating

➀

Series name

➁

No. of contacts: 50 or 68

➂

Strain relief

Blank: Not provided

R

: Provided

➃

Type of contact: Male

➄

Cable size

A: AWG#30 (7 / 0.1) For flat cable

A

POS.#1

5.69

2.54

1.27

POS.#2

B

➀

7.3

LAST POS.

C

15˚

4-R1.04

IDC direction

2.0

D

5.1

➁

➃

8.65

0.635

E

2.5

➂

LAST POS.

➄

POS.#1

POS.#2

●

Components

➀

Contacts

➁

Insulator

➂

Cable housing A

➃

Cable housing B

➄

Strain relief

Because some combinations of “Configurations of

Product Part No.”, are under consideration for

development, please contact us for availability details.

●

Dimensions

A

PCS-D50( )MA1( )+

40.13

PCS-D68( )MA1( )+

51.56

Part No.

B

30.48

41.91

C

34.85

46.28

D

36.8

48.23

E

31.115

42.545

Mating connectors:

PCS series straight through hole type female connector for PCB

PCS-XE series through hole type female connector for PCB

Required tools:

MLPT-0003A (68 contacts) and MLPT-0003B (50 contacts) locators

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole

PCS-D68RMA1G1+ Related Products

	PCS-D68RMA1G1+	PCS-D68MA1G1+	PCS-D68MA1G1	PCS-D68RMA1G1	PCS-D50MA1+	PCS-D50MA1G1+	PCS-D50RMA1+	PCS-D50RMA1G1+	PCS-D68MA1+
Description	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal,	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal,	Telecom and Datacom Connector, 50 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 50 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 50 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 50 Contact(s), Male, IDC Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Male, IDC Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	conform to	conform to	conform to	conform to	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (8)	GOLD (30)	GOLD (8)	GOLD (30)	GOLD (8)
Contact completed and terminated	Gold (Au)	Gold (Au)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e0	e0	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	68	68	68	68	50	50	50	50	68
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
ECCN code	-	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	-
