PCS-E20LMD

Description
Telecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, M2.5, Receptacle,
CategoryThe connector    The connector
File Size71KB，1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Environmental Compliance
Download Datasheet Parametric Compare View All

PCS-E20LMD Overview

Telecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, M2.5, Receptacle,

PCS-E20LMD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?incompatible
MakerHonda Tsushin Kogyo Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTAGGERED CONFIGURATION
Board mount optionsM2.5 THREADED HOLES
body width0.413 inch
subject depth0.452 inch
body length1.315 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance35 mΩ
DIN complianceNO
Dielectric withstand voltage750VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1M2.5
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
Number of connectorsONE
PCB row number4
Number of ports1
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
polarization keyD-SHAPE
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialZINC ALLOY
Terminal length0.134 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts20
UL Flammability Code94V-0

Preview

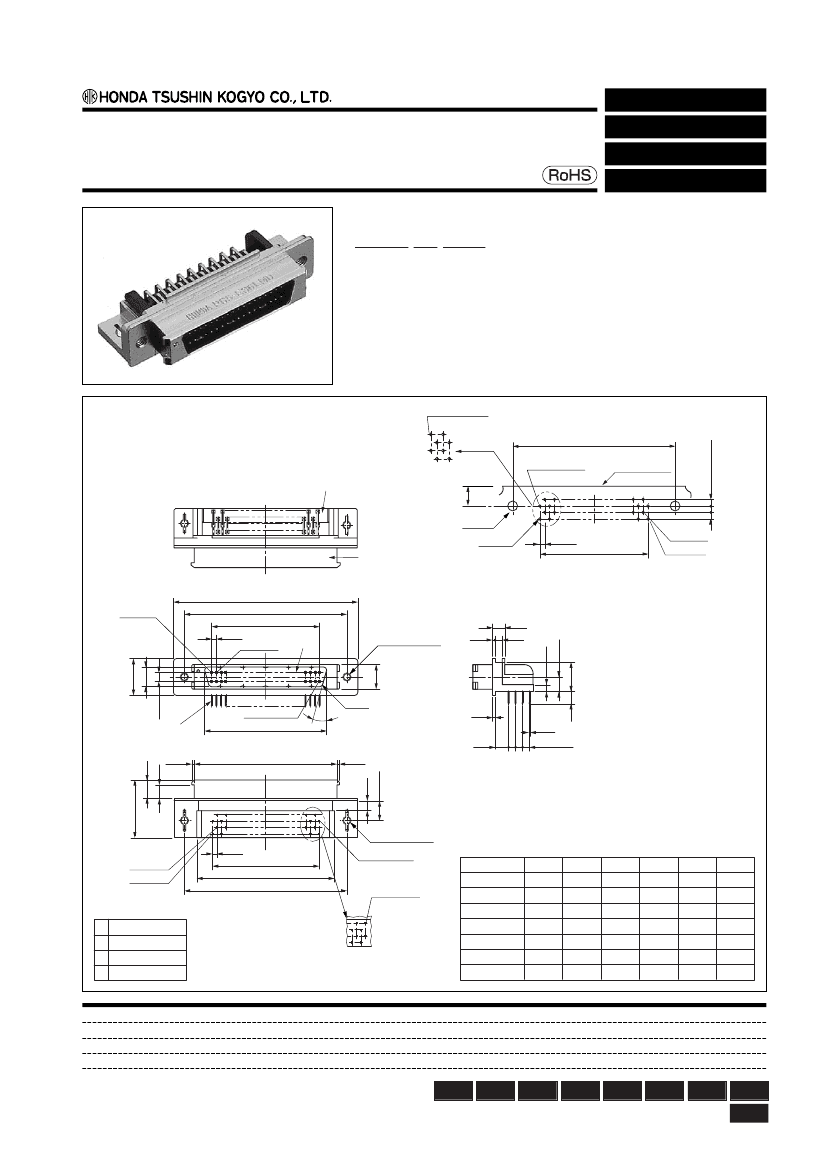

Download Datasheet
1.27 mm pitch connector
Right-angle through hole type male connector for PCB
PCS-E( )LMD+
●
Configuration of product Part No.
For PCB
Right-angle Through hole
PCS-E ( ) LMD+
➀
➁
➂
➀
Series name
➁
No. of contacts: 20, 28, 36, 50, 68, 80 or 96
➂
Type of connector
LMD: Right-angle through hole type, male
LAST POS.
1.905
±0.05
≈3
E
21.6
26.7
31.8
40.7
52.1
59.7
69.9
F
20.23
25.31
30.39
39.28
50.71
58.33
68.49
SMT
Through
hole
Except 50-contact connector
LAST POS.
5.705
B
0.1
-
+
Board-edge
➃
2-ø2.8
ø0.8
0.06
-
+
1.27
0.05
-
+
➀
A
B
C
1.27
POS.#2
10.5
5.7
C
0.1
-
+
POS.#2
POS.#1
Recommended PCB layout
(Connector side)
t = 1.6 mm
3.6
2.0
POS.#1
2.0
4.37
œ0.4
1.905≈3
A
33.4
38.5
43.6
52.5
63.9
71.5
81.7
3.4
B
27.4
32.5
37.6
46.5
57.9
65.5
75.69
8.47
➁
7.0
2-M2.5≈0.45
0.8
2.54
4-R1
➂
0.85
LAST POS.
D
E
15˚
0.8
4
5.5
4.0
0.85
2.8
5.905
2-M2.5≈0.45
17.0
1.27
POS.#2
POS.#1
C
F
B
LAST POS.
●
Dimensions
Part No.
PCS-E20LMD+
C
11.43
16.51
21.59
30.48
41.91
49.53
59.69
D
15.8
20.88
25.96
34.85
46.28
53.9
64.06
LAST POS.
PCS-E28LMD+
PCS-E36LMD+
PCS-E50LMD+
PCS-E68LMD+
●
Components
➀
Shell
➁
Insulator
➂
Contacts
➃
Bracket
Except 50-contact connector
PCS-E80LMD+
PCS-E96LMD+
Mating connectors:
PCS-E series cable-side IDC type female connector
PCS-E series cable-side soldering type female connector
Accessories:
Dust-proof cap, PCS-( )C( )
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
