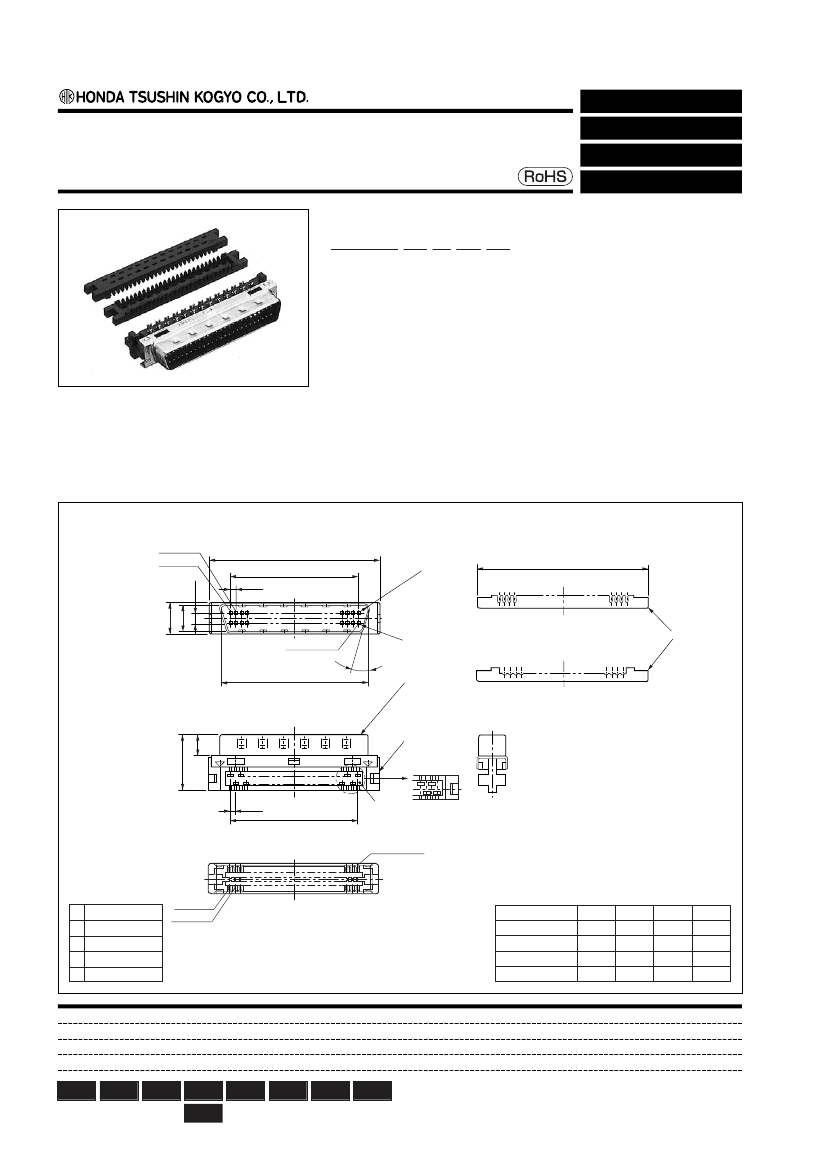

1.27 mm pitch connector
IDC type male connector for cable
PCS-XE( )M( )( )+
●
Configuration of product Part No.
For cable
IDC (1.27 mm)
SCSI-II, SCSI-III
PCS-XE ( ) M ( ) ( )+
➀
➁
➂
➃
➄
➀
Series name
➁
No. of contacts: 26, 50, 68 or 100
➂
Type of contact: Male
➃
Cable sizes for reference purposes (In case the cable insulation is made of PVC resin)
Blank : AWG#28(7 / 0.127) or AWG#30(1 / 0.254). Outside diameter of insulation is
0.8-1.0 mm. For discrete wire. (See Note #1)
A
: AWG#28(7 / 0.127) or AWG#30(1 / 0.254). Outside diameter of insulation is
0.5-0.65 mm. For discrete wire.
B
: AWG#30(7 / 0.1). Outside diameter of insulation is 0.5-0.65 mm. For discrete wire.
C
: AWG#28(7 / 0.127) or AWG#30(1 / 0.254). For flat cable, t = 1.0 mm MAX.
(See Note #2)
E
: AWG#30(7 / 0.1). For flat cable, t = 1.0 mm MAX. (See Note #2)
J
: AWG#28(7 / 0.127) or AWG#30(1 / 0.254). Outside diameter of insulation is
0.65-0.8 mm. For discrete wire.
K
: AWG#30(7 / 0.1). Outside diameter of insulation is 0.65-0.8 mm. For discrete wire.
Q
: AWG#30(7 / 0.1). Outside diameter of insulation is 0.8-1.0 mm. For discrete wire.
➄
Contact plating
Blank : Min. 0.2
μm
Gold plating
G1 : Min. 0.76
μm
Gold plating
POS.#2
POS.#1
2.54
1.27
A
B
4-R
4
1.0
D
7.3
5.7
Cable cover for discrete wire
LAST POS.
15˚
C
➀
➁
Cable cover for flat cable
➄
13.2
5
➂
1.27
B
➃
For 68 or 100-contact connector
LAST POS.
Note 1: P/N PCS-XE100M+ is not available.
Note 2: This 100-contact connector is not available
for flat cable. (C, E)
●
Components
➀
Contacts
➁
Shell
➂
Insulator
➃
Spacer
➄
Cable cover
POS.#1
POS.#2
●
Dimensions
Part No.
PCS-XE26M( )( )+
PCS-XE50M( )( )+
PCS-XE68M( )( )+
A
25.46
40.7
52.13
B
15.24
30.48
41.91
62.23
C
19.61
34.85
46.28
66.6
D
25.46
40.7
52.1
72.4
Because some combinations of “Configurations of Product
Part No.”, are under consideration for development, please
contact us for availability details.
PCS-XE100M( )( )+
72.45
Mating connectors:
PCS-XE series straight or right-angle through hole type female connector for PCB.
PCS-XE series SMT type female connector.
For use with housings:
SCSI-II: PCS-E( )L( ). SCSI-III: PCS-XEM( )DL( )( )N
Required tools:
Discrete wire tool: PCS-K1 or FHAT-918B and FHPT-918A. Flat cable tool: PCS-K4
Through
hole
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
Test/Measurement
