PCS-XE68SFDN+: DescriptionTelecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PCS-XE68SFDN+ Overview

Telecom and Datacom Connector, 68 Contact(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

PCS-XE68SFDN+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (8)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL; NICKEL
Shell material	STEEL; ZINC ALLOY
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

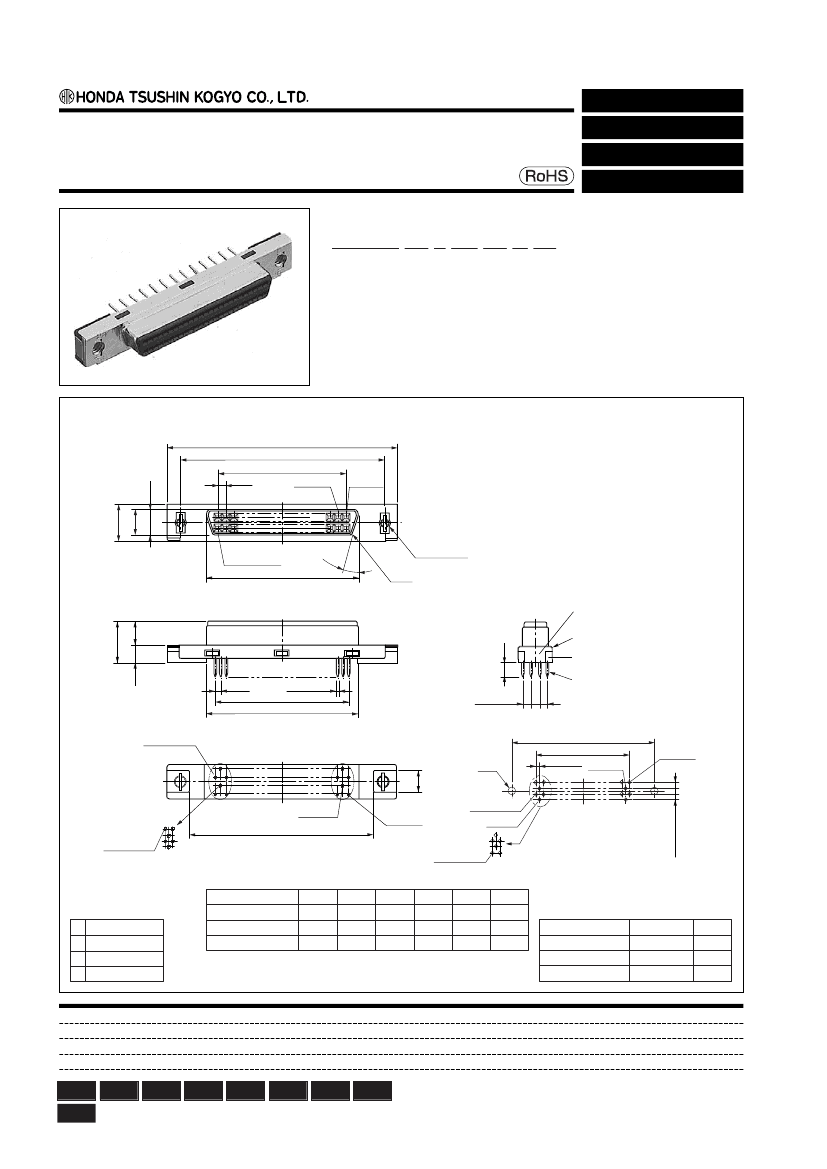

1.27 mm pitch connector

Straight through hole type female connector for PCB

PCS-XE( )SFD( )N( )+

●

Configuration of product Part No.

For PCB

Straight Through hole

SCSI-III

PCS-XE ( ) S FD ( ) N ( )+

➀

➁

➂

➃

➄

➅

➆

➄

Screw size

Blank: M2.5≈0.45

U

: #4-40UNC (standard)

U2 : #2-56UNC

➅

Lock type

N: Screw lock

➆

Contact plating

Blank: Min. 0.2

μm

Gold plating

G1 : Min. 0.76

μm

Gold plating

➀

Series name

➁

No. of contacts: 50, 68 or 100

➂

Type of shell

S: Short shell

➃

Type of connector

FD: Straight through hole type,

female

A

B

C

2.54

1.27

POS.#2

POS.#1

Note 1: This 26-contact connector is not available

for #4-40UNC and #2-56UNC screws.

5.54

8.2

LAST POS.

D

15

˚

Screw size

4-R1

➀

9.2 REF.

5.4

3.4

➁

•

➂

➃

3.8

1.27

C

E

LAST POS.

0.35≈0.4

1.905≈3

• •

øG

5.0

+

-

0.1

B

0.1

+

C

0.1

+0.05

1.27

POS.#2

-

+

POS.#1

POS.#2

F

LAST POS.

For 68 or 100-contact

connectors

POS.#1

ø0.8

0.06

-

+

●

Dimensions

Part No.

PCS-XE50SFD( )N( )+

PCS-XE68SFD( )N( )+

PCS-XE100SFD( )N( )+

A

52.5

63.9

84.3

B

46.5

57.9

78.23

LAST POS.

For 68 or 100-contact

connectors

C

30.48

41.91

62.23

D

34.7

46.13

66.45

E

35.24

46.67

66.99

F

42.1

53.5

73.85

Recommended PCB layout

(Connector side)

t = 1.6 mm

●

Components

➀

Shell A

➁

Shell B

➂

Insulator

➃

Contacts

Part No.

PCS-XE( )SFDN( )+

PCS-XE( )SFDUN( )+

PCS-XE( )SFDU2N( )+

Screws size

M2.5≈0.45

#4-40UNC

#2-56UNC

1.905

±0.05

≈3

Because some combinations of “Configurations of Product Part No.”, are under

consideration for development, please contact us for availability details.

Mating connectors:

PCS-XE series IDC type male connector

JAPAN

HONDA

•

LAST POS.

øG

2.8

3.05

2.5

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others
