NJM2581M Overview

Video Amplifier, 3 Channel(s), 1 Func, Bipolar, PDSO14, DMP-14

NJM2581M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	DMP-14
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Nominal bandwidth	50000 kHz
Commercial integrated circuit types	VIDEO AMPLIFIER
Gain	6.4 dB
JESD-30 code	R-PDSO-G14
JESD-609 code	e6
length	10 mm
Number of channels	3
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-5 V
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum slew rate	33 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm

Preview

Download Datasheet

View All

NJM2581

DUAL SUPPLY WIDE BAND 3ch VIDEO AMPLIFIER

GENERAL DESCRIPTION

The

NJM2581

is a dual supply voltage wide band 3ch

video amplifier. It is suitable for Y, Pb, and Pr signal because

frequency range is 50MHz.

The

NJM2581

is suitable for Set Top Box, AV amplifier,

and other high quality AV systems.

PACKAGE OUTLINE

NJM2581D

FEATURES

Operating Voltage

±4.5 to ±5.5V

Wide frequency range

50MHz at 0dB typ.

Internal 6dB Amplifier

Internal 75ΩDriver Circuit (2-system drive)

Power Save Circuit

Bipolar Technology

Package Outline

DIP14, DMP14

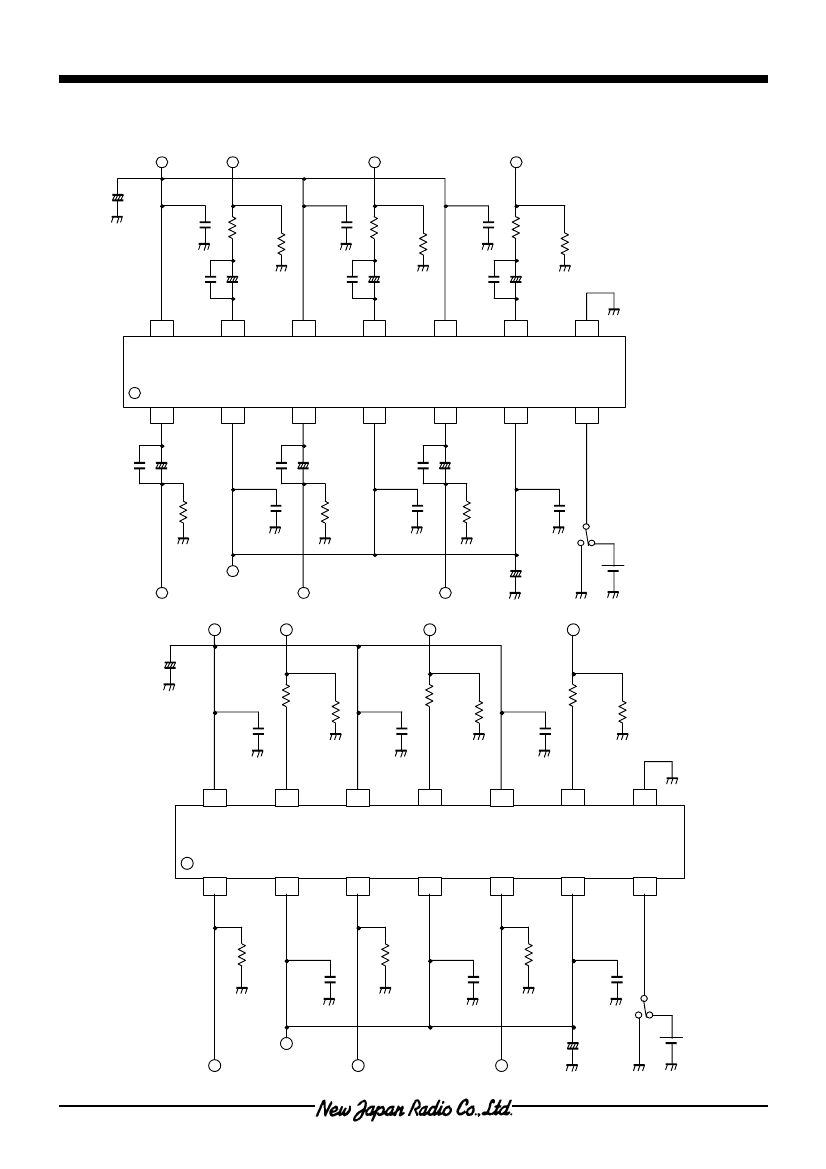

BLOCK DIAGRAM

NJM2581M

VIN1

6dB

AMP

Ω

Driver

BIAS

VEE1

VOUT1

VIN2

6dB

AMP

Ω

Driver

BIAS

VEE2

VOUT2

VIN3

6dB

AMP

Ω

Driver

BIAS

VEE3

VOUT3

PowerSave

REF

GND

Ver.5

-1-

NJM2581M Related Products

	NJM2581M	NJM2581D
Description	Video Amplifier, 3 Channel(s), 1 Func, Bipolar, PDSO14, DMP-14	Video Amplifier, 3 Channel(s), 1 Func, Bipolar, PDIP14, DIP-14
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	DIP
package instruction	DMP-14	DIP-14
Contacts	14	14
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Nominal bandwidth	50000 kHz	50000 kHz
Commercial integrated circuit types	VIDEO AMPLIFIER	VIDEO AMPLIFIER
Gain	6.4 dB	6.4 dB
JESD-30 code	R-PDSO-G14	R-PDIP-T14
JESD-609 code	e6	e6
length	10 mm	19 mm
Number of channels	3	3
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
power supply	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2 mm	4.7 mm
Maximum slew rate	33 mA	33 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	5 mm	7.62 mm
