Small Outline Optoisolators
Darlington Output
These devices consist of a gallium arsenide infrared emitting diode optically
coupled to a monolithic silicon photodarlington detector, in a surface mountable,
small outline, plastic package. They are ideally suited for high density
applications, and eliminate the need for through–the–board mounting.
•
Convenient Plastic SOIC–8 Surface Mountable Package Style
•
High Current Transfer Ratio (CTR) at Low LED Input Current, for Easier Logic
Interfacing
•
Standard SOIC–8 Footprint, with 0.050″ Lead Spacing
•
Available in Tape and Reel
•
Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
•
High Input–Output Isolation of 3000 Vac (rms) Guaranteed
•
UL Recognized
Ordering Information:
•
To obtain MOC223 in Tape and Reel, add R2 suffix to device numbers:
R2 = 2500 units on 13″ reel
•
To obtain MOC223 in quantities of 50 (shipped in sleeves) — No Suffix
Marking Information:
•
MOC223 = 223
Applications:
•
Low power Logic Circuits
•
Interfacing and coupling systems of different potentials and impedances
•
Telecommunications equipment
•
Portable electronics
MAXIMUM RATINGS
(TA = 25°C unless otherwise noted)
Rating
INPUT LED
Forward Current — Continuous
Forward Current — Peak (PW = 100
µs,
120 pps)
Reverse Voltage
LED Power Dissipation @ TA = 25°C
Derate above 25°C
OUTPUT DARLINGTON
Collector–Emitter Voltage
Collector–Base Voltage
Emitter–Collector Voltage
Collector Current — Continuous
Detector Power Dissipation @ TA = 25°C
Derate above 25°C
VCEO
VCBO
VECO
IC
PD
30
70
7.0
150
150
1.76
V
V
V
mA
mW
mW/°C
IF
IF(pk)
VR
PD
60
1.0
6.0
90
0.8
mA
A
V
mW
mW/°C
Symbol
Value
Unit
MOC223
SMALL OUTLINE
OPTOISOLATORS
DARLINGTON OUTPUT
File #E90700, Volume 2
SCHEMATIC
1
2
3
4
8
7
6
5
1.
2.
3.
4.
5.
6.
7.
8.
LED ANODE
LED CATHODE
NO CONNECTION
NO CONNECTION
EMITTER
COLLECTOR
BASE
NO CONNECTION
MOC223
MAXIMUM RATINGS — continued
(TA = 25°C unless otherwise noted)
Rating
TOTAL DEVICE
Input–Output Isolation Voltage(1,2)
(60 Hz, 1.0 sec. duration)
Total Device Power Dissipation @ TA = 25°C
Derate above 25°C
Ambient Operating Temperature Range(3)
Storage Temperature Range(3)
Lead Soldering Temperature
(1/16″ from case, 10 sec. duration)
VISO
PD
TA
Tstg
—
3000
250
2.94
–45 to +100
–45 to +125
260
Vac(rms)
mW
mW/°C
°C
°C
°C
Symbol
Value
Unit
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)(4)
Characteristic
INPUT LED
Forward Voltage (IF = 1.0 mA)
Reverse Leakage Current (VR = 6.0 V)
Capacitance
OUTPUT DARLINGTON
Collector–Emitter Dark Current
(VCE = 5.0 V, TA = 25°C)
ICEO1
ICEO2
V(BR)CEO
V(BR)ECO
CCE
IC (CTR)(5)
VCE(sat)
ton
toff
tr
tf
VISO
RISO
CISO
—
—
30
7.0
—
1.0
1.0
90
7.8
5.5
50
—
—
—
—
nA
µA
V
V
pF
VF
IR
C
—
—
—
1.05
0.1
18
1.3
100
—
V
Symbol
Min
Typ
(4)
Max
Unit
m
A
pF
(VCE = 5.0 V, TA = 100°C)
Collector–Emitter Breakdown Voltage (IC = 100
µA)
Emitter–Collector Breakdown Voltage (IE = 100
µA)
Collector–Emitter Capacitance (f = 1.0 MHz, VCE = 0)
COUPLED
Output Collector Current
(IF = 1.0 mA, VCE = 5.0 V)
Collector–Emitter Saturation Voltage (IC = 500
µA,
IF = 1.0 mA)
Turn–On Time (IF = 5.0 mA, VCC = 10 V, RL = 100
Ω)
Turn–Off Time (IF = 5.0 mA, VCC = 10 V, RL = 100
Ω)
Rise Time (IF = 5.0 mA, VCC = 10 V, RL = 100
Ω)
Fall Time (IF = 5.0 mA, VCC = 10 V, RL = 100
Ω)
Input–Output Isolation Voltage (f = 60 Hz, t = 1.0 sec.)(1,2)
Isolation Resistance (VI–O = 500 V)(2)
Isolation Capacitance (VI–O = 0, f = 1.0 MHz)(2)
1.
2.
3.
4.
5.
5.0 (500)
—
—
—
—
—
3000
1011
—
10 (1000)
—
3.5
95
1.0
2.0
—
—
0.2
—
1.0
—
—
—
—
—
—
—
mA (%)
V
µs
µs
µs
µs
Vac(rms)
Ω
pF
Input–Output Isolation Voltage, VISO, is an internal device dielectric breakdown rating.
For this test, pins 1 and 2 are common, and pins 5, 6 and 7 are common.
Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.
Always design to the specified minimum/maximum electrical limits (where applicable).
Current Transfer Ratio (CTR) = IC/IF x 100%.
MOC223
TYPICAL CHARACTERISTICS
2
VF , FORWARD VOLTAGE (VOLTS)
PULSE ONLY
PULSE OR DC
IC, OUTPUT COLLECTOR CURRENT (NORMALIZED)
100
NORMALIZED TO:
IF = 1 mA
10
1.8
1.6
1.4
TA = – 45°C
1.2
25°C
100°C
1
10
100
IF, LED FORWARD CURRENT (mA)
1000
1
1
0.1
0.1
1
10
IF, LED INPUT CURRENT (mA)
100

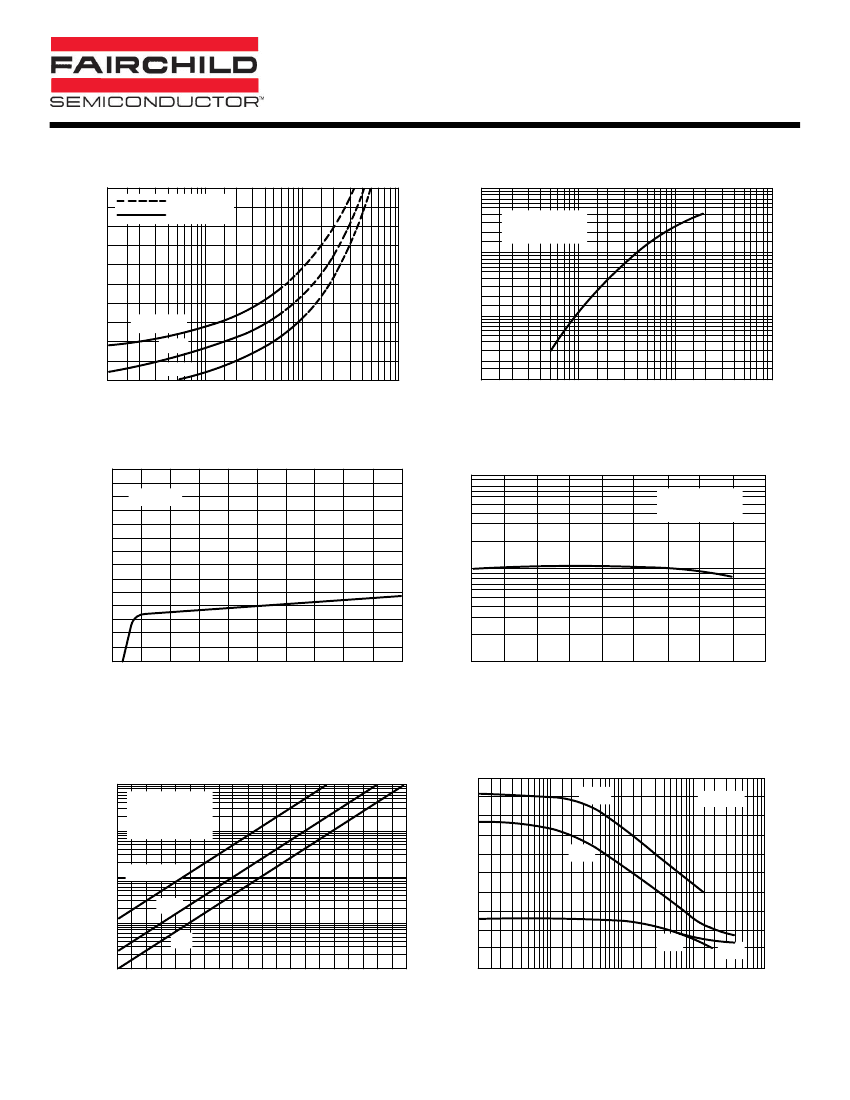

Figure 1. LED Forward Voltage versus Forward Current
I C, OUTPUT COLLECTOR CURRENT (NORMALIZED)
Figure 2. Output Current versus Input Current
14
I C, OUTPUT COLLECTOR CURRENT (mA)
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10
IF = 1 mA
10
NORMALIZED TO:
TA = 25°C
1
0.1
–60
–40
–20
0
20
40
60
80
100
120
TA, AMBIENT TEMPERATURE (°C)
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
Figure 3. Output Current versus
Collector–Emitter Voltage
Figure 4. Output Current versus
Ambient Temperature
ICEO, COLLECTOR–EMITTER DARK CURRENT
(NORMALIZED)
1000
NORMALIZED TO:
VCE = 5 V
TA = 25°C
20
18
16
C, CAPACITANCE (pF)
14
12
10
8
6
4
2
0
0.01
0.1
1
V, VOLTAGE (VOLTS)
CEB
10
CCB
CLED
f = 1 MHz
100
10
VCE = 30 V
10 V
1
5V
0.1
0
20
40
60
80
100
CCE
100
TA, AMBIENT TEMPERATURE (°C)
Figure 5. Dark Current versus Ambient Temperature
Figure 6. Capacitance versus Voltage
MOC223
PACKAGE DIMENSIONS
–A–
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
8
5
K
1
4
B
G
D
8 PL
0.13 (0.005)
M
T A
M
DIM
A
B
C
D
G
H
J
K
INCHES
MIN
MAX
0.182
0.202
0.144
0.164
0.123
0.143
0.011
0.021
0.050 BSC
0.003
0.008
0.006
0.010
0.224
0.244
STYLE 1:
PIN 1.
2.
3.
4.
5.
6.
7.
8.
MILLIMETERS
MIN
MAX
4.63
5.13
3.66
4.16
3.13
3.63
0.28
0.53
1.27 BSC
0.08
0.20
0.16
0.25
5.69
6.19
-T-
SEATING
PLANE
C
0.038 (0.0015)
H
J
ANODE
CATHODE
NC
NC
EMITTER
COLLECTOR
BASE
NC
