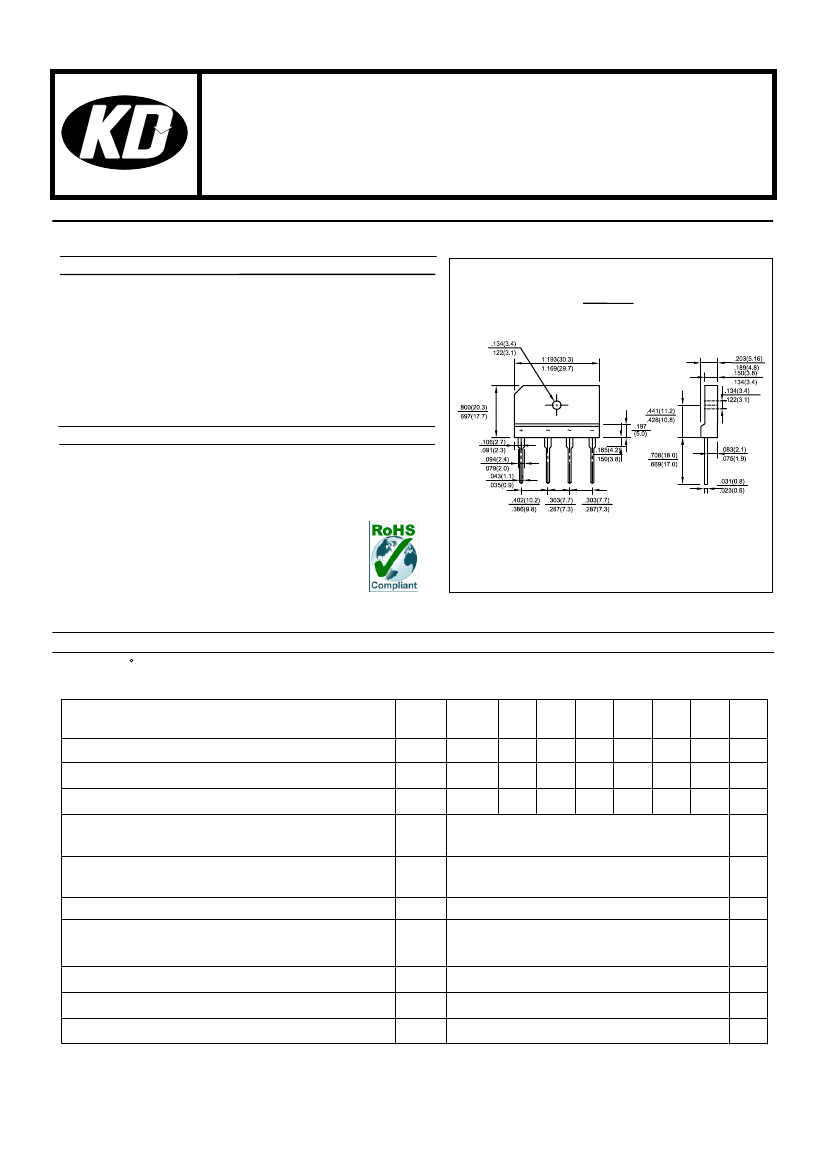

GBJ6005 THRU GBJ610
Reverse Voltage - 50 to 1000 Volts
GLASS PASSIVATED BRIDGE RECTIFIER
Forward Current - 6.0 Ampere
FEATURES
Glass passivated chip junction
●
Reliable low cost construction utilizing molded
plastic technique
●
Ideal for printed circuit board
●
Low reverse leakage current
●
Low forward voltage drop
●
High surge current capabiliy
●
GBJ
MECHANICAL DATA
●
●
Case:Molded plastic, GBJ
Terminals
:
Terminals: Leads solderable per MIL-STD-202
method 208 guaranteed
Epoxy: UL 94V-0 rate flame retardant
Mounting Position: Any
Dimensions in inches and (millimeters)
●
●
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current with
Heatsink at T
C
= 100
O
C
Peak Forward Surge Current, 8.3 ms Single Half-Sine
-Wave superimposed on rated load (JEDEC Method)
Maximum Forward Voltage at 3.0 A DC and 25
O
C
Maximum Reverse Current at T
A
= 25
O
C
at Rated DC Blocking Voltage T
A
= 125
O
C
Typical Junction Capacitance
Typical Thermal Resistance
2)
Operating and Storage Temperature Range
1)
2)
1)
Symbols
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
C
J
R
θ
JC
T
J
,T
S
GBJ
6005
50
35
50
GBJ
601
100
70
100
GBJ
602
200
140
200
GBJ
604
400
280
400
6
170
1.1
5.0
500
55
1.8
GBJ
606
600
420
600
GBJ
608
800
560
800
GBJ
610
1000
700
1000
Units
V
V
V
A
A
V
µA
pF
O
C/W
O
-55 to +150
C
Measured at 1 MHz and applied reverse voltage of 4 VDC.
Thermal resistance from junction to case with device mounted on 300 mm X 300 mm X 1.6 mm Cu plate
heatsink.
GBJ6005 THRU GBJ610

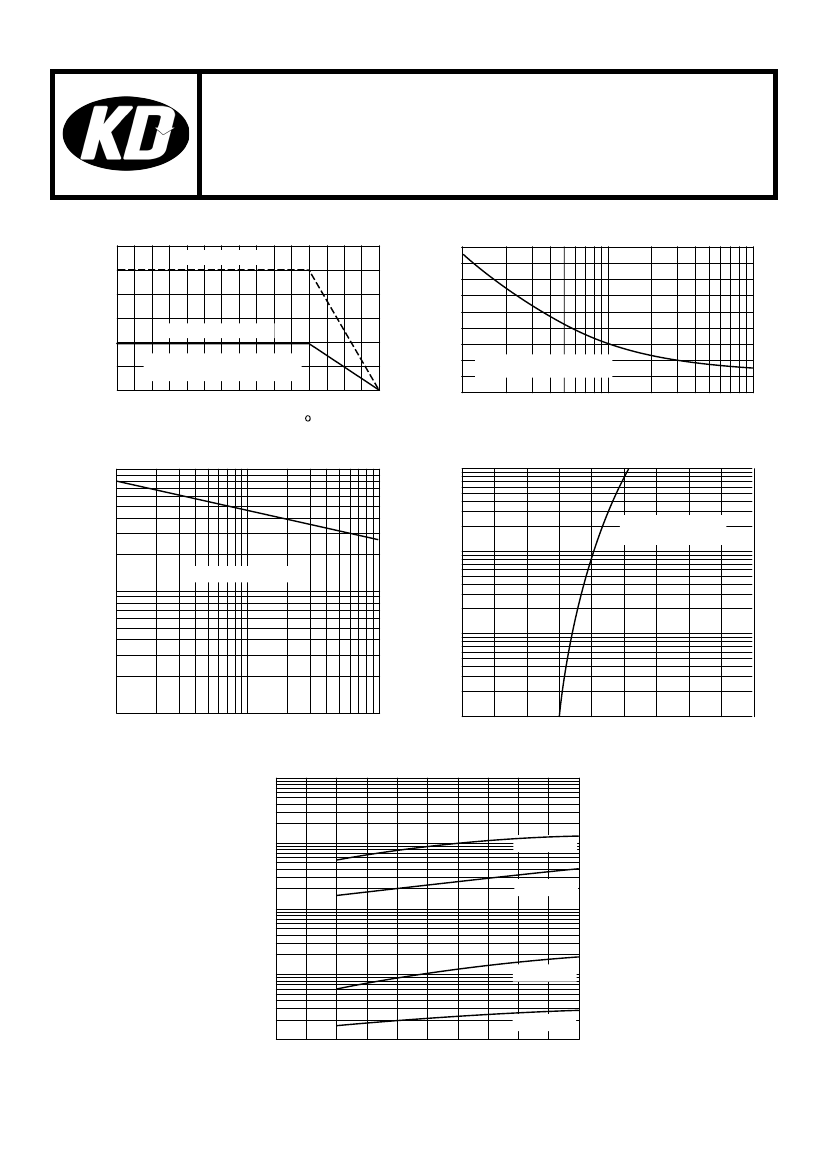

RATINGS AND CHARACTERISTIC CURVES
Fig. 1 - Forward Current Derating Curve
6.0
5.0
4.0
3.0
2.0
0.0
0
Without Heatsink
Single Phase Half Wave 60Hz
Resistive or Inductive Load
20
40
60
80
100
120
140
With Heatsink
Fig. 2 - Maximum Non-Repetitive Surge Current
Peak Forward Surge Current,
Amperes
180
160
140
120
100
80
60
40
20
0
0
Single Half-Sine-Wave
(JEDEC Method)
2
5
10
20
50
100
Average Forward Current
Amperes
Case Temperature, C
Number of Cycles at 60 Hz
Fig. 3 - Typical Junction Capacitance
100
10
Fig. 4 - Typical Forward Charactistics
Instantaneous Forward Current, (A)
Capacitance, (pF)
1.0
T
J
= 25 C
Pulse Width: 300 us
o
T
J
= 25
o
C, f = MHz
10
0.1
1.0
1.0
Reverse Voltage, Volts
1000
4.0
10.0
100
0.01
0
Instantaneous Forward Voltage, Volts
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
Fig. 5 - Typical Reverse Characteristics
Instantaneous Reverse Current, (uA)
100
T
J
= 125 C
o
T
J
= 100 C
10
o
1.0
T
J
= 50 C
o
T
J
= 25 C
0.1
0
20
40
60
80
100
o
Percent of Rate Peak Reverse Voltage, %
