KBPC6005 THRU KBPC610
Reverse Voltage - 50 to 1000 Volts
SINGLE PHASE SILICON BRIDGE RECTIFIER
Forward Current - 6.0 Ampere
FEATURES
●
●
KBPC6
.276(7.0)
.236(6.0)
Diffused Junction
Surge overload rating: 125A peak
.042(1.07)
DIA.
.038(0.97)
.750
(19.0)
MIN
MECHANICAL DATA
Case:
UL-94 Class V-0 recognized Flame Retardant Epoxy
●
Terminals
:
Plated leads solderable per
MIL-STD 202, method 208
●
Mounting Position: Any
●
Marking: Type Number
●
.445(11.3)
.405(10.3)
.620(15.7)
.580(14.7)
HOLE FOR
NO.6 SCREW
.620(15.7)
.580(14.7)
.445(11.3)
.405(10.3)
Polarity shown on side of case, Positive lead by beveled corner.
Dim ensions in inches and (m ilim eters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (Note 1) @T
C
= 50°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)
Forward Voltage per leg
Peak Reverse Current
At Rated DC Blocking Voltage
I
2
t Rating for Fusing (t<8.3ms) (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance per leg (Note 1)
Operating and Storage Temperature Range
R
@I
F
= 3.0A
@T
A
= 25°C
@T
A
= 125°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
R
I
2
t
C
j
JC
KBPC KBPC KBPC KBPC KBPC KBPC KBPC
6005
601
602
604
606
608
610
50
35
100
70
200
140
400
280
6.0
125
1.1
5.0
500
64
80
9.5
-65 to +125
600
420
800
560
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
T
j
, T
STG
Note: 1. Mounted on metal chassis.
2. Non-repetitive, for t > 1ms and < 8.3ms.
3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
KBPC6005 THRU KBPC610

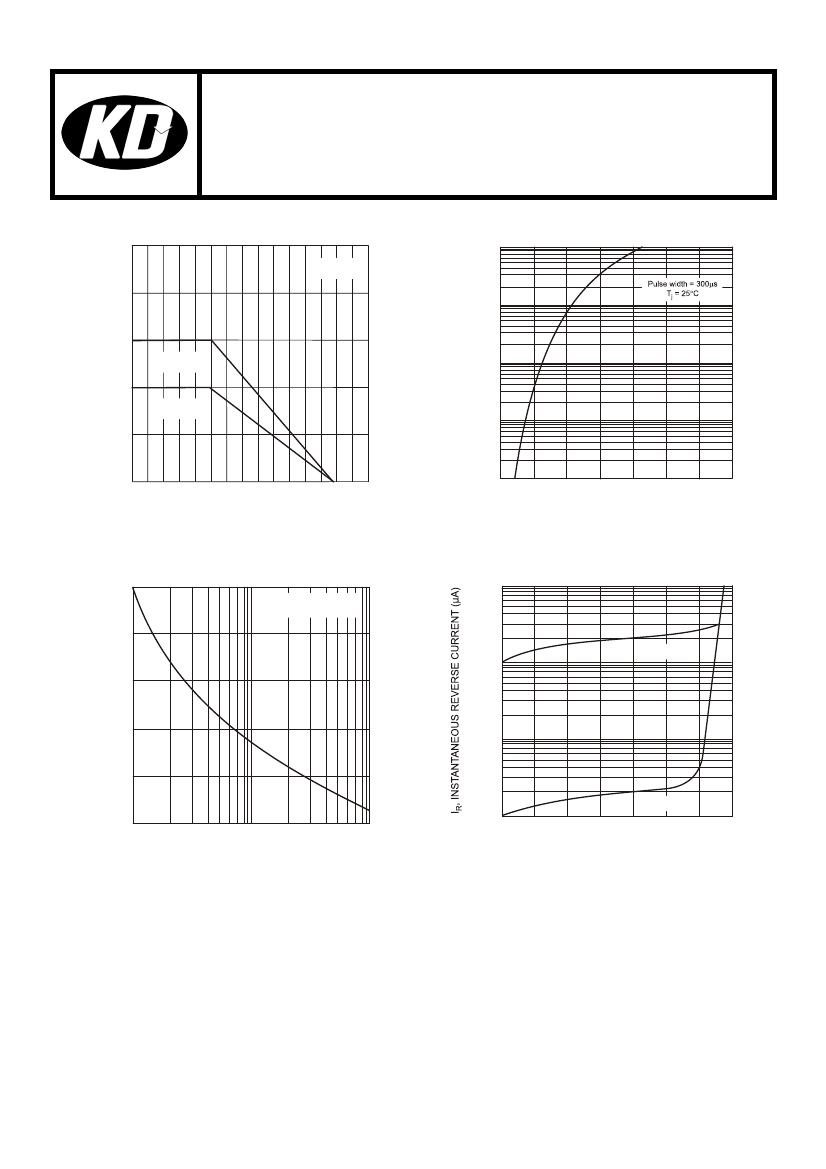

RATINGS AND CHARACTERISTIC CURVES
10
Resistive or
Inductive Load
I
O
, AVERAGE RECTIFIED OUTPUT CURRENT (A)
8
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
10
6
Mounted on
Metal Chassis
1.0
4
Mounted on
PC Board
2
0.1
0
0
50
100
150
T
C
, CASE TEMPERATURE (°C)
Fig. 1 Forward Current Derating Curve
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
125
10
8.3ms Single half-sine-wave
T
J
= 125°C
100
1.0
T
j
= 100°C
75
50
0.1
25
0.01
T
j
= 25°C
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
