BAS40-05: DescriptionRectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SMD, 3 PIN; CategoryDiscrete semiconductor diode; File Size86KB，1 Pages; ManufacturerRectron; Environmental Compliance

Download Datasheet Parametric Compare View All

BAS40-05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS40-05	-	-	View	Buy Now

BAS40-05 Overview

Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SMD, 3 PIN

BAS40-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron
package instruction	SMD, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

BAS40

BAS40-04

BAS40-05

BAS40-06

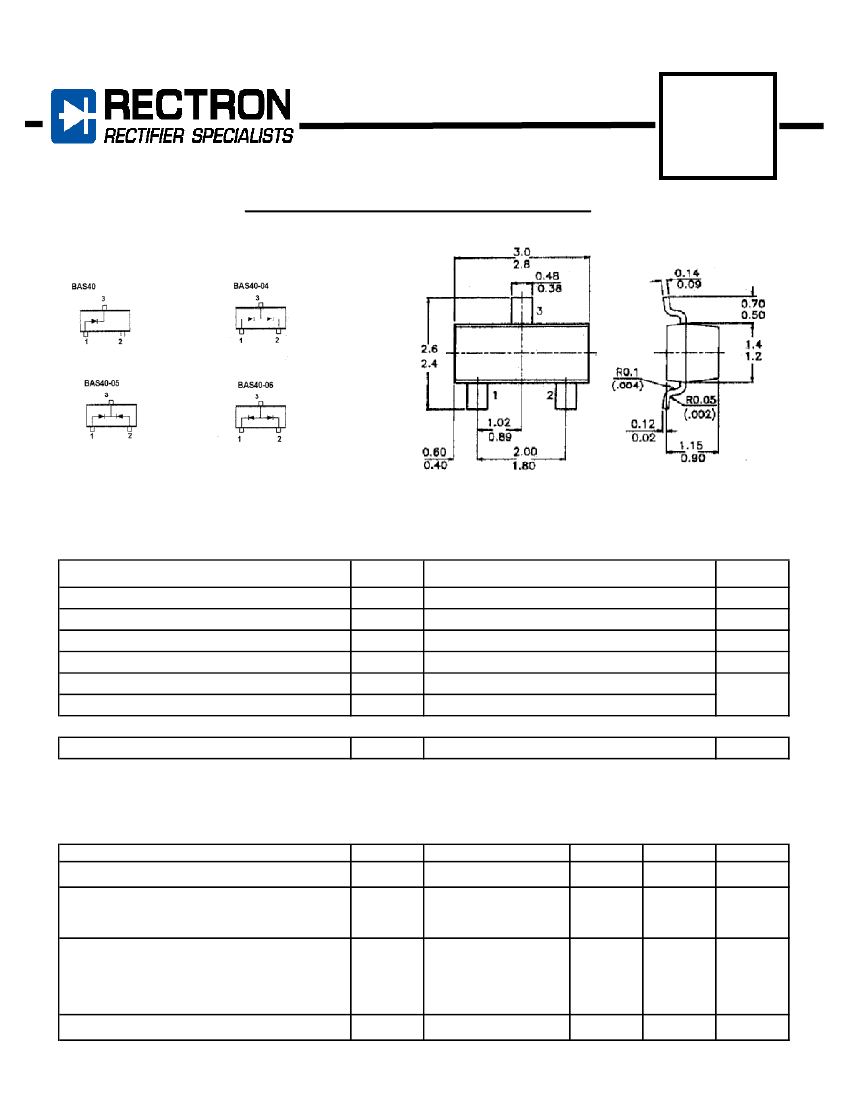

SILICON PLANAR SCHOTTKY DIODE

Pin Configuration:

1. ANODE

2. NC

3. CATHODE

Pin Configuration:

1. ANODE

2. CATHODE

3. ANODE/CATHODE

Pin Configuration:

1. ANODE

2. ANODE

3. CATHODE

Pin Configuration:

1. CATHODE

2. CATHODE

3. ANODE

SOT-23 SMD Package

Unit: inch (mm)

Absolute Maximum Ratings

(per diode)

DESCRIPTION

Reverse Voltage

Forward Current

Surge Forward Current t=10ms

Power Dissipation T

a

= 25 C

Storage Temperature Range

Junction Temperature

Thermal Resistance

From junction to ambient

o

General Purpose Schottky Diode for High Speed switching

SYMBOL

V

R

I

F

I

FSM

P

D

Tstg

Tj

R

th(j-a)*

VALUE

40

120

200

250

- 55 to +150

150

430

UNITS

V

mA

mW

o

C

K/W

*Mounted on a ceramic substrate of 10mm x 8mm x 0.6mm

Electrical Characteristics

(Ta=25

o

C unless otherwise specified) (per diode)

DESCRIPTION

Reverse Braekdown Voltage

Reverse Current

SYMBOL TEST CONDITION

I

R

= 10uA

V

R

I

R

V

R

= 30V

V

R

= 40V

I

F

= 1mA

MIN

40

MAX

1

10

0.38

0.50

1.00

5.00

UNITS

V

uA

Forward Voltage

V

F

Diode Capacitance

www.rectron.com

I

F

= 10mA

I

F

= 40mA

V

C

T

V

R

= 40V

pF

1 of 1

BAS40-05 Related Products

	BAS40-05	BAS40-04
Description	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SMD, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SMD, 3 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Rectron	Rectron
package instruction	SMD, 3 PIN	R-PDSO-G3
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3
Number of components	2	2
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.12 A	0.12 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265	265
Maximum power dissipation	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
