RMPG06A THRU RMPG06J
Vishay Semiconductors
formerly General Semiconductor
Miniature Glass Passivated
Fast Switching Plastic Rectifier
Case Style MPG06
Reverse Voltage
50 to 600V
Forward Current
1.0A
Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Low forward voltage drops, high current capability
• Glass passivated chip junction
• High surge capability
• Typical I
R
less than 0.1µA
• High temperature soldering guaranteed:
250°C/10 seconds 0.375” (9.5mm) lead length, 5 lbs.
(2.3kg) tension
0.100 (2.54)
0.090 (2.29)
DIA
1.0 (25.4)
MIN.
0.125 (3.18)
0.115 (2.92)
Mechanical Data
Case:
Molded plastic over passivated chip
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.0064 oz., 0.181 g
Packaging codes/options:
1/5K per Bulk Box
3/3K per Ammo Box (26mm Tape)
4/5.5K per 13" Reel (52mm Tape)
23/3K per Ammo Box (52mm Tape)
50/2.5K per Radial-Tape Ammo Box
Ratings at 25°C ambient temperature unless otherwise specified.
1.0 (25.4)
MIN.
0.025 (0.635)
0.023 (0.584)
DIA.
Dimensions in inches and (millimeters)
Maximum Ratings & Thermal Characteristics
Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current,
0.375" (9.5mm) lead length at T
A
=25°C
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
Typical thermal resistance
(1)
RMPG
06A
50
35
50
RMPG
06B
100
70
70
RMPG
06D
200
140
200
1.0
40
67
30
-55 to +150
RMPG
06G
400
280
400
RMPG
06J
600
420
600
Unit
V
V
V
A
A
°C/W
°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
R
ΘJA
R
ΘJL
T
J
, T
STG
Operating junction and storage temperature range
Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Symbol
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current
at rated DC blocking voltage
Typical reverse recovery time at
I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
T
A
=25°C
T
A
=125°C
V
F
I
R
C
J
t
rr
RMPG
06A
RMPG
06B
RMPG
06D
1.3
5.0
50
6.6
150
RMPG
06G
RMPG
06J
Unit
V
µA
pF
Typical junction capacitance at 4.0V, 1MHz
200
ns
Notes:
(1) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length, P.C.B. mounted with 0.22 x 0.22” (5.5 x 5.5mm) copper pads
Document Number 88706
08-Feb-02
www.vishay.com
1
RMPG06A THRU RMPG06J
Vishay Semiconductors
formerly General Semiconductor

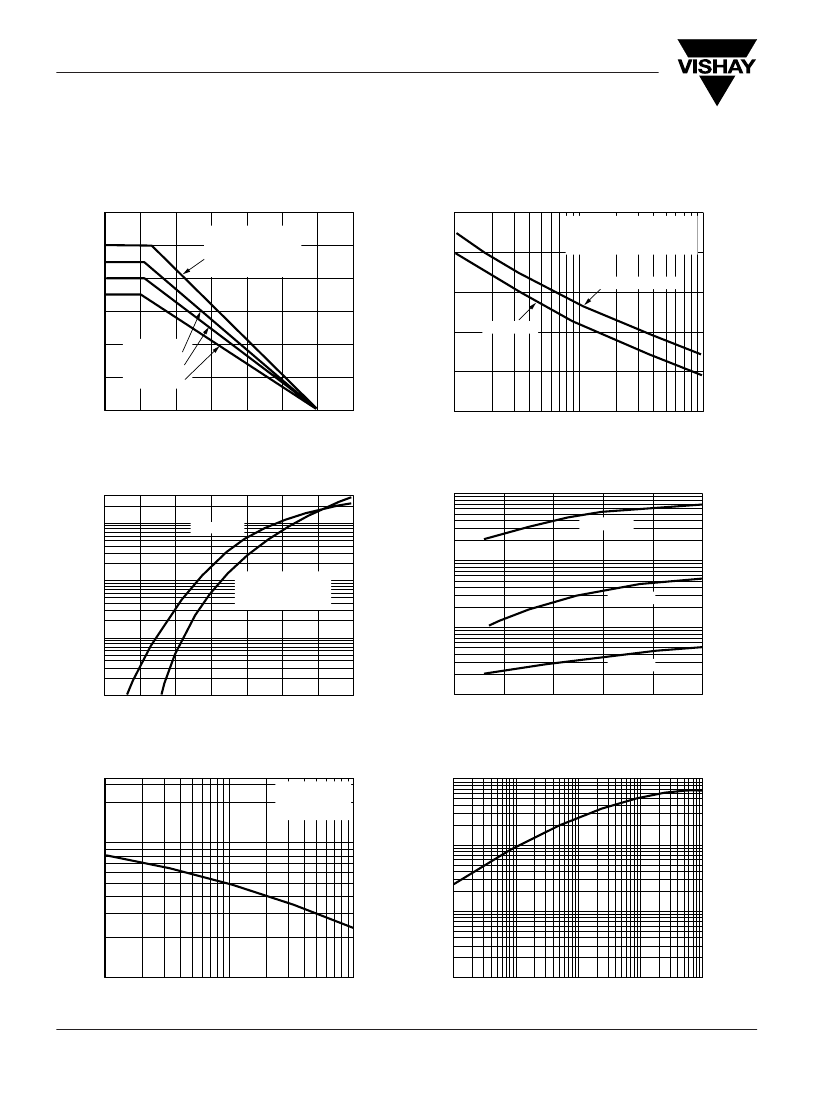

Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)
Fig. 1 – Forward Current
Derating Curve
1.2
50
Fig. 2 – Maximum Peak Forward
Surge Current
Peak Forward Surge Current (A)
T
J
= T
J
max.
8.3ms Single Half Sine-Wave
(JEDEC Method)
Average Forward Rectified Current (A)
1.0
0.8
0.6
0.4
0.2
0
0
25
50
60 H
Z
Resistive or
Inductive Load
0.375" (9.5mm) Lead
Length
40
30
No Load Condition
20
Rated Load
Capacitance
Loads 5.0
Ipk/I
AV
= 10
20
10
0
75
100
125
150
175
1
10
100
Ambient Temperature (°C)
Number of Cycles at 60 H
Z
Fig. 3 – Typical Instantaneous
Forward Characteristics
30
10
10
Fig. 4 – Typical Reverse
Characteristics
Instantaneous Reverse Current (µA)
T
J
= 125°C
Instantaneous Forward Current (A)
T
J
= 125°C
1
1
T
J
= 25°C
Pulse Width = 300µs
1% Duty Cycle
T
J
= 75°C
0.1
0.1
T
J
= 25°C
0.01
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
0
20
40
60
80
100
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig. 5 – Typical Junction
Capacitance Per Leg
30
100
Fig. 6 – Typical Transient
Thermal Impedance
Transient Thermal Impedance (°CW)
Junction Capacitance (pF)
T
J
= 25°C
f = 1.0MH
Z
Vsig = 50MVp-p
10
10
1
1
1
10
100
0.1
0.01
0.1
1
10
100
Reverse Voltage (V)
www.vishay.com
2
t, Pulse Duration (sec.)
Document Number 88706
08-Feb-02
