BAV99WE6433 datasheet, PDF - EEWORLD Datasheet

BAV99WE6433: DescriptionRectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size97KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

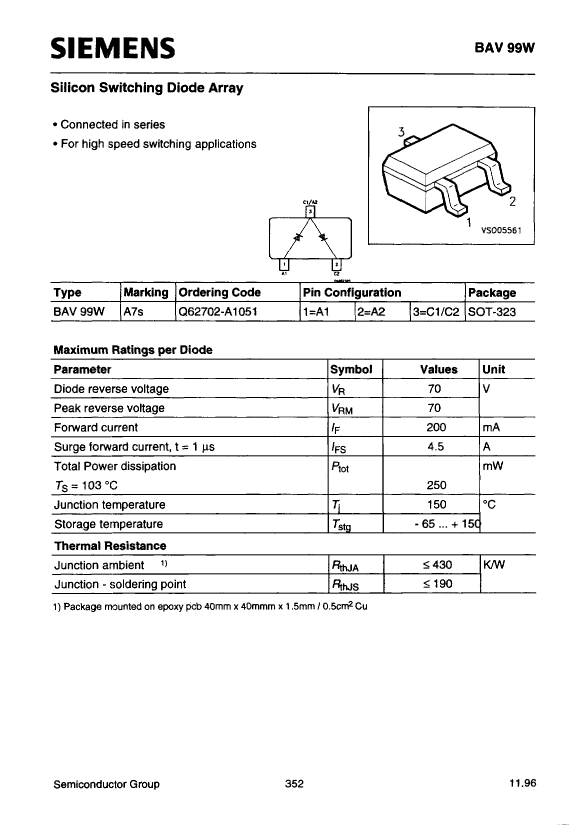

BAV99WE6433 Overview

Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

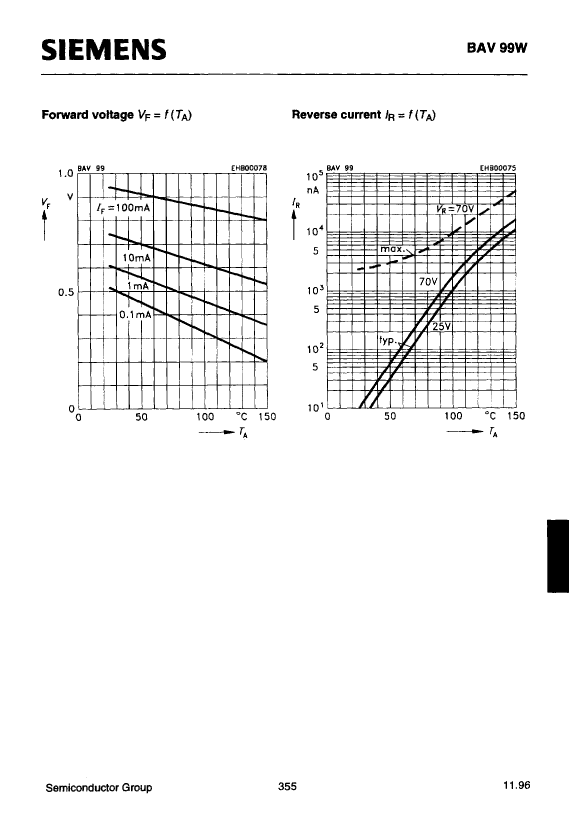

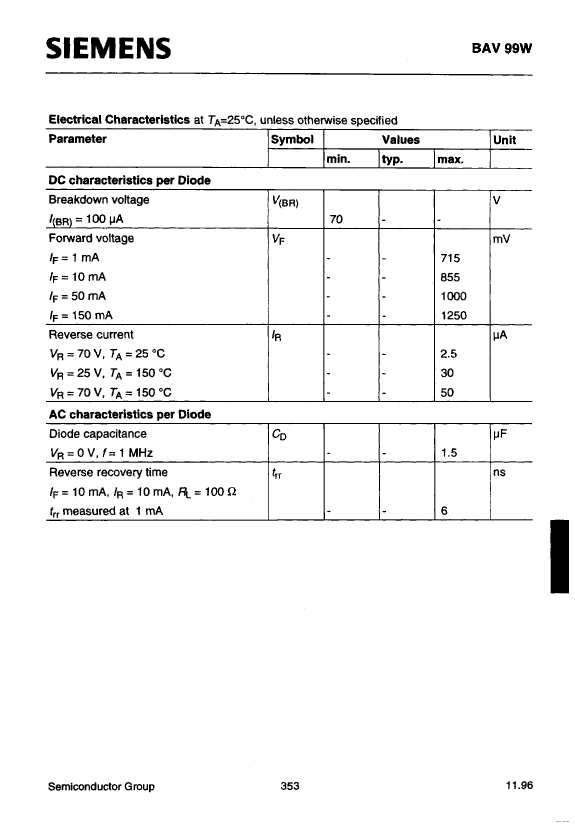

Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G3

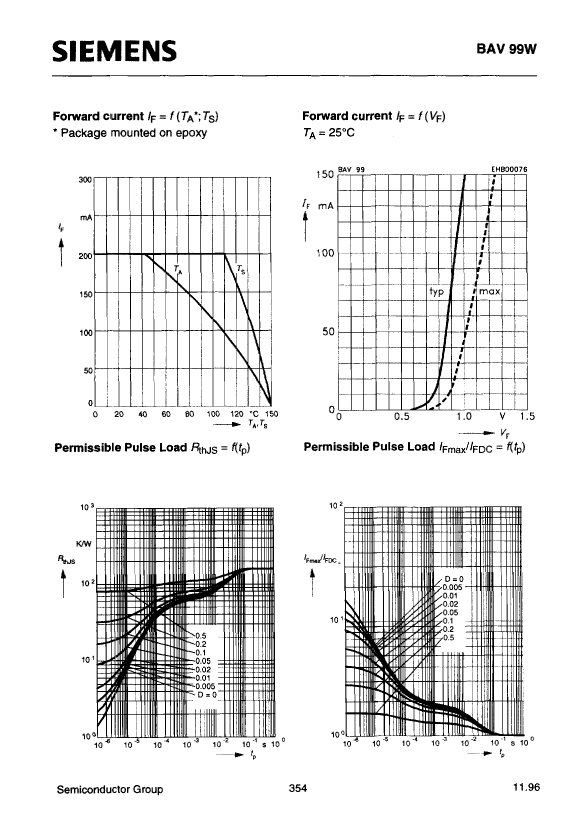

Maximum non-repetitive peak forward current	4.5 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	70 V
Maximum reverse current	2.5 µA
Maximum reverse recovery time	0.006 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

	BAV99WE6433	BAV99WE6327
Description	Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon	Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon
Maker	SIEMENS	SIEMENS
package instruction	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	4.5 A	4.5 A
Number of components	2	2
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	70 V	70 V
Maximum reverse current	2.5 µA	2.5 µA
Maximum reverse recovery time	0.006 µs	0.006 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
