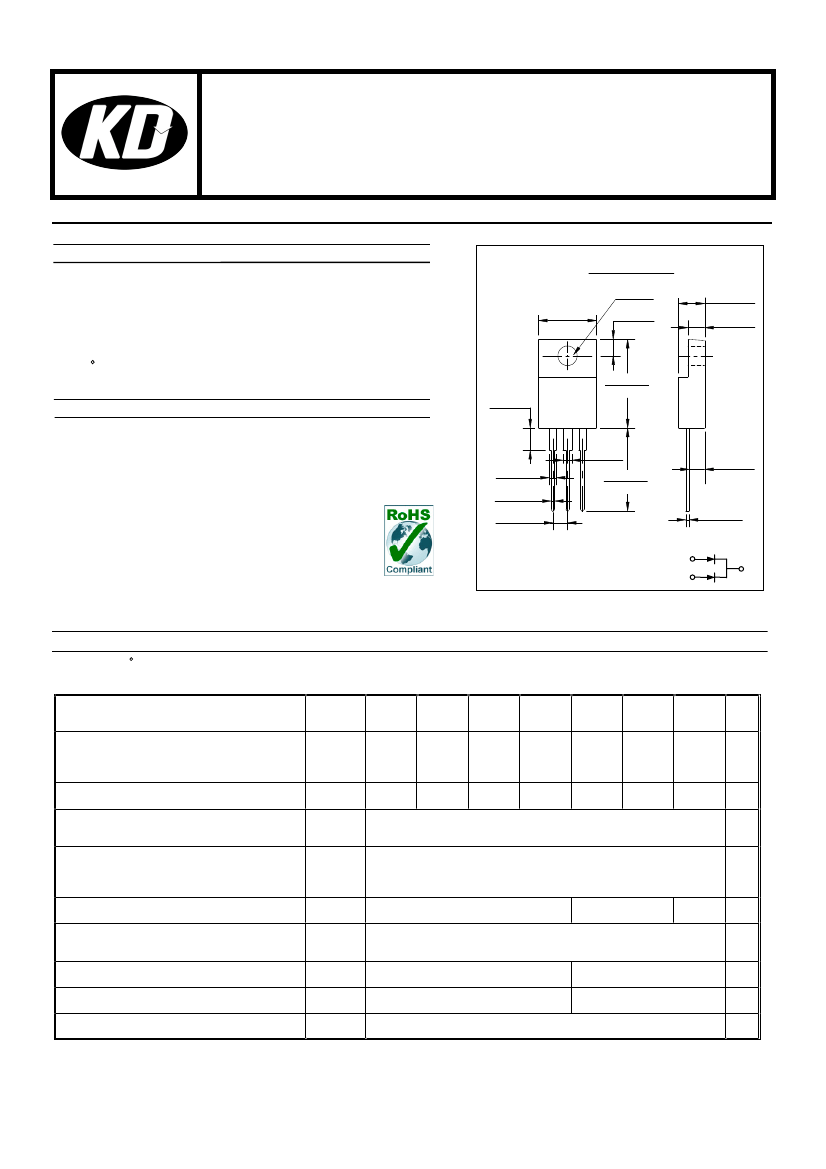

MURF1005CT THRU MURF1060CT
Reverse Voltage - 50 to 600 Volts
SUPER FAST RECOVERY SILICON RECTIFIER
Forward Current - 10.0 Ampere
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
●
Super fast switching for high efficiency
●
Low reverse leakage
●
High forward surge current capability
●
High temperature soldering guaranteed:
250 C/10 seconds,0.25
”
(6.35mm) from case
●
ITO-220AB
.138(3.5)
.122(3.1)
.118(3.0)
.102(2.6)
.189(4.8)
.173(4.4)
.118(3.0)
.106(2.7)
.406(10.3)
.386(9.8)
MECHANICAL DATA
●
Case: JEDEC ITO-220AB molded plastic body
●
Terminals: Plated leads, solderable per MIL-STD-750,
●
High temperature soldering guaranteed:
o
.157(4.0)
.142(3.6)
.610(15.5)
.571(14.5)
Method 2026
250 C/10 seconds, 0.25" (6.35mm) from case
●
Polarity: As marked
●
Mounting Position: Any
●
Mounting Torque: 10 in-lbs maximum
●
Weight: 0.08 ounce, 2.24 grams
.059(1.5)
.043(1.1)
.030(0.76)
.020(0.51)
.112(2.84)
.088(2.24)
.071(1.8)
.055(1.4)
.571(14.5)
.531(13.5)
.114(2.9)
.098(2.5)
.030(0.76)
.020(0.51)
PIN 1 -
PIN 3 -
+
PIN 2
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@T
C
= 100°C
Non-Repetitive Peak Forward Surge
Current 8.3ms Single half sine-wave
superimposed on rated load (JEDEC Method)
Forward Voltage
@I
F
= 5.0A
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
MURF
MURF
MURF
MURF
1005CT 1010CT 1015CT 1020CT
MURF
1030CT
MURF
MURF
1040CT 1060CT
Unit
50
35
100
70
150
105
200
140
10
300
210
400
280
600
420
V
V
A
I
FSM
V
FM
I
RM
t
rr
C
j
T
j
, T
STG
35
80
0.95
150
1.3
10
400
50
50
-65 to +150
1.7
A
V
µA
nS
pF
°C
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage @T
A
= 125°C
Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
Note: 1. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A.

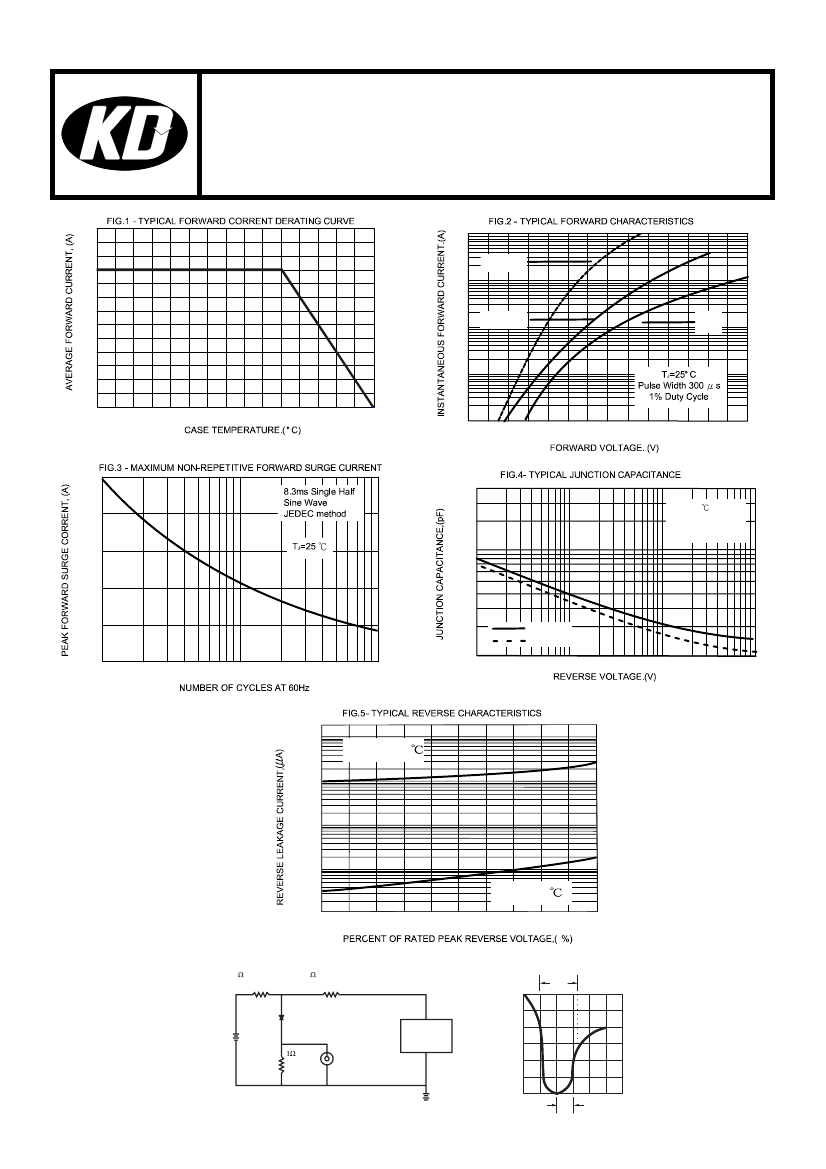

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
