SB220 THRU SB2100
SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 100 Volts
Forward Current - 2.0 Ampere
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
●
Metal silicon junction,majority carrier conduction
●
Low power loss,high efficiency
●
High forward surge current capability
●
High temperature soldering guaranteed:
250 C/10 seconds,0.375
”
(9.5mm) lead length,
5 lbs. (2.3kg) tension
●
DO-15
1.0 (25.4)
MIN.
0.140 (3.6)
0.104(2.6)
DIA.
0.300(7.6)
0.230(5.8)
MECHANICAL DATA
Case:
JEDEC DO-15 molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:0.014
ounce, 0.40 grams
1.0 (25.4)
MIN.
0.034 (0.90)
0.028 (0.70)
DIA.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Characteristic
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375”(9.5mm) lead length(see fig.1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 2.0A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=100 C
Typical junction capacitance (NOTE 1)
Typical thermal resistance (NOTE 2)
Operating junction temperature range
Storage temperature range
SYMBOLS
SB SB
220 230
SB
240
SB SB
250 260
SB
270
SB
280
SB
290
SB
2100
UNITS
V
V
V
A
A
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
C
J
R
θJA
T
J
T
STG
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
2.0
60.0
70
49
70
80
56
80
90
63
90
100
70
100
0.55
0.70
0.5
10.0
0.85
V
mA
220
-65 to +125
80
50.0
-65 to +150
-65 to +150
pF
C/W
C
C
Note:1.Measured
at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
SB220 THRU SB2100

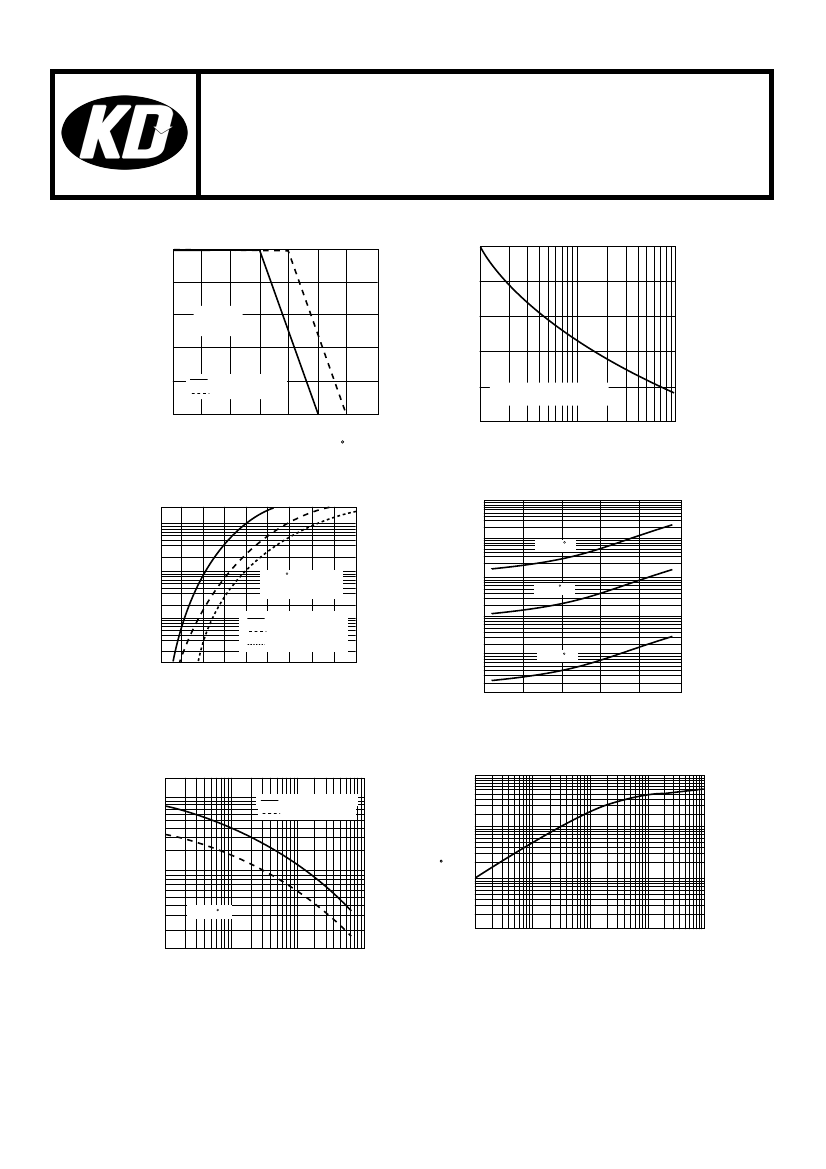

RATINGS AND CHARACTERISTIC CURVES
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG. 1- FORWARD CURRENT DERATING CURVE
£PEAK FORWARD SURGE CURRENT,
AMPERES
2.0
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
60
1.6
48
1.2
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
36
0.8
24
0.4
SB220-SB240
SB250-SB2100
0
25
50
75
100
125
150
175
12
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0
0
1
10
100
AMBIENT TEMPERATURE, C
NUMBER OF CYCLES AT 60 Hz
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
20
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
1,000
INSTANTANEOUS REVERSE CURRENT,
MILLAMPERES
INSTANTANEOUS FORWARD
CURRENT,AMPERES
10
100
TJ=100 C
1
T
J
=25 C
PULSE WIDTH=300
ms
1%DUTY CYCLE
10
TJ=75 C
0.1
SB220-SB240
SB250-SB260
SB270-SB2100
0.2
0.4
0.6
0.8
1.0
1.1
1
0.01
0.1
TJ=25 C
0.01
INSTANTANEOUS FORWARD VOLEAGE,
VOLTS
0
20
40
60
80
100
PERCENT OF PEAK REVERSE VOLTAGE,%
FIG. 5-TYPICAL JUNCTION CAPACITANCE
TRANSIENT THERMAL IMPEDANCE,
C/W
2000
1000
100
FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE
JUNCTION CAPACITANCE, pF
SB220-SB240
SB250-SB2100
10
100
1
T
J
=25 C
0.1
0.01
0.1
1
10
100
10
0.1
1.0
10
100
REVERSE VOLTAGE,VOLTS
t,PULSE DURATION,sec.
