DKFP-E22E-043L: Description2 ELEMENT, 3300 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size564KB，6 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DKFP-E22E-043L Overview

2 ELEMENT, 3300 uH, GENERAL PURPOSE INDUCTOR

DKFP-E22E-043L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.062 Ω
Nominal inductance(L)	3300 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	4 A
self resonant frequency	0.6 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	50%
Base Number Matches	1

Preview

Download Datasheet

View All

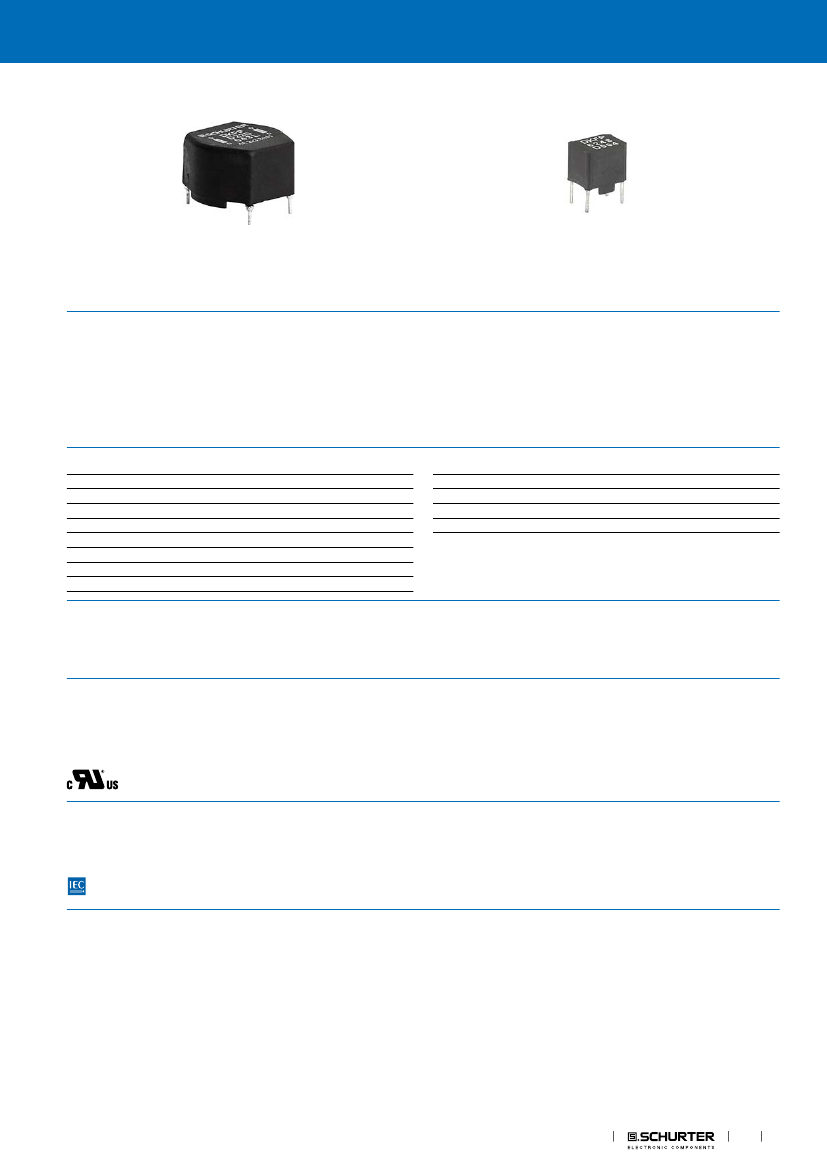

Suppression Chokes

https://www.schurter.com /PG81_82

DKFP

Magnetically Compensated Choke, compact

Approvals and Compliances

Description

Current compensated choke

THT-terminals

Multiple PCB-mounting options

High inductance and compact dimensions

Multiple pin configurations

Applications

Attenuation of common mode interferences

Designed for 230/400 VAC applications

Chopper amplifiers

DC drives and stepper motor controls

Switching power supplies

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product, SPICE Library

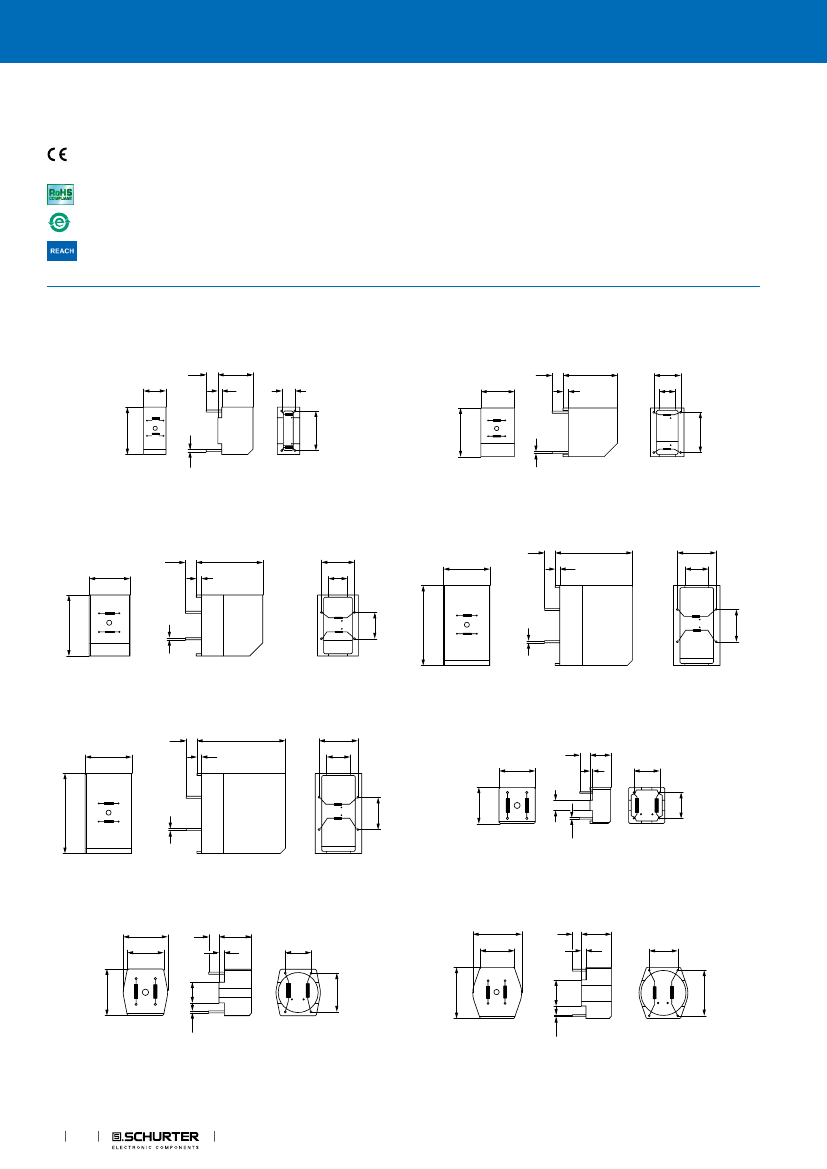

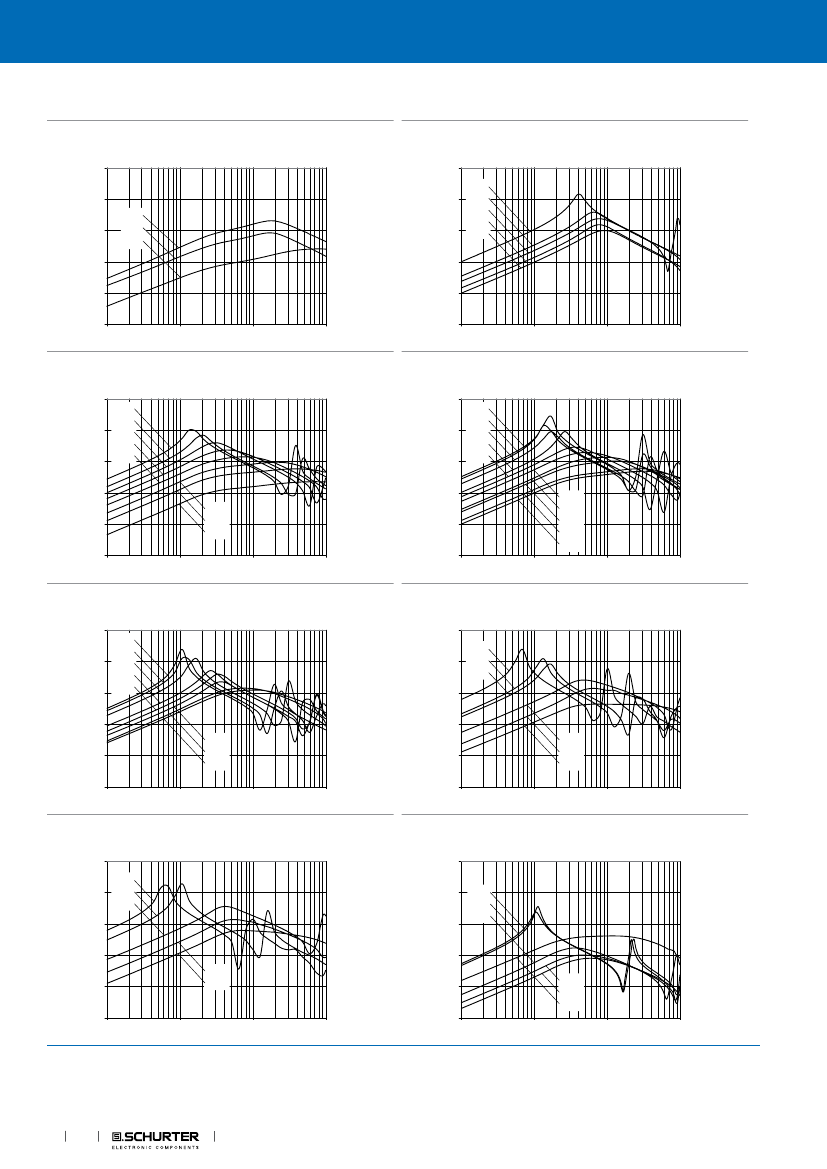

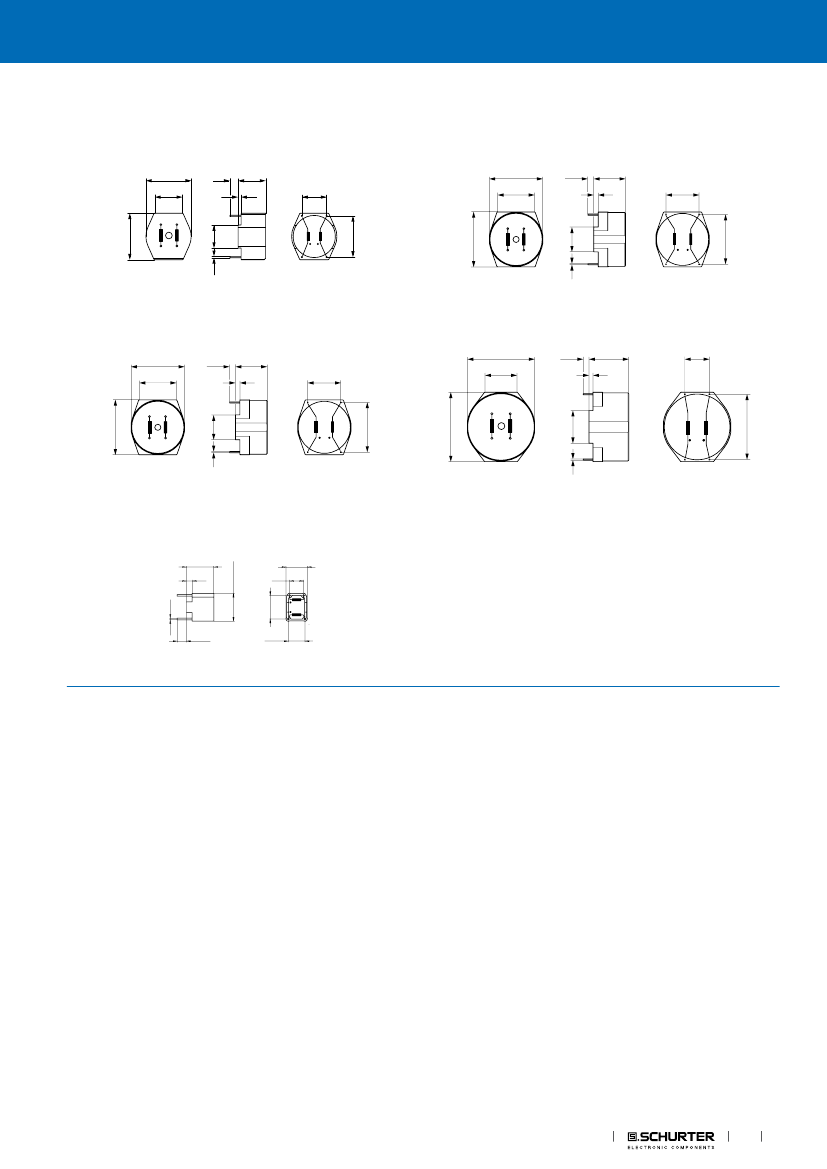

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 250 VAC

0.3 - 10 A @ Ta 40 °C

0.5 - 100 mH, Tol. -30% +50%

DC - 1 kHz

THT

1 - 55 g

UL 94V-0

Test Voltage

Isolation Voltage

Climatic Category

Allowable Operation Temp.

1.5 kV, 50 Hz, 1 min, winding to winding

4 kV eff., winding to ambient

40/125/56 acc. to IEC 60068-1

-40 °C to 125 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DKFP

Approval Logo

Certificates

UL Approvals

Certification Body

Description

UL File Number:

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

EMC Products

DKFP-E22E-043L Related Products

	DKFP-E22E-043L	DKFP	DKFP-B22B-D349	DKFP-C21C-D0115	DKFP-E21E-061Q	DKFP-E21E-D582	DKFP-E21E-1M27	DKFP-E22E-026Q	DKFP-E22E-0133
Description	2 ELEMENT, 3300 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 2000 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 39000 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 15000 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 1800 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 82000 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 27000 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 6800 uH, GENERAL PURPOSE INDUCTOR	2 ELEMENT, 33000 uH, GENERAL PURPOSE INDUCTOR
DC Resistance	0.062 Ω	0.2400 ohm	1.286 Ω	0.35 Ω	0.023 Ω	2.84 Ω	0.52 Ω	0.2 Ω	0.805 Ω
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 Cel	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	4 A	0.9000 A	0.4 A	1 A	6 A	0.5 A	1.4 A	2 A	1 A
self resonant frequency	0.6 MHz	1.6 MHz	0.15 MHz	0.25 MHz	0.7 MHz	0.07 MHz	0.16 MHz	0.5 MHz	0.13 MHz
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.001 MHz	1.00E-3 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal inductance(L)	3300 µH	-	39000 µH	15000 µH	1800 µH	82000 µH	27000 µH	6800 µH	33000 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3	e3
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	-	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	RADIAL	-	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Tolerance	50%	-	50%	50%	50%	50%	50%	50%	50%
Base Number Matches	1	-	1	1	-	-	1	1	-
